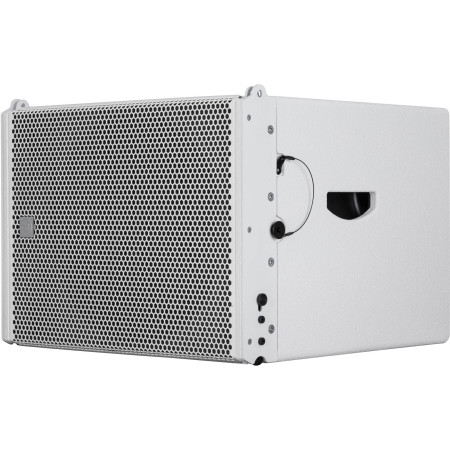

The HDL 12-AS W is the companion subwoofer for HDL 6-A. Housing a 12" woofer, the HDL 12-AS, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated. A special transparent-to-sound foam backing inside helps the further protection of the transducers from dust.
Features• 1400 Watt Peak power - 700 Watt RMS
• 131 dB max SPL
• 40 Hz - 120 Hz frequency response
• 1 x 12" Woofer
• Stereo crossover
• Switchable crossover frequencies
• Designed to compliment the HDL 6-A speaker system
• Polarity reverse switch
SpecificationsFrequency Response: 40 Hz 120 Hz
Woofer: 12'', 3.0'' v.c
Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Hi-Pass Frequencies: 40Hz
Low-Pass Frequencies: 80Hz, 110Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, EQ, Phase, Xover
Total Power: 1400 W Peak, 700 W RMS
Low frequencies: 1400 W Peak, 700 W RMS
Cooling: Convection
Connections: Powercon IN/OUT
CE marking: Yes
Cabinet/Case Material: Baltic birch plywood
Hardware: Array fittings, pole
Handles: 2 side
Grille: Steel
Color: White
Height: 379 mm / 14.92 inches
Width: 470 mm / 18.5 inches
Depth: 508 mm / 20 inches
Weight: 25 kg / 55.12 lbs
