The HDL18-AS is a compact, flyable high power subwoofer, designed to integrate seemlessly into a HDL 20-A flown array. The bass reflex design guarantees a deep, linear power response while the 4" voice coil vented design woofer offers the minimum of power compression. The system provides integrated mechanics compatible with the HDL 20-A array module.
• 2000 Watt Peak power - 1000 Watt RMS
• 135 dB max SPL
• 30 Hz - 140 Hz frequency response

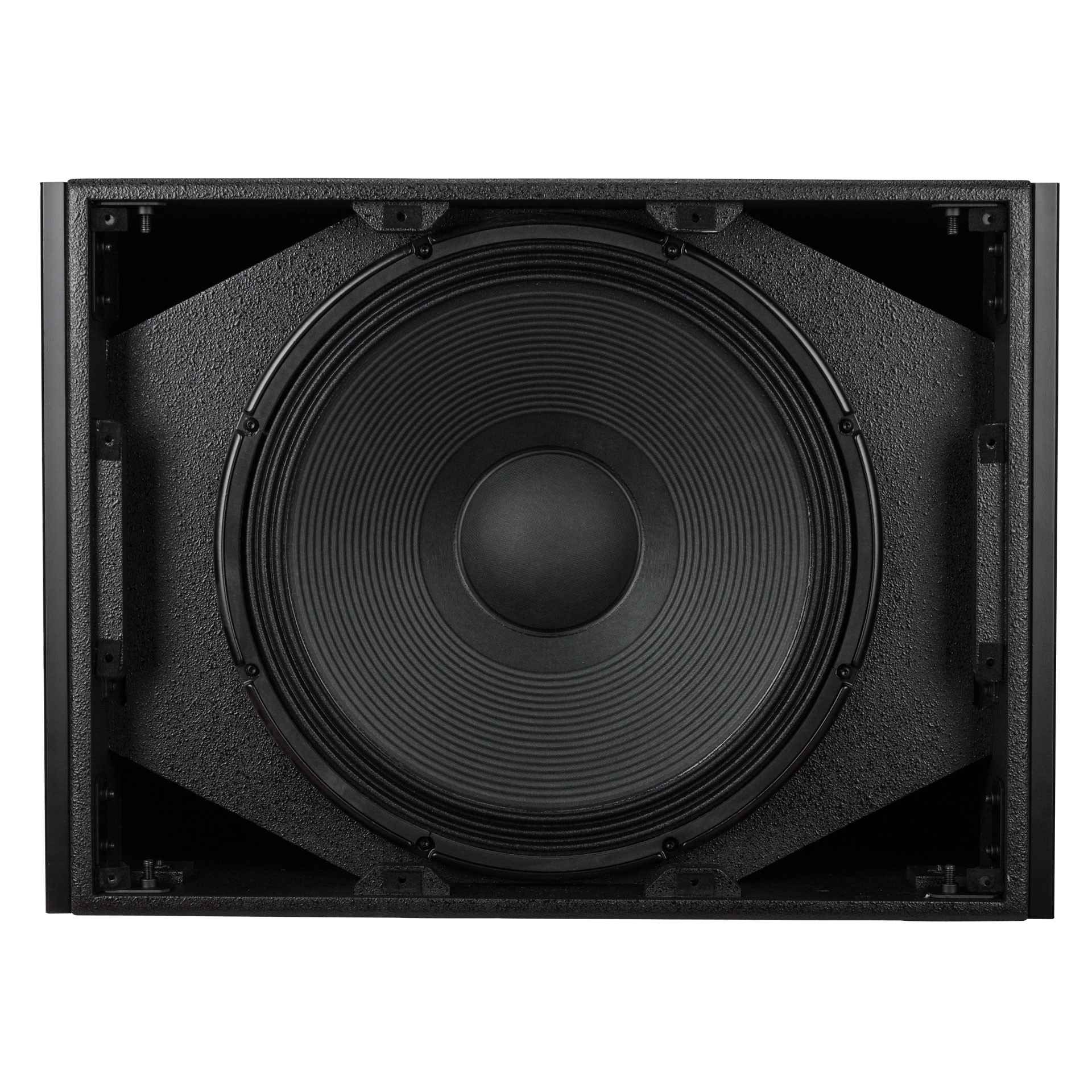

• 1 x 18" Woofer
• DSP controlled Input section with selectable presets
• Tour grade safe and solid variable mechanics, compatible with HDL 20-A
• Designed to compliment the HDL 20-A speaker system
• Baltic birch tour grade cabinet
Specifications
Frequency Response: 30 Hz 140 Hz
Max SPL @ 1m: 135 dB

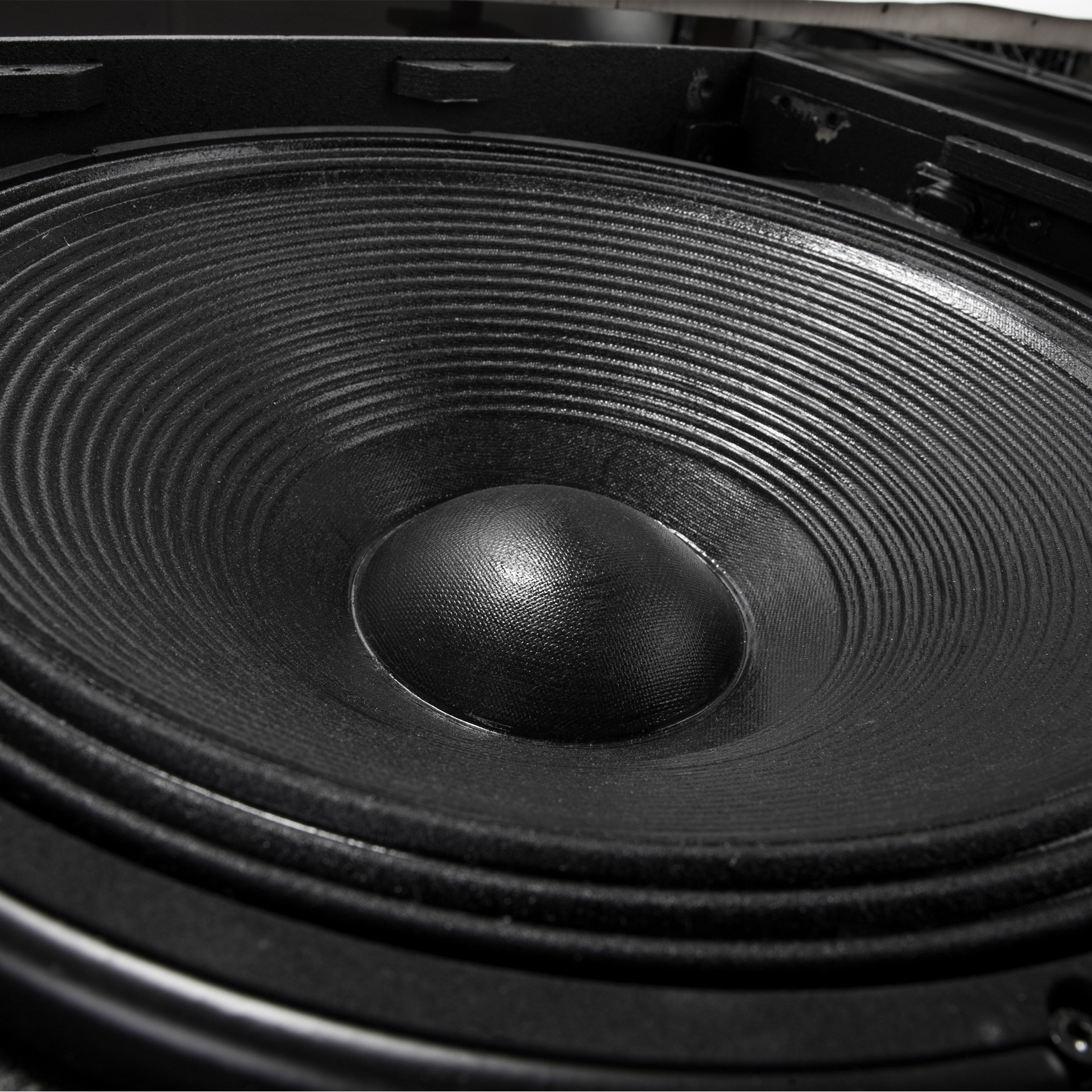

Woofer: 18'', 4.0'' v.c
Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: -2 dBu/+4 dBu
Hi-Pass Frequencies: 30Hz, 45Hz
Low-Pass Frequencies: 90Hz, 140Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, EQ shape, Xover
Total Power: 2000 W Peak, 1000 W RMS
Low frequencies: 2000 W Peak, 1000 W RMS
Cooling: Convection/Forced

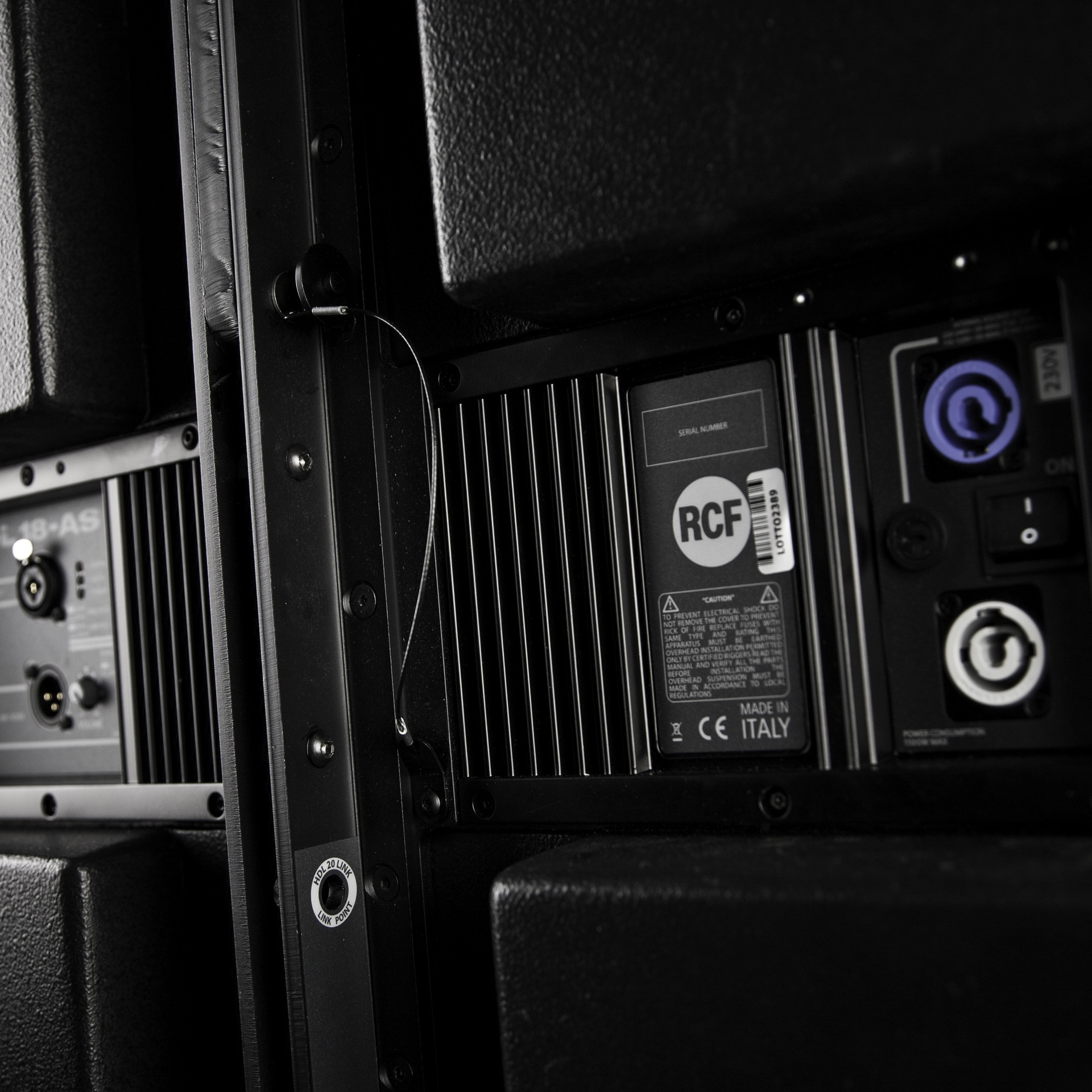

Connections: Powercon IN/OUT
CE marking: Yes
Cabinet/Case Material: Baltic birch plywood
Hardware: Rigging flyware, M20 insert
Handles: 2 side
Grille: Steel
Color: Black
Height: 512 mm / 20.16 inches
Width: 700 mm / 27.56 inches
Depth: 620 mm / 24.41 inches
Weight: 53 kg / 116.84 lbs
