The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers two powerful 6.0" woofers for a solid bass reproduction plus a high powered 1.7" voice coil compression driver mounted on a precise 100 x 10 waveguide delivers vocal clarity with high definition and an incredible dynamic.
• 1400 W, two-way amplification
• 131 dB max SPL
• 1.7" voice coil neodymium compression driver
• 2 x high power neodymium 6.0"woofers
• 48 kHz, 32 bit floating point DSP processing
• Symmetrical design
• Extremely low weight
• FiRPHASE processing
CUSTOM DESIGNED WAVEGUIDEThe custom designed waveguide provides a precise coverage of 100 x 10 delivering a superb, linear high frequency response.
Thanks to its large format compression driver on a waveguide, the HDL 6-A offers superior intelligibility over distance.
SYMMETRICAL DESIGNDue to its symmetrical design the HDL 6-A produces constant coverage without break up or attenuation.
The HDL 6-A tour grade system comes in a structurally wooden reinforced composite polypropylene enclosure, and is equipped with two aluminium rear handles for portability.
The RCF HDL will maintain its intelligibility, definition and signal strength while competitive models will attenuate and break up before the sound reaches its throw distance.
Specifications
Frequency Response: 65 Hz 20000 Hz
Max SPL @ 1m: 131 dB
Horizontal coverage angle: 100
Vertical coverage angle: 10
Compression Driver: 1.0'' neo, 1.75'' v.c
Woofer: 2 x 6.0'' neo, 2.0'' v.c
Input signal: bal/unbal
Input connectors: XLR
Output connectors: XLR
Input sensitivity: +4 dBu
Crossover frequencies: 900 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: HF correction
Total Power: 1400 W Peak, 700 W RMS
High frequencies: 400 W Peak, 200 W RMS
Low frequencies: 1000 W Peak, 500 W RMS
Cooling: Convection

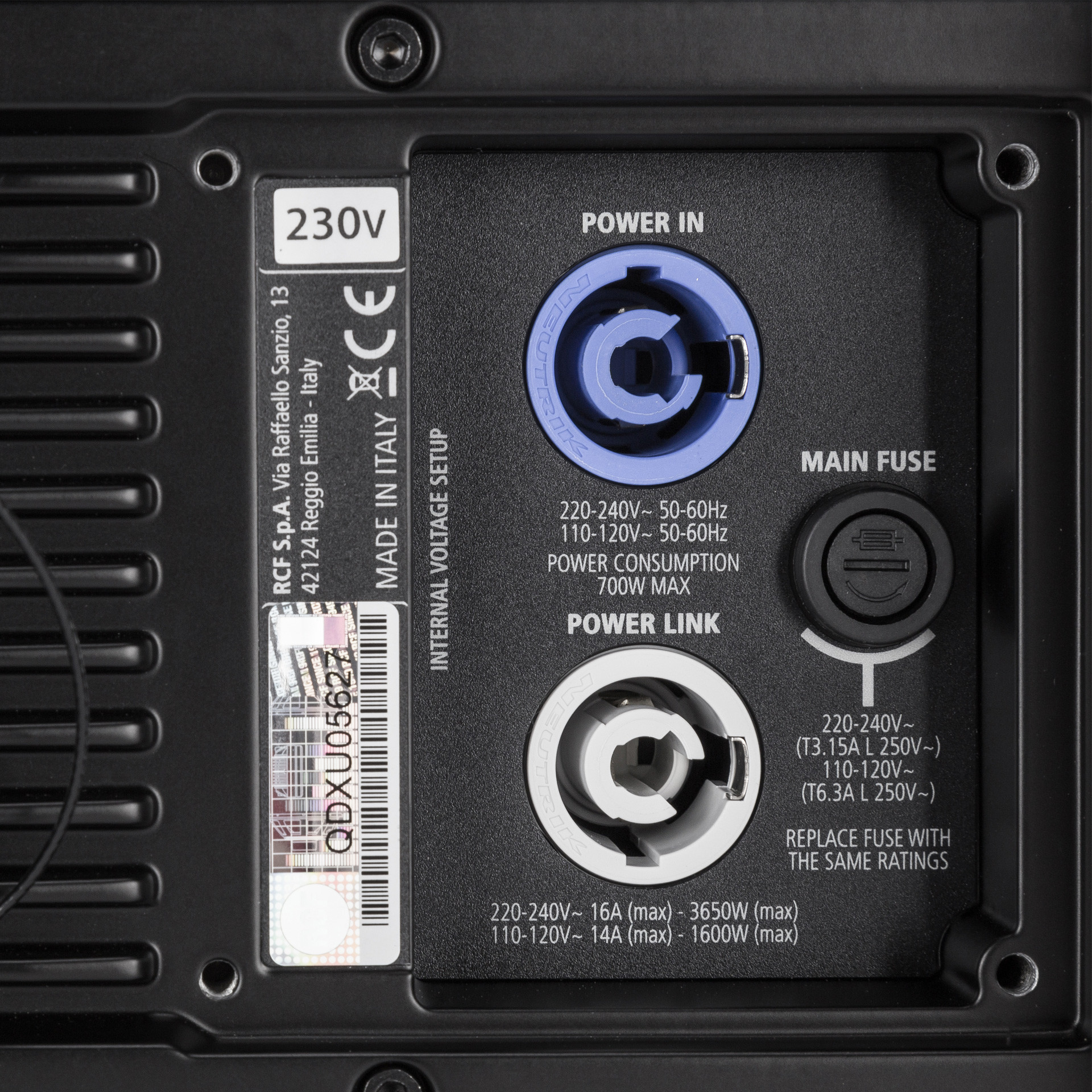

Connections: Powercon IN/OUT
CE marking: Yes
Cabinet/Case Material: PP Composite
Hardware: Array fittings
Handles: 2 Back
Grille: Steel
Color: Black
Height: 237 mm / 9.33 inches
Width: 470 mm / 18.5 inches
Depth: 377 mm / 14.84 inches
Weight: 11.6 kg / 25.57 lbs
