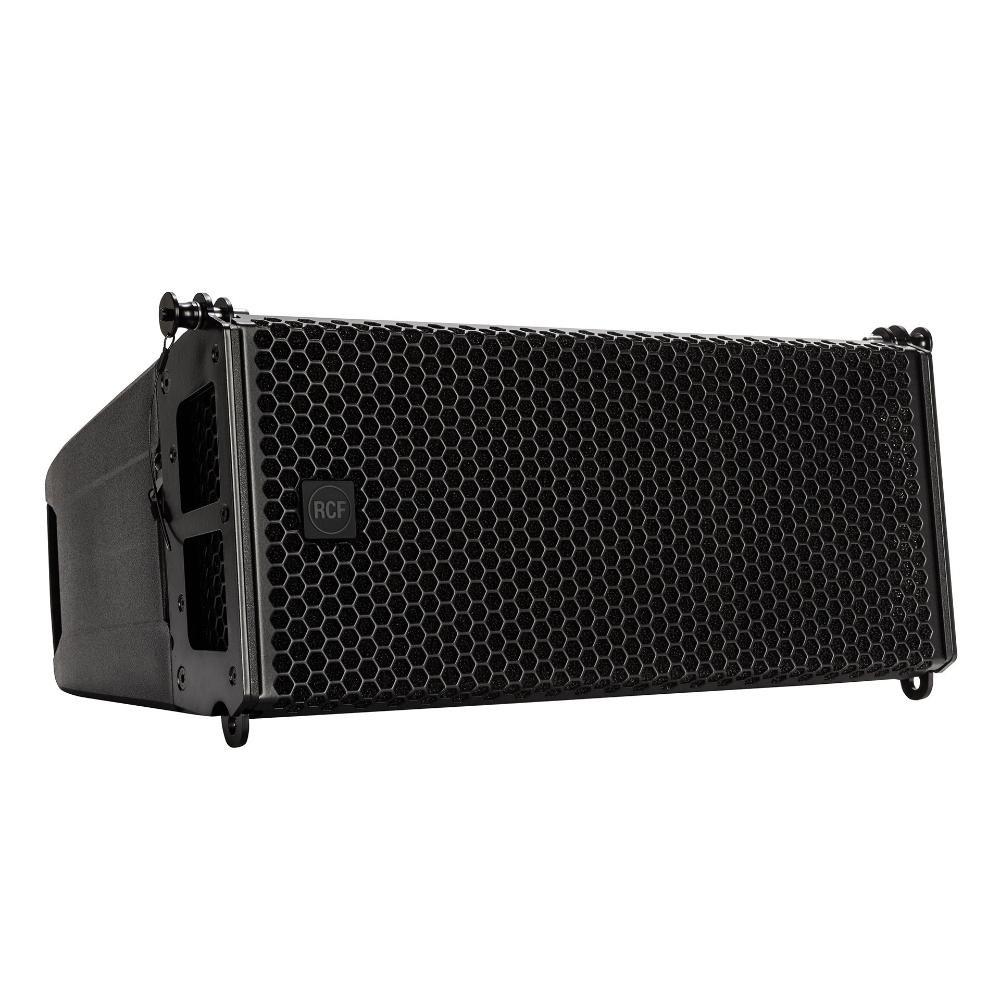

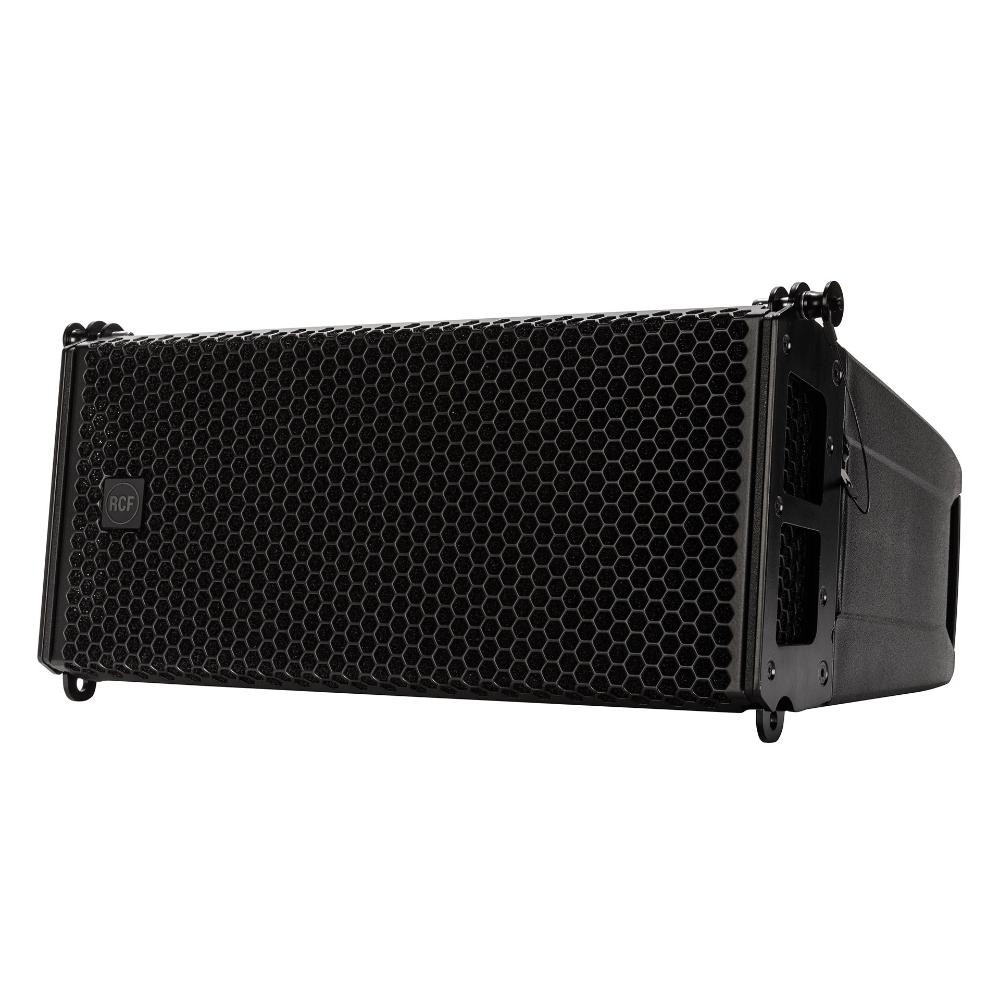

HL 6 is two-way full range system, ideal when line array performance is needed, and a fast and easy set-up is a must. The concept of this speaker derives from the touring industry, bringing in a compact cabinet all the experience of RCF professional sound. HL 6 features state-of-the art RCF transducers, two powerful 6.0" woofers for a solid bass reproduction, plus a high powered 1.75" voice coil compression driver mounted on a precise 100 x 10 waveguide to deliver vocal clarity with high definition and incredible dynamic. Due to its symmetrical design the HL 6 produces constant coverage without break up or attenuation, maintaining intelligibility, definition, and signal strength over distance. HL 6 comes in a structurally wooden reinforced composite polypropylene enclosure, and it is equipped with two rear handles for portability.
Features• 250 W RMS power handling
• 131 dB max SPL
• 65 20000 Hz frequency range
• 100 x 10 coverage angles
• Fully equipped with neodymium transducers
• Horn Loaded symmetric design
• Wooden reinforced polypropylene enclosure
• Steel grille with clothing
• 2 x SPEAKON connectors
Legendary SubwoofersThe RCF HL 6 features RCF transducers with neodymium magnets. RCF's experienced engineering teams have specially developed and matched each component. An entire set of protections preserve product life and reliability.
Constant Directivity WaveguideThe custom-designed waveguide allows a precise coverage of 100 x 10, while also delivering a completely linear high-frequency response. The constant directivity waveguide delivers consistent coverage from 900 Hz to the highest audible frequencies.
Perfect for InstallationThe passive architecture makes the HL 6 one of the lightest line array modules on the market. Combined with flexible rigging options and a wide range of accessories, it's the ideal line array for installation both in corporate environments or music venues. HL 6 provides plenty of sound pressure and clarity that can replace antiquated, oversized sound systems with improved acoustic performance.
Advanced DesignThe integrated fittings are both easy to use and reconfigurable, allowing the system engineer to create J-shaped and spiral arrays starting at 1 angle.
The hardware is designed for easy and fast setup. Up to 16 HL 6 modules can be fastened on a single flybar.

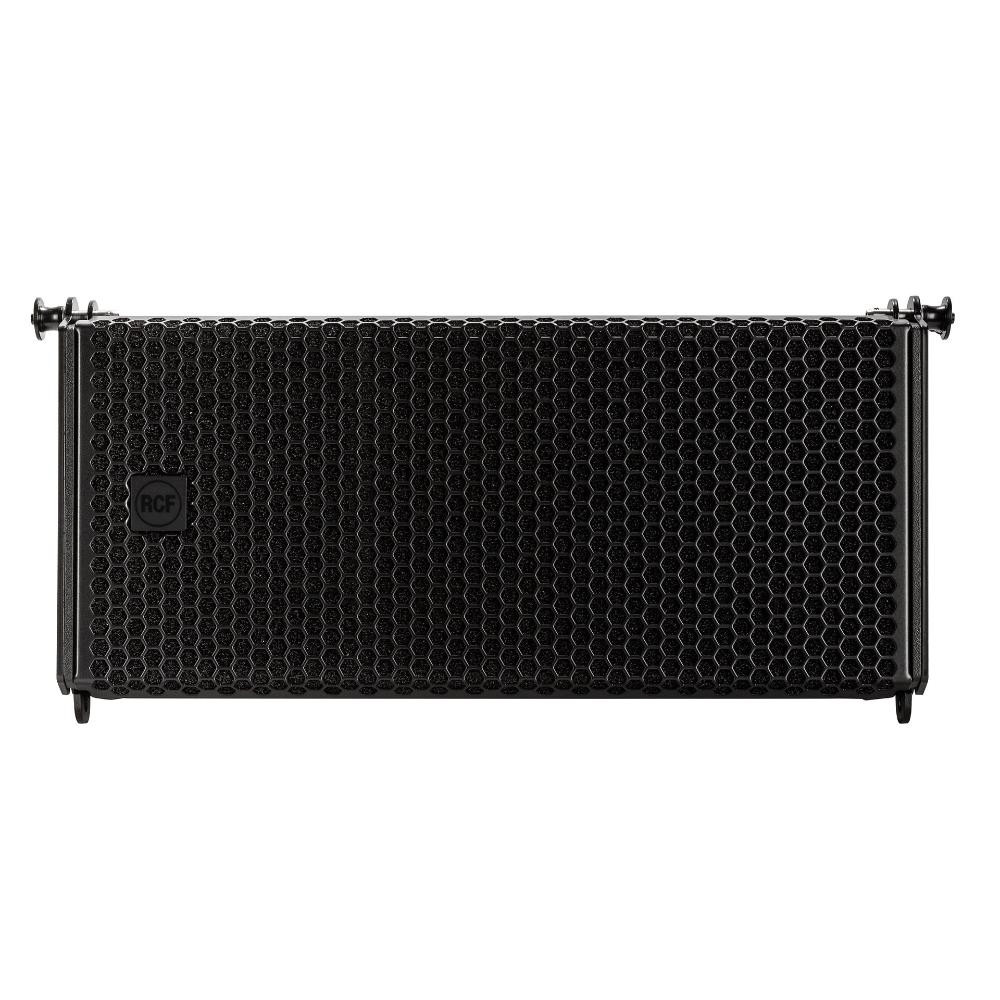

The heavy-duty front grille is powder-coated. A special transparent-to-sound foam backing inside helps to further protect the transducers from dust and debris.
The HL6's Perfect Low-Frequency CompanionPerfect for keeping the floor clear and maximizing the efficiency and coherence of the array, the low-frequency companion designed for the HL 6 is the high-performance flyable single 15" HL 35-S. The integrated fittings are both easy to use and reconfigurable, allowing the system engineer to extend the HL 6 lower range with one or multiple HL 35-S modules. It can be used attached to the flybar, on the floor, or stacked with the HL 6 on top. HL 35-S provides sound pressure and clarity that can replace antiquated, oversized sound systems with improved acoustic performance.
SpecificationsAcoustical SpecificationsFrequency Response: 65 Hz 20000 Hz
Max SPL @ 1m: 131 dB
Horizontal coverage angle: 100
Vertical coverage angle: 10
Directivity Index Q: 16
TransducersCompression Driver: 1.0'' neo, 1.75'' v.c
Woofer: 2 x 6.0'' neo, 2.0'' v.c

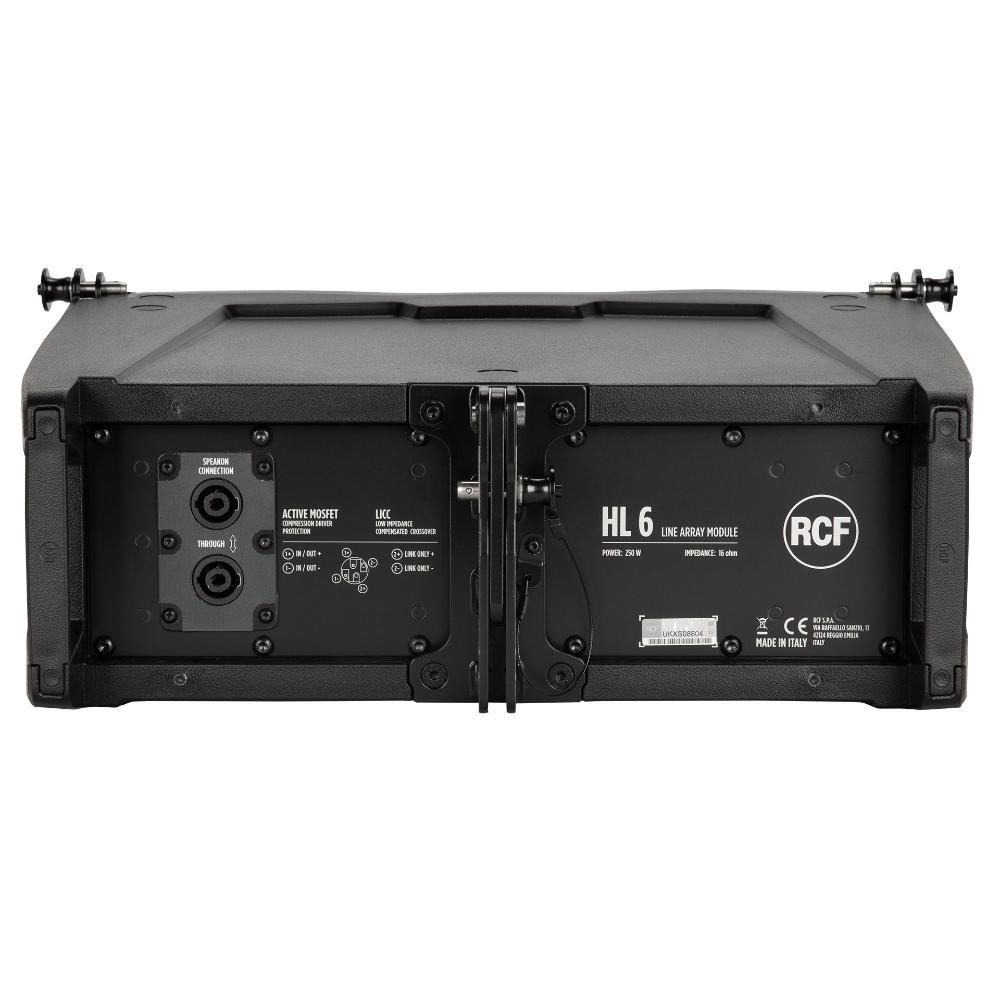

Input/Output SectionInput connectors: Speakon
Output connectors: Speakon
Physical SpecificationsCabinet/Case Material: PP Composite
Hardware: Integrated array mechanics
Handles: 2 on the rear panel
Grille: Steel
Color: Black - RAL 9005
Power SectionAmplification: Full Range
Nominal Impedance: 16 ohm
Power Handling: 250 W
Peak Power Handling: 1000 W PEAK
Recommended Amplifier: 500 W
Protections: Dynamic Active Mosfet
Crossover Frequencies: 900 Hz
Standard ComplianceSafety Agency: CE Compliant
SizeHeight: 237 mm / 9.33 inches
Width: 470 mm / 18.5 inches
Depth: 377 mm / 14.84 inches
Weight: 11.8 kg / 26.01 lbs
