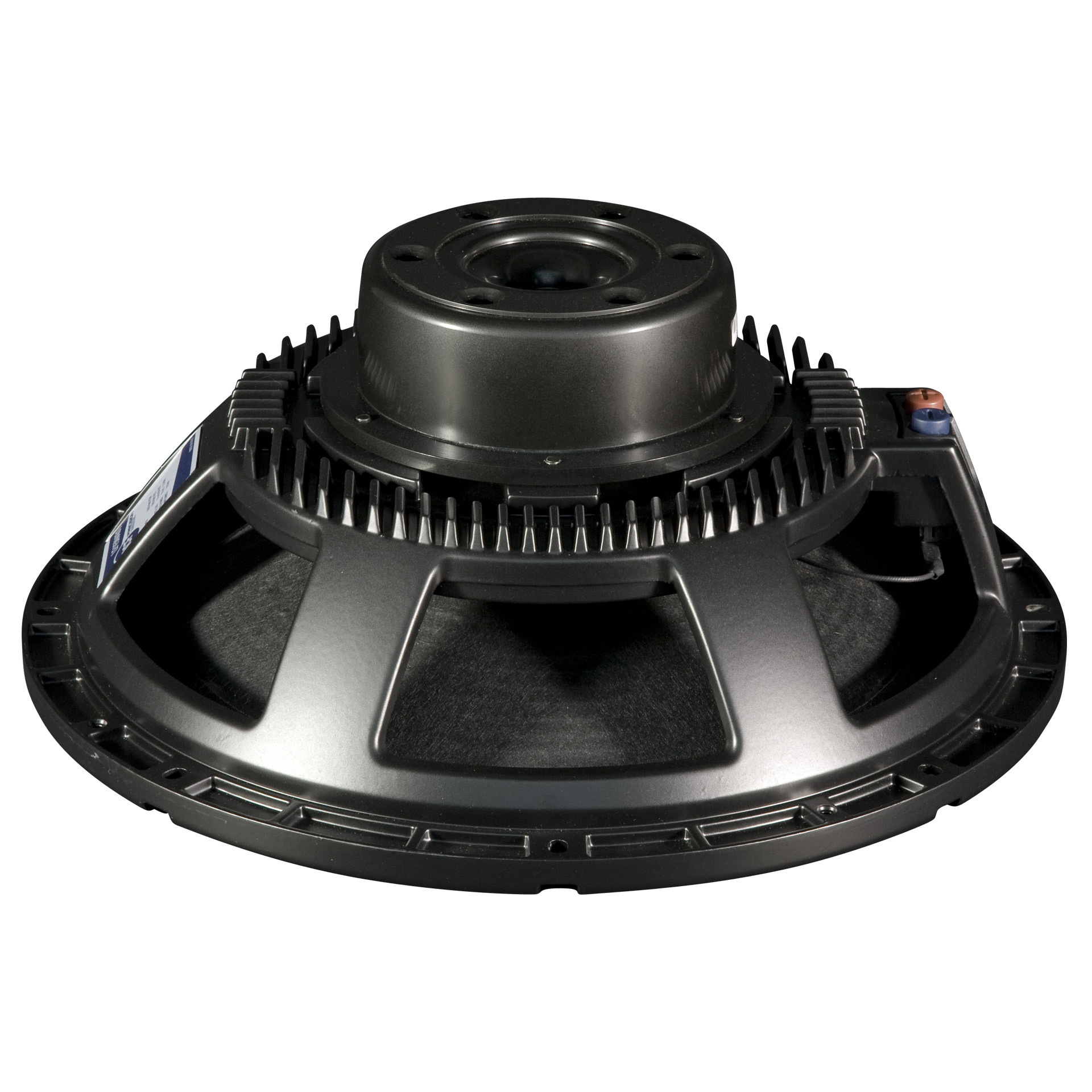

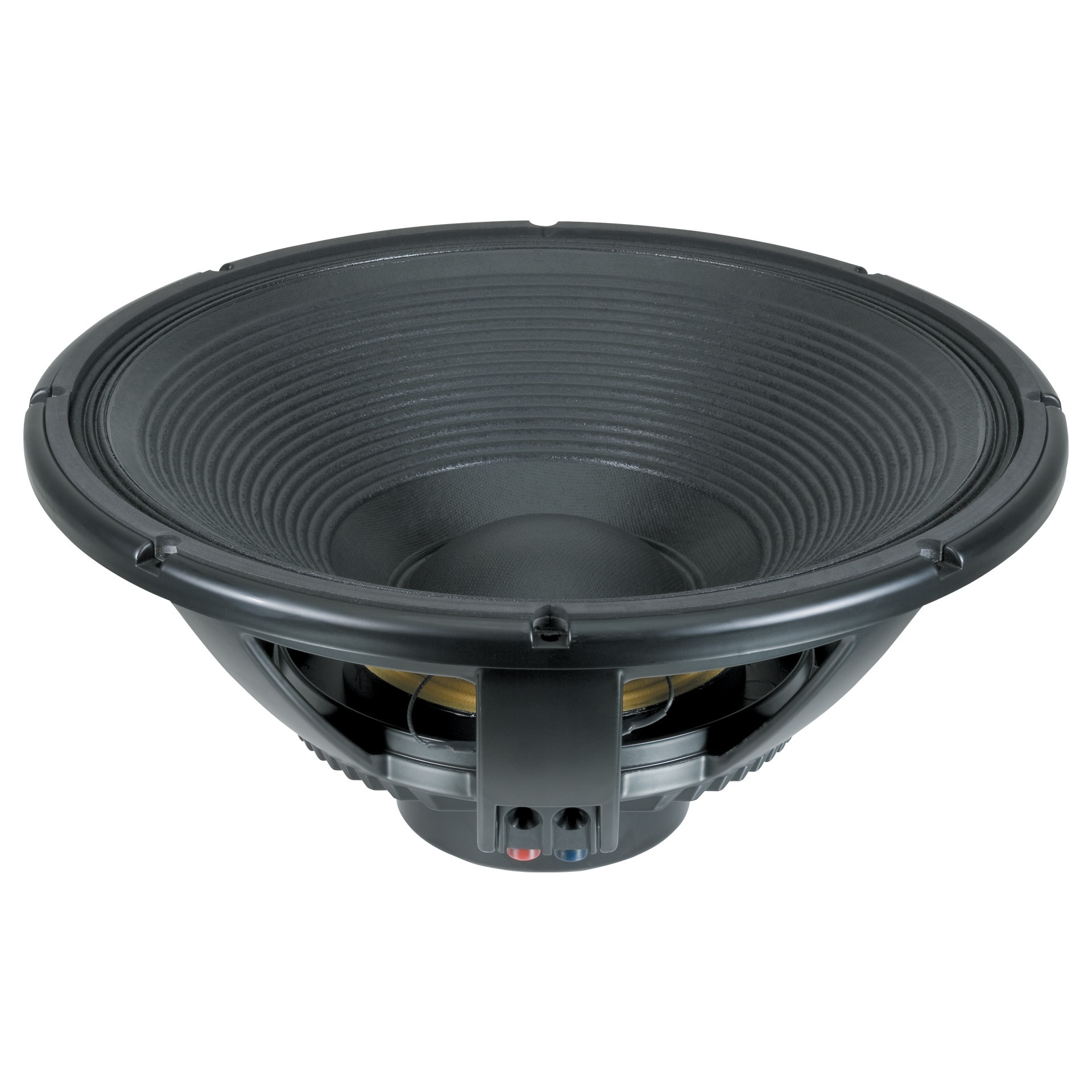

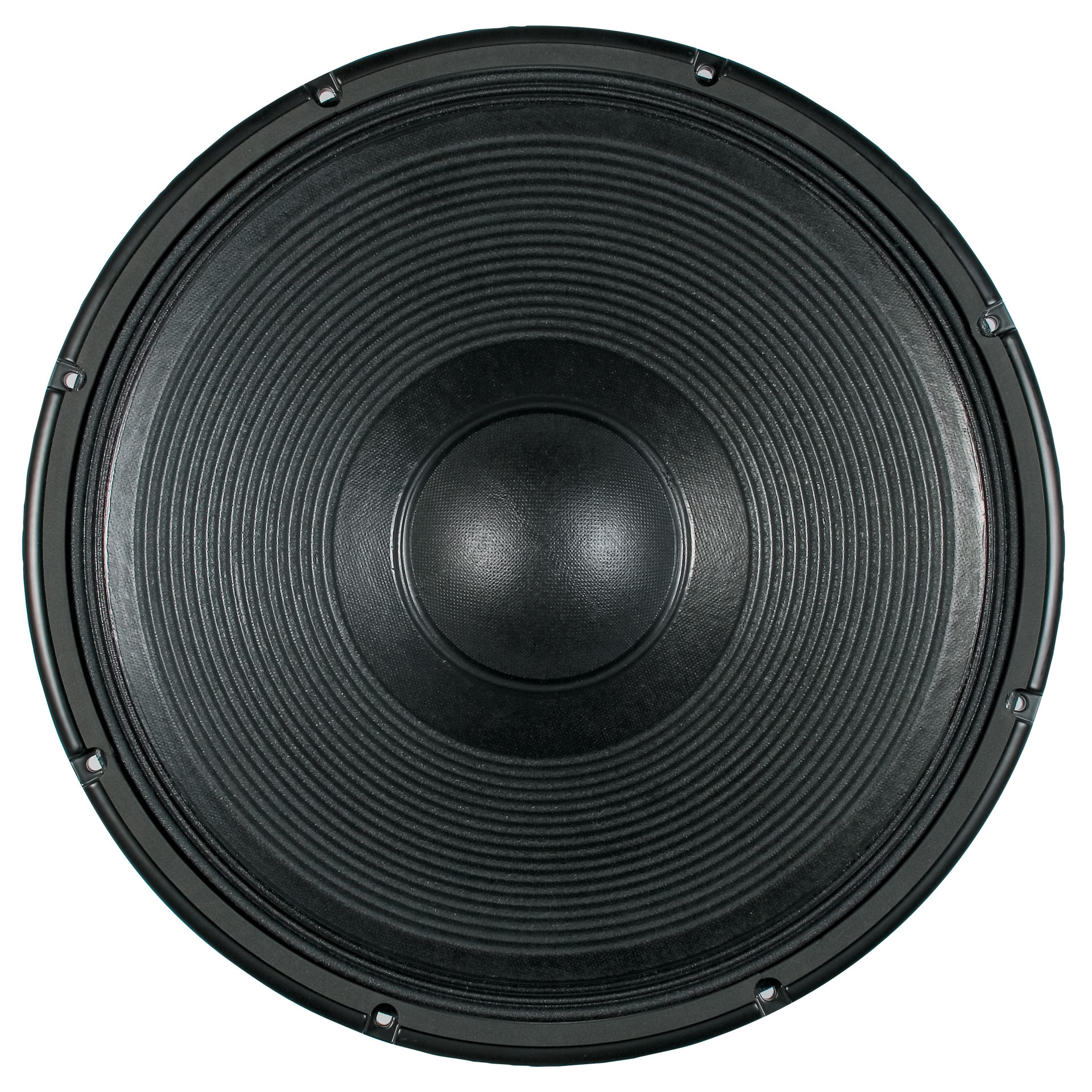

Incredibly linear frequency response characteristics, the highest power handling of any comparable 15-inch neodymium transducer,the lower power compression. The LF15N401 uses a fibre loaded cone assembly along with a high excursion triple roll,constant geometry surround. This combination provides remarkable strength and a peak to peak maximum excursion of 52mm. The unique Dual-forced air venting system guarantee a very efficient voice coil ventilation for minimum power compression and higher power handling.
• 4-inch, fiberglass inside/outside copper voice coil
• 1800W continuous program power handling
• 97 dB Sensitivity
• 35 Hz 1.5 kHz Frequency range
• Dual-forced air ventilation and 15mm top plate for minimum power compression
• Dual spider design with silicon based dampening control
• Triple-roll surround and corrugated straight cone geometry
General specifications
Cone Design: Straight
Dual-force air ventilation: Yes
Effective piston diameter: 340 mm / 13.39 inch
Frequency range: 35 - 1500 Hz
Kind of layers: inside/outside
Magnets: Neodymium
Max. Excursion Before Damage: 52 mm / 2.05 inch
Minimim Impedance: 6 ohm
Nominal Diameter: 15 inch / 381 mm
Number of layers: 2
Power handling capacity: 900 W
Program Power: 1800 W
Rated Impedance: 8 ohm
Sensitivity: 97 dB
Spider: Dual with silicon based damping control
Surround Design: Triple roll
Surround Material: Polycotton
Top Plate Thickness: 15 mm / 0.59 inch
Voice Coil Diameter: 4.0 inch / 102 mm
Voice Coil Material: Copper
Voice Coil Winding Material: 25 mm / 0.98 inch
Mounting Information
Bolt circle diameter: 371-376 mm / 14.61-14.8 inch
Bolt hole diameter: 7 mm / 0.28 inch
Front mount baffle cut-out: 354 mm / 13.94 inch
Overall diameter: 393 mm / 15.47 inches
Rear mount baffle cut-out: 354 mm / 13.94 inch
Volume occupied by the driver: 3.8 liters / 0.15 ft3
Size
Diameter: 393 mm / 15.47 inches
Height: 160 mm / 6.3 inches
Weight: 8.77 kg / 19.33 lbs
Standard compliance
CE marking: Yes
Thiele - small parameters
BL factor (BL): 27.80 T x m
DC resistance (Re): 5.10 ohm
Effective moving mass (Mms): 158 gr
Effettive piston area (Sd): 0.09 m2
Electrical factor (Qes): 0.23 Qes
Equivalent Cas air loaded (Vas): 160 liters
Half-space efficency (Eff): 2.64%
Max. linear excursion (Xmax): 9 mm
Mechanical factor: 5.80 Qms
Resonance frequency (Fs): 34 Hz
Total factor: 0.22 Qts
Voice coil inductance @ 1kHz (Le1k): 2.50 mH
