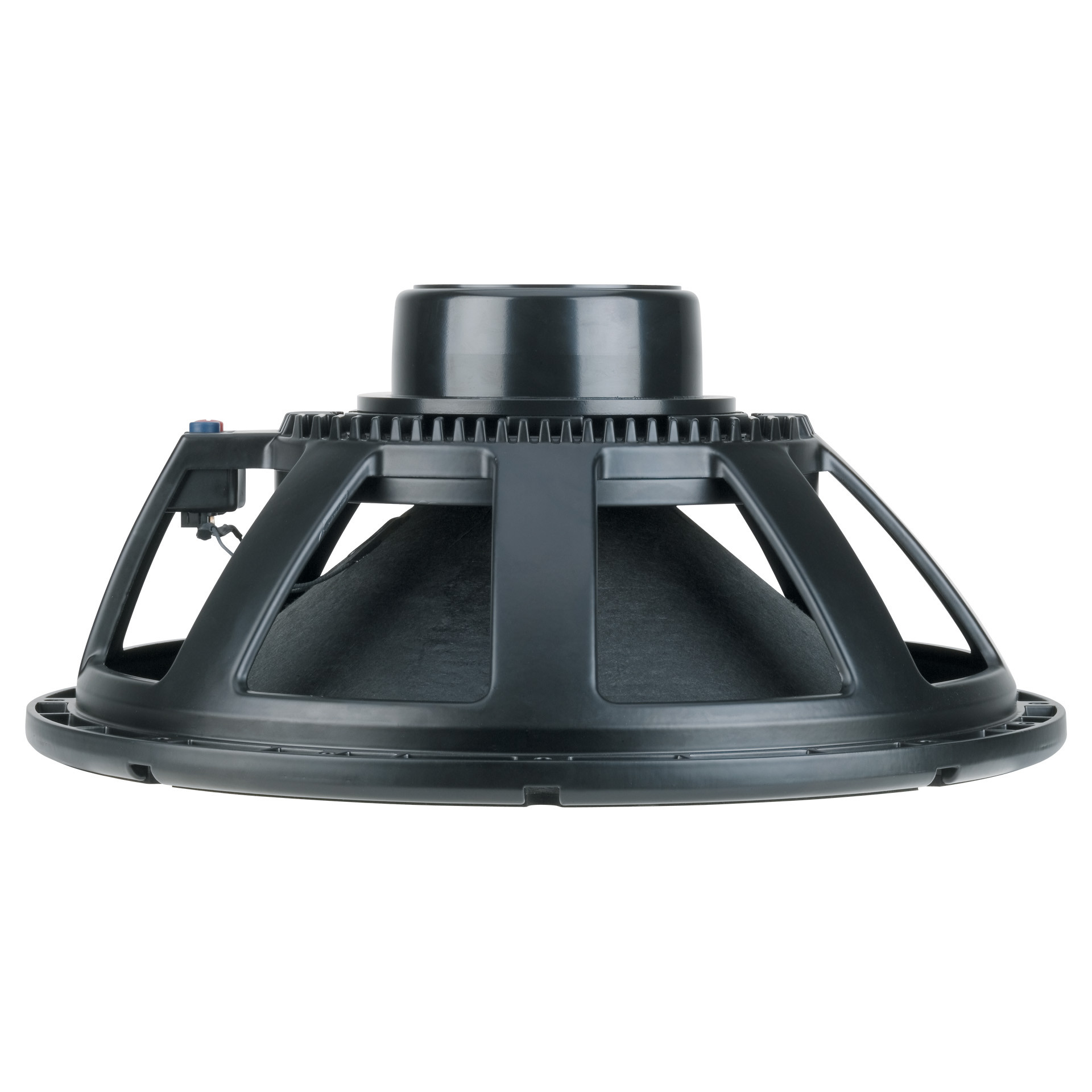

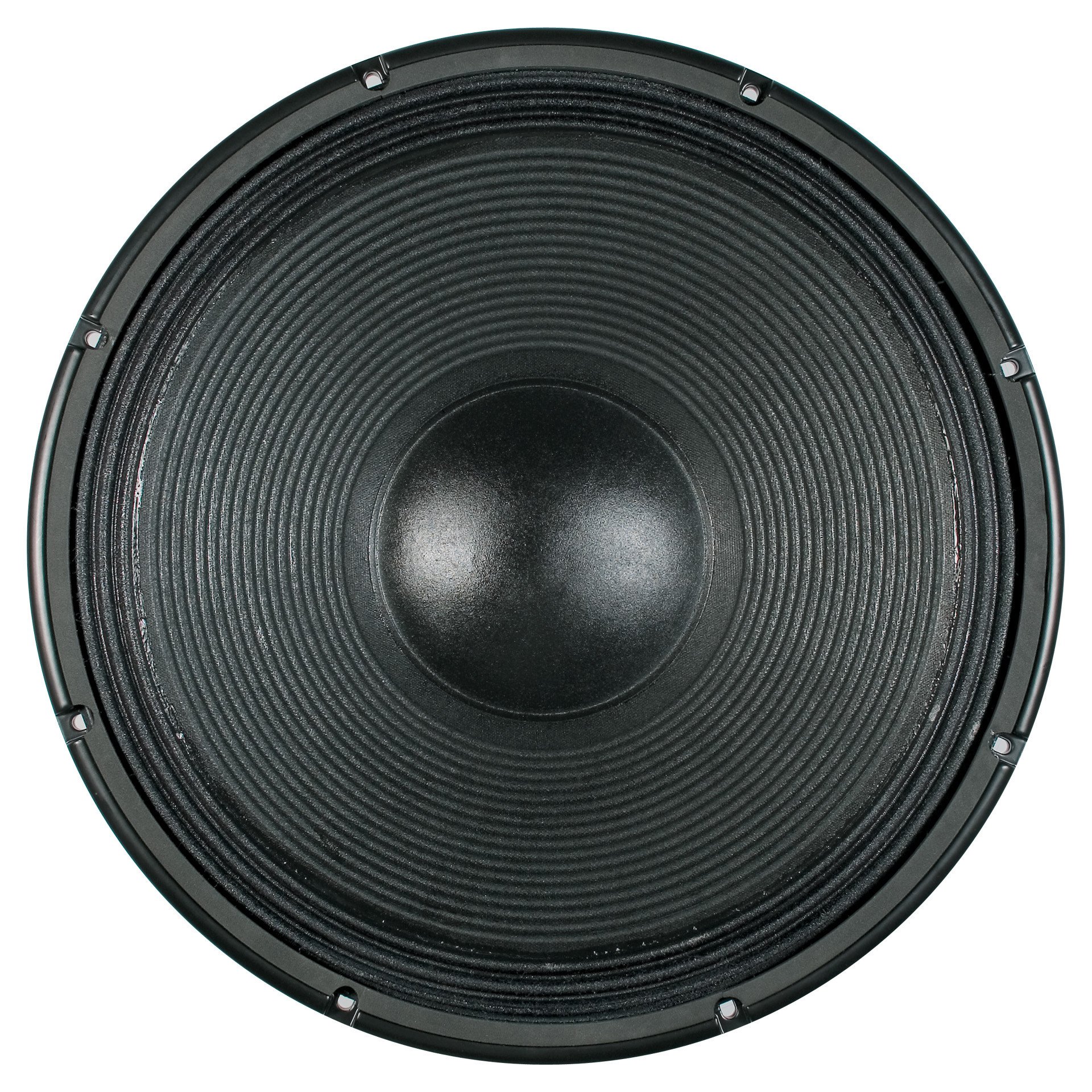

Incredibly linear frequency response characteristics,the highest power handling of any comparable 18-inch neodymium transducer, the lowest power compression. The LF18N401 uses a fibre loaded cone assembly along with a high excursion triple roll,constant geometry surround. This combination provides remarkablestrength venting system guarantee a very efficient voice coil ventilation for minimum power compression and higher power handling.
• 4 - inch, fiberglass inside-outside copper voice coil
• 2400 Watt continuous program power handling
• 98 dB Sensitivity
• 30 Hz - 1 kHz Frequency range
• Dual-forced air ventilation and 15mm top plate for minimum power compression
• Dual spider design with silicon based dampening control
• Triple-roll surround and corrugated straight cone geometry
General specifications
Cone Design: Straight
Dual-force air ventilation: Yes
Effective piston diameter: 395 mm / 15.55 inch
Frequency range: 30 - 1000 Hz
Kind of layers: inside/outside
Magnets: Neodymium
Max. Excursion Before Damage: 52 mm / 2.05 inch
Minimim Impedance: 6 ohm
Nominal Diameter: 18 inch / 457 mm
Number of layers: 2
Power handling capacity: 1200 W
Program Power: 2400 W
Rated Impedance: 8 ohm
Sensitivity: 98 dB
Spider: Single with silicon based damping control
Surround Design: Triple roll
Surround Material: Polycotton
Top Plate Thickness: 15 mm / 0.59 inch
Voice Coil Diameter: 4.0 inch / 102 mm
Voice Coil Material: Copper
Voice Coil Winding Material: 25 mm / 0.98 inch
Mounting Information
Bolt circle diameter: 442-447 mm / 17.4-17.6 inch
Bolt hole diameter: 7 mm / 0.28 inch
Front mount baffle cut-out: 424 mm / 16.69 inch
Overall diameter: 465 mm / 18.31 inches
Rear mount baffle cut-out: 424 mm / 16.69 inch
Volume occupied by the driver: 5.5 liters / 0.22 ft3
Size
Diameter: 465 mm / 18.31 inches
Height: 204 mm / 8.03 inches
Weight: 9.5 kg / 20.94 lbs
Standard compliance
CE marking: Yes
Thiele - small parameters
BL factor (BL): 27.80 T x m
DC resistance (Re): 5.10 ohm
Effective moving mass (Mms): 201 gr
Effettive piston area (Sd): 0.12 m2
Electrical factor (Qes): 0.27 Qes
Equivalent Cas air loaded (Vas): 257 liters
Half-space efficency (Eff): 3.01%
Max. linear excursion (Xmax): 9 mm
Mechanical factor: 6.50 Qms
Resonance frequency (Fs): 32 Hz
Total factor: .26 Qts
Voice coil inductance @ 1kHz (Le1k): 2.50 mH
