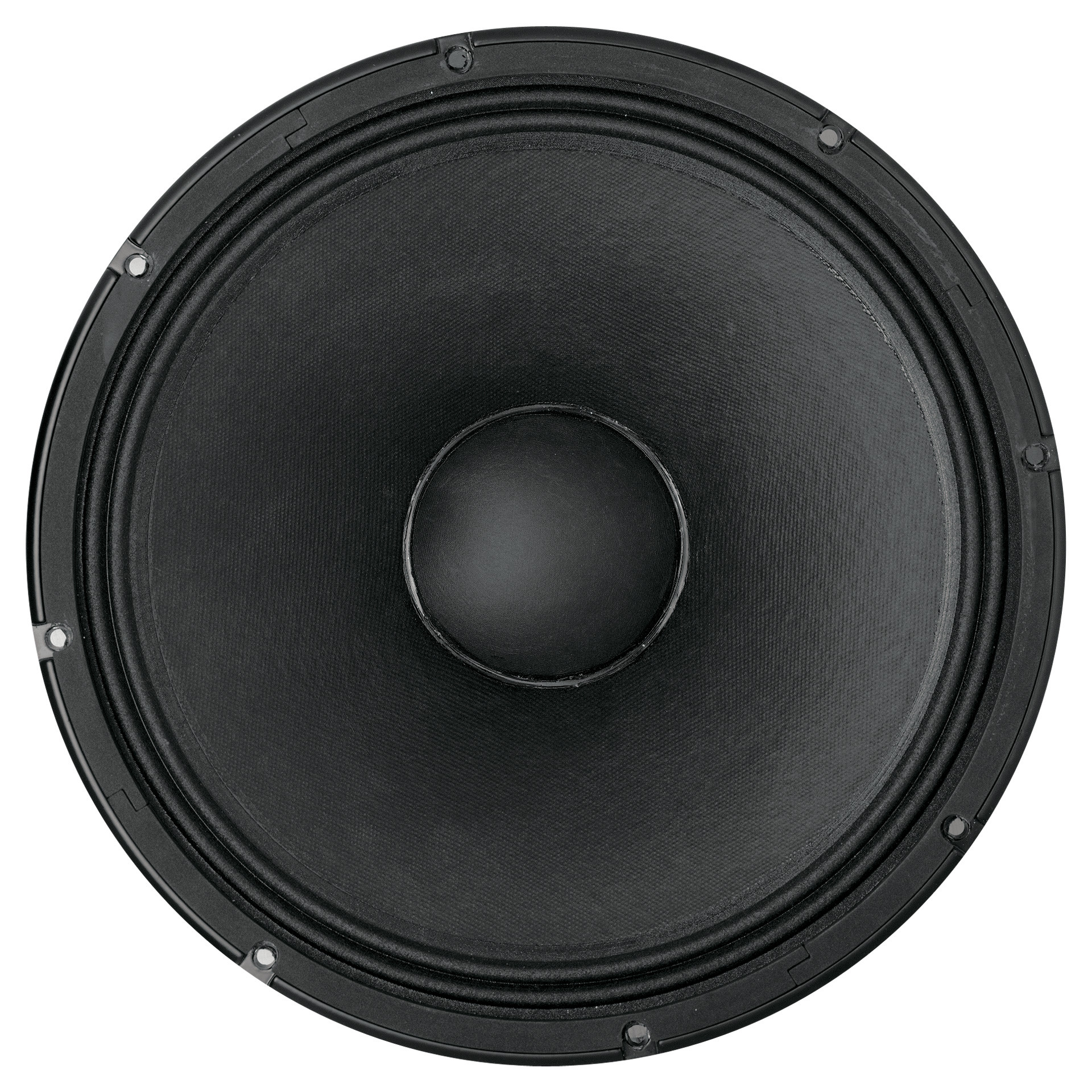

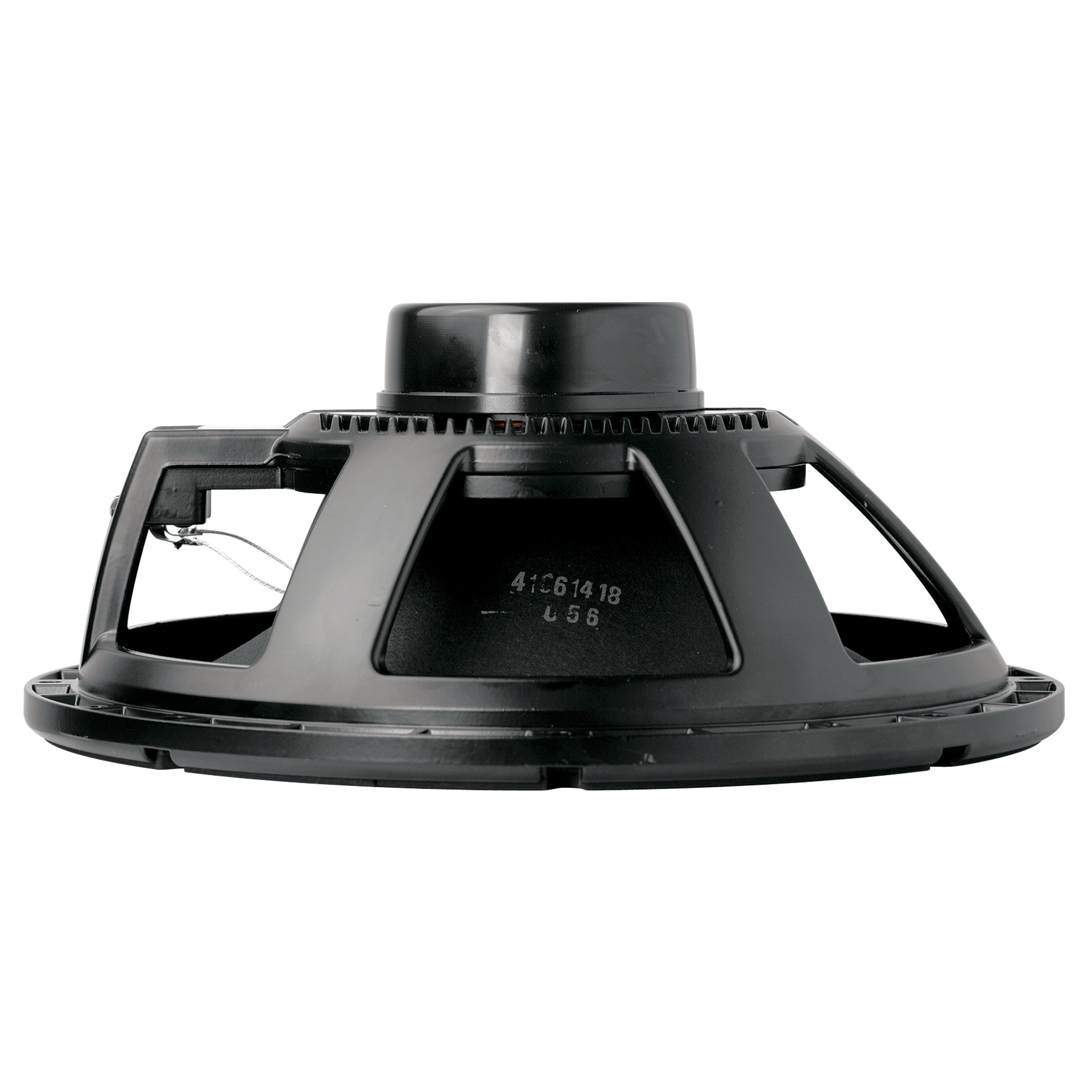

This MB15N351 is designed to provide an excellent linearity in the frequency response with low distortion. The transducer is built around a very stronger neodymium magnetic structure and a new 3,5" voice coil, this combination provides to increase the power handling especially in comparison a standard 3" voice coil. The unique Dual-forced air venting system guarantee a very efficient voice coil ventilation for minimize the power compression at the higher power handling.
• 3.5-inch, inside/outside copper voice coil
• 1300W continuous program power handling
• 100 dB Sensitivity
• 40 Hz 3 kHz Frequency range
• Dual-forced air ventilation for minimum power compression
• Dual spider design with silicon based dampening control
General specifications
Cone Design: Curved
Dual-force air ventilation: Yes
Effective piston diameter: 330 mm / 12.99 inch
Frequency range: 40 - 3000 Hz
Kind of layers: inside/outside
Magnets: Neodymium
Max. Excursion Before Damage: 39 mm / 1.54 inch
Minimim Impedance: 6 ohm
Nominal Diameter: 15 inch / 381 mm
Number of layers: 2
Power handling capacity: 650 W
Program Power: 1300 W
Rated Impedance: 8 ohm
Sensitivity: 100 dB
Spider: Dual with silicon based damping control
Surround Design: M-roll
Surround Material: Polycotton
Top Plate Thickness: 11 mm / 0.43 inch
Voice Coil Diameter: 3.5 inch / 89 mm
Voice Coil Material: Copper
Voice Coil Winding Material: 17 mm / 0.67 inch
Mounting Information
Bolt circle diameter: 371-376 mm / 14.61-14.8 inch
Bolt hole diameter: 7 mm / 0.28 inch
Front mount baffle cut-out: 354 mm / 13.94 inch
Overall diameter: 393 mm / 15.47 inches
Rear mount baffle cut-out: 354 mm / 13.94 inch
Volume occupied by the driver: 3.8 liters / 0.15 ft3
Size
Diameter: 393 mm / 15.47 inches
Height: 180 mm / 7.09 inches
Weight: 5.16 kg / 11.38 lbs
Standard compliance
CE marking: Yes
Thiele - small parameters
BL factor (BL): 22.50 T x m
DC resistance (Re): 5.60 ohm
Effective moving mass (Mms): 80 gr
Effettive piston area (Sd): 0.09 m2
Electrical factor (Qes): 0.24 Qes
Equivalent Cas air loaded (Vas): 191 liters
Half-space efficency (Eff): 5.68%
Max. linear excursion (Xmax): 6 mm
Mechanical factor: 4.00 Qms
Resonance frequency (Fs): 42 Hz
Total factor: 0.22 Qts
Voice coil inductance @ 1kHz (Le1k): 1.65 mH
