VOYAGER 1 analyzes audio signals from vinyl, CD or tape and calculates the BPM of two tracks simultaneously. Both BPMs are displayed but, more importantly, the beat information from one channel is used to generate a MIDI Clock signal, which runs in synchronization with the audio track. This enables any connected MIDI sequencer (Roland MC303/ MC505 etc. or any computer /sequencer software set-up) to automatically lock-in and track the tempo of the audio.
• Performance: BPM Range = 60 - 230 BPM Audio/MIDI synchronisation delay = less than 3mS
• Lock-in time = 2 to 4 sec's (from introduction of
readable beat information).
• Displays: 2 x 7 Segments, 3 character (LED). 1 x MIDI Clock rotating display (8 x LED's). Beat Tracking indicator (3 x LED's).
• Controls: Channel 1 select, Channel 2 select, Run/Pause, Cue, Beat. One Re-Set, Tap (Stop) Tempo edit, Sync Pull/Push adjust.
• MIDI Implementation: System Real Time/Clock commands = Transmitted.
• Connectors: Channel 1 Input/Output, Channel 2 Input/Output, MIDI Clock Out, AC adaptor.
• Power Supply: 9vDC, 250mA (RED PSU) included.
• Dimensions/Weight 180(W) x 132(D) x 50(H) mm, 1.65 Kg.
• Intelligent Software: Constantly analyses and
calculates the BPM of two audio inputs (vinyl or CD/tape).
• Channel 1 & 2 Displays: The BPM readings from the audio inputs are shown clearly on 3 digit
• Run/Pause Button: Controls the running status of the external MIDI sequencer.
• Cue Button: Pre-sets the VOYAGER 1 to the BPM of your next audio track prior to performance.
• The MIDI sequencer and audio track can then be started simultaneously from a predetermined cue point in the audio track.
• Beat One Reset Button: Re-aligns the start point (beat1/bar1) of the current pattern in the MIDI sequencer with any chosen point in the audio track.
• MIDI Clock Display: 8 LED display rotates' at the detected BPM rate when the VOYAGER 1 is in RUN mode.
• Beat Tracking Indicator: 3 LED display shows any beat synchronisation adjustments made by the VOYAGER 1.
• Tap (Stop) Button: Used to manually enter a BPM and/or STOP the MIDI Clock.
|Product Condition||New - On Clearance|

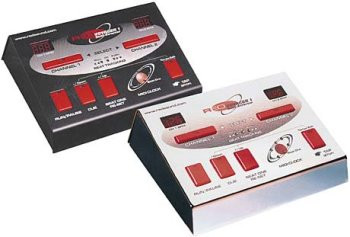

Red Sound VOYAGER-1 Dual Beat Extractor, New Reviews
