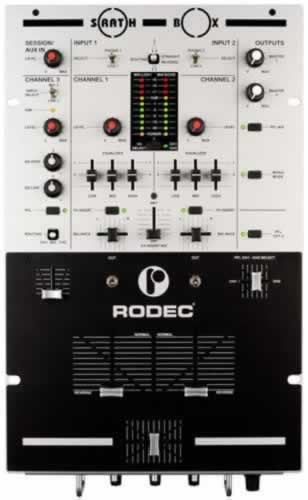

Sound and build quality are second to none as is to be expected from Rodec. This is one serious turntablist mixer!
FEATURES:• 10 inch width - 9 units - mixing panel.
• Front panel in elegant Titanium paint.
• Aluminium anodised smooth scratchplate, no obstructions by any paint of text print on the panel.
• Front handles to carry the mixer and to avoid unwanted moving of the buttons.
• Same height as Technics SL1210-MKII turntable.
• 4 Input channels:
• 2 Phono inputs on gold plated RCA connectors.
• 4 Line inputs CH1 + CH2 + CH3/FX-return + CH4/Session/Backtape-in.
• 1 Microphone input on COMBO (XLR-JACK) connector.
• Outputs: 2 Master outputs on RCA connectors.
• Symmetrical output with XLR-connectors on master 1.
• 1 Aux/FX-send output.
• 1 Record/aux/session output on RCA connectors.
• 1 Strong head-phones output on JACK (6,35mm) and mini-JACK (3,2mm).
• Control functions channel 1 and 2:
• Channel 1-2 reverse switch.
• Phono-Line input select switch.
• Rotative level control per channel.
• Triple tone control with short faders, for very fast manipulating of the audio spectrum (+10dB/ -21dB), with 90degrees turnable buttons.
• Aux/FX-send push-button for routing the signal to external effects-units.
• Short balance fader.
• CUT-switch with very low operating force. Can be used in 3 modes, momentary-CUT, latching-CUT and double-speed-CUT. Can be placed in 8 positions.
• Easy slide 45mm fader specially designed for high speed operating.
• Channel fader reverse switch with LED indication at the front.
• Channel fader curve control with potentiometer at the front.
• Easy slide 45mm crossfader to fade between channel 1 and 2.
• Crossfader reverse switch with LED indication at the front.
• Crossfader curve control with potentiometer at the front.
• PFL ON/OFF button.
• PFL select fader, to create a mixed signal of channel 1 and 2 in the headphones.
• All volume controls on channel 1 and 2 are done by microcontroller controlled VCA. The microcontroller works with fuzzy-logic-software, with a clock frequency of 20MHz. This fuzzy-logic-software modifies itself depending on the position of the different controls and depending on the method of operating of the user of the mixing panel.
• The channel faders, crossfader and CUT-switches can easily be replaced via frontpanel after lifting of the scratchplate.
• Control functions channel 3:
• Mic-Line input select switch.
• Rotative level control.
• 0dB LED to adjust the level.
• Dual band equalizer with rotative potmeters.
• PFL ON/OFF button.
• Routing switch to route the signal to channel 1 or 2 or directly to the mix.
• Short channel fader for fast operation.
• Channel 4:
• Rotative level control.
• Soft touch rotative knobs for better grip on all rotative potmeters.
• Mode switch to select mono or stereo operation of the mixing panel, ideal for working with records with different left and right tracks. • Two master outputs with rotative volume control (also useable as monitor or booth output).
• Two bright VU-meters to show the levels of the inputs or the mixed signal.
• Normal and upside down text print at the back panel to facilitate connection.
• Soft rubber anti-slide buttons at the bottom of the mixer.
• Power switch on the back of the panel, to avoid accidentally switching off the panel.
• External power supply, to reduce disturbances.
