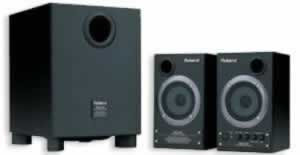

The DM-2100 2.1-ch Speaker System is an affordable way to add accurate reference monitoring with a subwoofer for enhanced bass response. The left and right speakers each offer 15 watts of power, while the 50-watt subwoofer provides a powerful low-end boost.
And with 24-bit/96kHz digital inputs, the DM-2100 is perfect for use with Roland/BOSS digital studio and instruments, or with computer systems and more.
FEATURES:• Affordable 2.1-channel monitoring system with 24-bit/96kHz digital inputs.
• Powered bass reflex speakers with 15 watts per side and flat frequency response.
• Active subwoofer with 50-watt amplifier for increased low end.
• Front-mounted controls convenient located on right speaker.
• Coaxial and optical digital inputs, plus analog inputs (RCA and 1/4-inch type).
• Sleek black wooden cabinets with magnetic shielding.
Deep, Rich Sound for a Variety of Monitoring NeedsThe DM-2100 provides flat and accurate monitoring for a variety of applications. With its 50-watt subwoofer and 24-bit/96kHz digital inputs, this affordable 2.1-channel system is ideal for use with digital recording gear, musical instruments, computer-based setups or any type of nearfield monitoring. The specially designed bass-reflex cabinet delivers clear, punchy sound while occupying a minimal amount of space.
Easy Connections and Sound ControlHooking up the DM-2100 is a snap. All inputs go directly into right speaker, which serves as the preamp. The subwoofer then supplies power for the entire system via dedicated left and right speaker outputs. All controls - including power, input levels, Tone and Low Boost - can be easily adjusted from the right speaker's front panel. Hearing your music with heart-pumping bass was never so easy and affordable.
SPECIFICATIONS:• Rated Power Output: 50w+15w+15w
• Speaker Units:
Sub Woofer 16cm
Satellite Units 9.2cm
Nominal Input level Line 1: -10dBu
Line 2: -10dBu
Input Impedance 18k ohms
• Controls:
BASS Control Knob
Treble Control Knob
Volume Knob x 2
Volume 1 (Digital Input + RCA pin)
Volume 2 (1/4" phone)
Power Switch
Digital Input Select Switch
Phase Switch
Indicator
Power LED
• Connectors:
Rear: Line 1 Jack(L,R) (RCA pin)
Line 2 Jack(L(MONO), R) (1/4" phone)
Optical Input Connector
Coaxial Input Connector
Dedicated connector for Power control and Audio signal
R Channel Input Jack (RCA pin)
Rear: L Channel Input Jack (RCA pin)
Rear: Dedicated connector for Power control and Audio signal
R Channel output Jack (RCA pin)
L Channel output Jack (RCA pin):
• Sampling Rate: 32/44.1/48/96kHz
• D/A Convertor: 24-bit
• Dimensions:
130 (W) x 160 (D) x 200 (H) mm
130 (W) x 160 (D) x 200 (H) mm
240 (W) x 300 (D) x 330 (H) mm
• Accessories:
Owner's Manual
Speaker Cable (RCA pin type)
Power Cord
