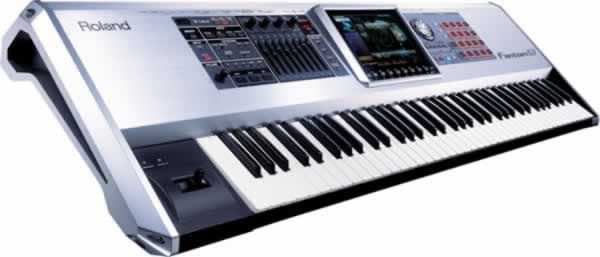

Roland FANTOM-G7 76 Key Workstation

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

roland fantom-g7
roland fantom-g7 Roland FANTOM-G7 76 Key Workstation Roland FANTOM-G7 76 Key Workstation Roland FANTOM-G7 76 Key Workstation Roland FANTOM-G7 76 Key Workstation
Introducing the most powerful and luxurious live workstation in Roland history. The Fantom-G7 is a dream instrument that redefines the boundaries of playability and creativity with its advanced sound engine, revolutionary ARX SuperNATURAL' expansion bay, large-sized color LCD, powerful new audio/MIDI sequencer and more.

•Advanced sound engine with double wave capacity of previous flagship workstations
•2 x ARXexpansion with SuperNATURAL the world's greatest performance-expression technology
•Graphic user interface with extra-large 8.5" wide color LCD and mouse connectivity
•Newly developed onboard audio/MIDI sequencer with 128 tracks, including 24 audio tracks
•Multi-FX for each part; up to 22 effects routings can be programmed simultaneously
•Heavy-duty casing with aluminum panel

Advanced Sound Engine
Driven by a powerful new audio processor, the Fantom-G7 provides new sonic depth and versatility. With twice the wave-ROM capacity of its predecessor, it contains a treasure trove of Roland's world-famous SRX-quality sounds, but what really sets this instrument apart is its new ARX expansion, which allows additional SuperNATURAL sound-sets and fully dedicated synth and effects engines to be added to this already powerful live workstation.

SuperNATURAL' ARX Expansion
Fantom-G7 provides ARX slots that accommodate two SuperNATURAL expansion boards. SuperNATURAL is Roland's unique behavior-modeling technology that enables a new level of organic, emotional expression previously unattainable in synthesizers. Applied to traditional-instrument sounds, SuperNATURAL enables the delicate, organic tonal changes and playing nuances of real musical instruments. It's also a powerful tool for electronic and non-traditional sounds, breathing amazing new life and expression into synthesis.

Power Sequencer Onboard
The Fantom-G7 is the first Roland instrument to feature Roland's newly designed power sequencer. In conjunction with the large-size LCD, this pro-level composition tool provides 128 tracks (including 24 audio tracks) in a fully intergraded audio/MIDI graphical environment. A mouse can be also incorporated for computer-like speed and ease. Other convenient features include combo XLR and TRS connector, phantom power for condenser mics, Hi-Z input for guitar and bass, and line input.

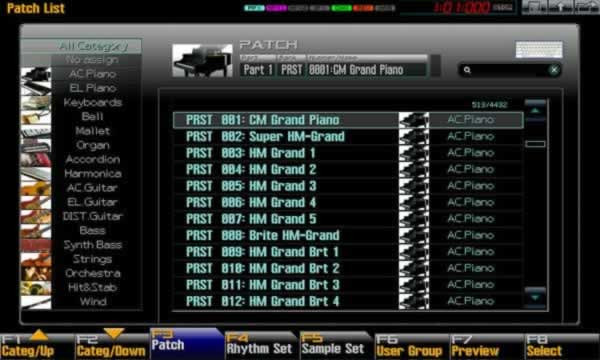

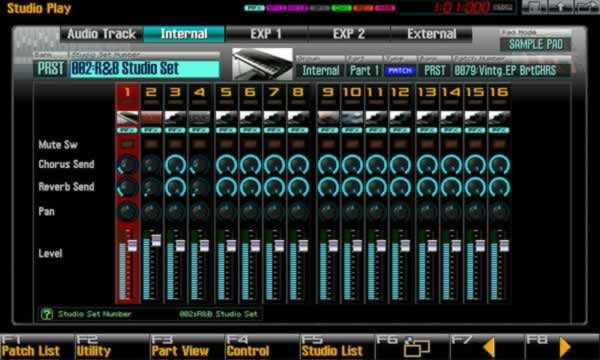

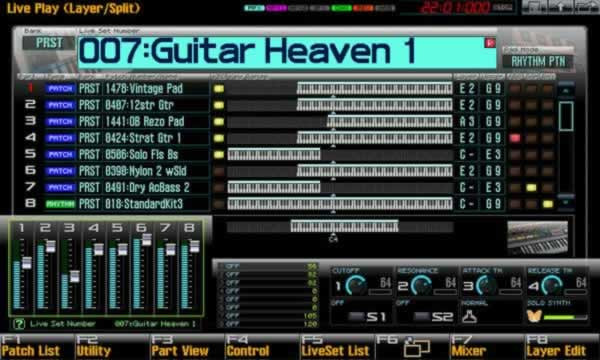

Luxurious Extra-Wide LCD
One look and touch and you'll know that the Fantom-G7 is an instrument without equal. Only the highest-quality materials have been used to create this dream synth, with a stylish, futuristic design that will turn heads. Front and center is the extra-large 8.5" wide TFT color LCD for enhanced productivity. A first-class assortment of hands- on controls is provided as well, including eight sliders, four knobs, and ten buttons below the LCD.

Amazing FX
Fantom-G7 is loaded with a state-of-the-art effects engine, with multi-effects available for each Fantom-G7 sound/part. In 16-part multi-timbre mode, up to 22 effect routings can be used simultaneously. Create complex setups with 16 insert effects per multi-timbral patch group, plus global reverbs and choruses. Mastering effects are provided for polishing songs created with the onboard sequencer.

Supreme Keyboard Feel & Action
The Fantom-G8 is outfitted with Roland's top-of-the-line PHA II "Ivory Feel" keyboard. This amazing keyboard technology reproduces the real surface feel of ivory acoustic piano keys providing a familiar stability and comfort to the pianist. The white keys have a two-piece structure which reduces the developed keyboard surface material is designed to absorb moisture, ensuring a secure, slip-proof feel that your fingers will love.

Keyboard SectionKeyboard
• 76 keys, with velocity and channel aftertouch

Sound Generator Section
Mamimum Polyphony
128 voices, shared with the sampling section

16 parts (Internal) + 16 parts (External) + 2 parts (ARX) + 24 parts (Audio Track)

Wave Memory
256MB (16-bit linear equivalent)


Preset Memory
Patches: 1,664 + 256 (GM2)
Rhythm Sets: 64 + 9 (GM2)
Live Sets: 512
Studio Sets: 128

User Memory (per one project)
Patches: 512
Rhythm Sets: 64
Live Sets: 512
Studio Sets: 128

Patch Multi-effects (PFX): max. 16 units (76 types)
Multi-effects (MFX): max. 2 units (78 types)
Chorus: 1 unit (3 types)
Reverb: 1 unit (10 types)
Input effects: 1 unit (6 types)
Mastering effects: 1 unit (3-band compressor)

Sampling Section
Data Format
16-bit linear, .WAV or .AIFF

Sampling Frequency

Maximum Sampling Time
approx. 360 sec, mono/180 sec, stereo (when sampling memory isn't expanded/32 MB)
approx. 108 min, mono/54 min, stereo (fully expanded with DIMM/544 MB)

Number of Samples
2,000 (per one project)

Sequencer Section
MIDI tracks (Internal/External/ARX): max. 128
Audio tracks: max. 24
Tempo track: 1
Beat track: 1

480 TPQN

5.00 to 300.00

50 (per one project)

2,000 (per one project)

Notes Capacity
approx. 1,000,000 notes (per one project)

Song Length
9,998 measures

Recording Method
Realtime recording, Step recording


Arpeggio Sets

RPS Sets

Rhythm Pattern Sets

Chord Memory

Chord Memory Sets

Graphic Type, 8.5", Wide VGA (800 x 480 dots), backlit LCD (Color)

16 pads, Velocity and Polyphonic Aftertouch sensitive

Pitch Bend/Modulation Lever, Control Knob x 4, Control Slider x 8, Assignable Switch x 2, D Beam Controller

Mic/Guitar Input Jacks: 1/4 inch phone type/XLR type (Phantom power) (Hi-Z) Headphones Jack: Stereo 1/4 inch phone type, A (MIX) Output Jacks (L/MONO, R): 1/4 inch TRS phone type: B Output Jacks (L, R): 1/4 inch phone type: Input Jacks (L/MONO/MIC, R): 1/4 inch phone type, Pedal Jacks: Hold Pedal Jack (Half Pedal recognition), MIDI Connectors: IN, OUT, THRU, USB Connectors: USB Computer Connector (supports file transfer or mass storage class, and Audio/MIDI), Digital Audio Interface: COAXIAL INPUT/OUTPUT, AC Inlet

Expansion Slots
ARX expansion boards: 2 slots
DIMM: 1 slot, supports PC133, CL=2/3, 3.3 V, 128MB, 256MB, 512MB

External Storage Device
USB Flash Memory

Power Supply
AC 117 V, AC 230 V, AC 240 V (50/60 Hz), AC 220 V (60 Hz)

Power Consumption
30 W

Owner's Manual, CD-ROM (Editor, USB Audio/MIDI driver), Power Cord

Expansion Board: ARX Series, Keyboard Stand: KS-V7, KS-18Z, Pedal Switch: DP series, Foot Switch: BOSS FS-5U, Expression Pedal: EV-5, USB Memory: M-UF1G

Size and Weight
1,278 mm
50-3/8 inches

411 mm
16-3/16 inches

142 mm
5-5/8 inches

16.6 kg
36 lbs. 10 oz.
