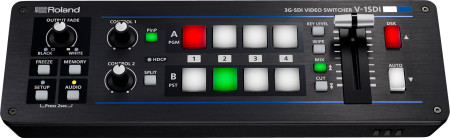

Compact and portable, the V-1SDI delivers professional switching results with its easy to use hardware interface complete with T-Fader and easy-to-see backlit buttons.
With support for 3G-SDI, the V-1SDI can operate at full 1080p resolution and can take advantage of the longer cable distance of SDI making this compact solution suitable for events and applications in even large spaces with the most professional level of SDI camera sources.
Main FeaturesSupport for SDI and HDMI cameras, smartphones, tablet computers and PCs etc.
• Easy to operate with hardware controls
• Compact size
• Supports up to Full HD 1080p
• 3 x 3G-SDI and 2 x HDMI* inputs
• 2 x 3G-SDI and 1 x HDMI* output
• Quad input multi-viewer with source labelling and audio metering
• Composition effects including DSK (Downstream Keyer), picture-in-picture etc.
• Full 14 channel audio mixer included
• Software control using V-1SDI RCS application for Mac and PC and remote control via RS-232 connection
*HDCP CompliantInputsThe V-1SDI has two dedicated 3G SDI inputs, a third channel input that supports 3G SDI or HDMI and a fourth channel HDMI input that also includes scaling. This makes the V-1SDI ideal in a variety of configurations for both an all camera applications and applications that mix cameras, video sources and computer data sources.
Inputs 1 to 3 of the V-1SDI support 1080p/1080i/720p video resolutions with Input 4's scaler supporting a wider range of video and VESA resolutions. Both progressive and interlace signals can be input allowing for both 1080i and 1080p signals to be used at the same time. HDCP is supported* for input of copy protected content from devices such as Blu-ray disc players.
*Video is only output from HDMI when HDCP is enabled. SDI outputs are disabled when HDCP is enabled.OutputsThe V-1SDI has two 3G SDI Outputs and one HDMI output. SDI PVW and MULTI-VIEW outputs are assignable from Program, Multi-view Preview or Full Frame Preview for flexibility in different applications where output display devices support either SDI or HDMI inputs.
Quad Input Multi-viewerThe four-way multi-view preview screen shows all four input sources on a single display for confident monitoring. A red border shows the video currently being output and a green one indicates the video to be output next. It also includes audio metering for all input sources and the main output.
Composition EffectsThe V-1SDI includes DSK (Downstream Keying), Picture-in-Picture (PinP), Split and Quad composting effects ideal for creating news style broadcasts and corporate presentation content.
The DSK function is great for overlaying titles, song lyrics or logos onto incoming video sources that can be switched in the background while text or images remain displayed. The DSK supports both Luminance Keying (Black / White) and Chroma Keying (Blue / Green).
Audio MixingIncluded is a 14 channel digital audio mixer. The V-1SDI can mix 5 stereo audio inputs from the SDI or HDMI ports, the stereo line level input and a mic level input.
Every audio input is equipped with a delay function* to synchronize the video and the audio.
Audio follow function enables the audio to transition along with the video.
The final audio mix is both embedded in the SDI and HDMI output along with the video signal and is also output to the stereo audio output jacks for sending the audio mix to a PA system or recording it on an external device.
*The maximum delay time is 500ms.Remote ControlRemote control is possible with the V-1SDI RCS dedicated computer software for Mac and PC connected via a USB cable. The application offers a detailed view of the connected V-1SDI and can be used to switch video, mix audio or change settings.
For integration with A/V control systems, the V-1SDI is equipped with a serial connection for control by industry standard RS-232 serial controls.
SPECIFICATIONSVideo
Video Processing
4:2:2 (Y/Pb/Pr), 8-bit
Input Connectors
SDI INPUT 1--3: BNC x 3
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI INPUT 3--4: Type A (19 pins) x 2
* HDCP Supported
* INPUT 3: SDI or HDMI selected.
Output Connectors
SDI OUT PGM: BNC x 1
SDI OUT PVW: BNC x 1
* Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI OUT MULTI-VIEW: Type A (19 pins) x 1
* HDCP Supported
Input Formats
SDI INPUT 1-3 Conforms to SMPTE 296M, SMPTE 274M
HDMI INPUT 3
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080i or 1080p)
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
HDMI INPUT 4
480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz)
WXGA (1280 x 768/60 Hz), SXGA (1280 x 1024/60 Hz)
FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz)
UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz)
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60 Hz: Reduced blanking.
* The input interlaced video signal is converted to progressive video signal by internal processing.
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
Output formats
SDI OUT(PGM/PVW) Conforms to SMPTE 296M, 274M
HDMI OUT MULTI-VIEW
720/59.94p, 720/50p SMPTE 296M(FORMAT switch = 720p)
1080/59.94i, 1080/50i SMPTE 274M(FORMAT switch = 1080i)
1080/59.94p, 1080/50p SMPTE 274M(FORMAT switch = 1080p)
* The video signal frame rate can be selected at the SETUP menu (59.94 or 50).
Video Effects
Transition: CUT, MIX (DISSOLVE/FAM/NAM/MOSAIC), WIPE (30 types)
Composition: PinP, SPLIT, QUAD, DSK (Luminance Key, Chroma Key)
Audio
Audio Processing
Sampling rate: 24 bits/48 kHz
Audio Formats
SDI: Linear PCM, 24 bits/48 kHz, 2ch Conforms to SMPTE 299M
HDMI: Linear PCM, 24 bits/48 kHz, 2ch
Input Connectors
Digital: SDI INPUT 1--3 (BNC) x 3 SMPTE 299M
HDMI INPUT 3--4 (HDMI Type A 19 pins) x 2
Analog: AUDIO IN (RCA phono type)
MIC (Stereo mini type, plug-in power supported)
Output Connectors
Digital: SDI OUT PGM: BNC x 1 SMPTE 299M
SDI OUT PVW: BNC x 1 SMPTE 299M
HDMI OUT MULTI-VIEW: Type A (19 pins) x 1
Analog: AUDIO OUT (RCA phono type)
PHONES (Stereo mini type)
Input Level
AUDIO IN: -10 dBu (Maximum: +8 dBu)
MIC: -41-- -13 dBu (Maximum: -1 dBu)
Input Impedance
AUDIO IN: 15 k ohms
MIC: 10 k ohms
Output Level
AUDIO OUT: -10 dBu (Maximum: +8 dBu)
PHONES: 92 mW + 92 mW (32 ohms)
Output Impedance
AUDIO OUT: 1 k ohm
PHONES: 10 ohms
Audio Effects
EQ, Delay, Compressor, HPF, Gate, Reverb, Mastering effect
Others
Other Connectors
USB:
