All-in-one SD video mixer with HDMI in/out, USB streaming out, and built-in multiviewer with touch control. Accessible and quality video performance and web streaming - The V-4EX - advancing the legendary V-4 and V-8 family to now include HDMI in/out, progressive internal processing, audio embedding, USB streaming and built-in touch monitor.
• 3 Input (SD HDMI/Composite) + 1 Input (Up to 1080p HDMI/RGB/Component/Composite)
• PGM Output (Up to 1080p HDMI + RGB/Component + Composite) + PVW Output (PVW/Multiviewer)
• 480p/576p Progressive internal processing
• Built-in multiviewer with touch control
• Built-in frame synchronizers on all inputs
• Scalers on CH 4 and Output
• 259 Transitions 148 Effects
• HDCP compliant
• Audio Embedding
• Audio Mixer & Delay -up to 4 frames
• USB Streaming Out for webstreaming

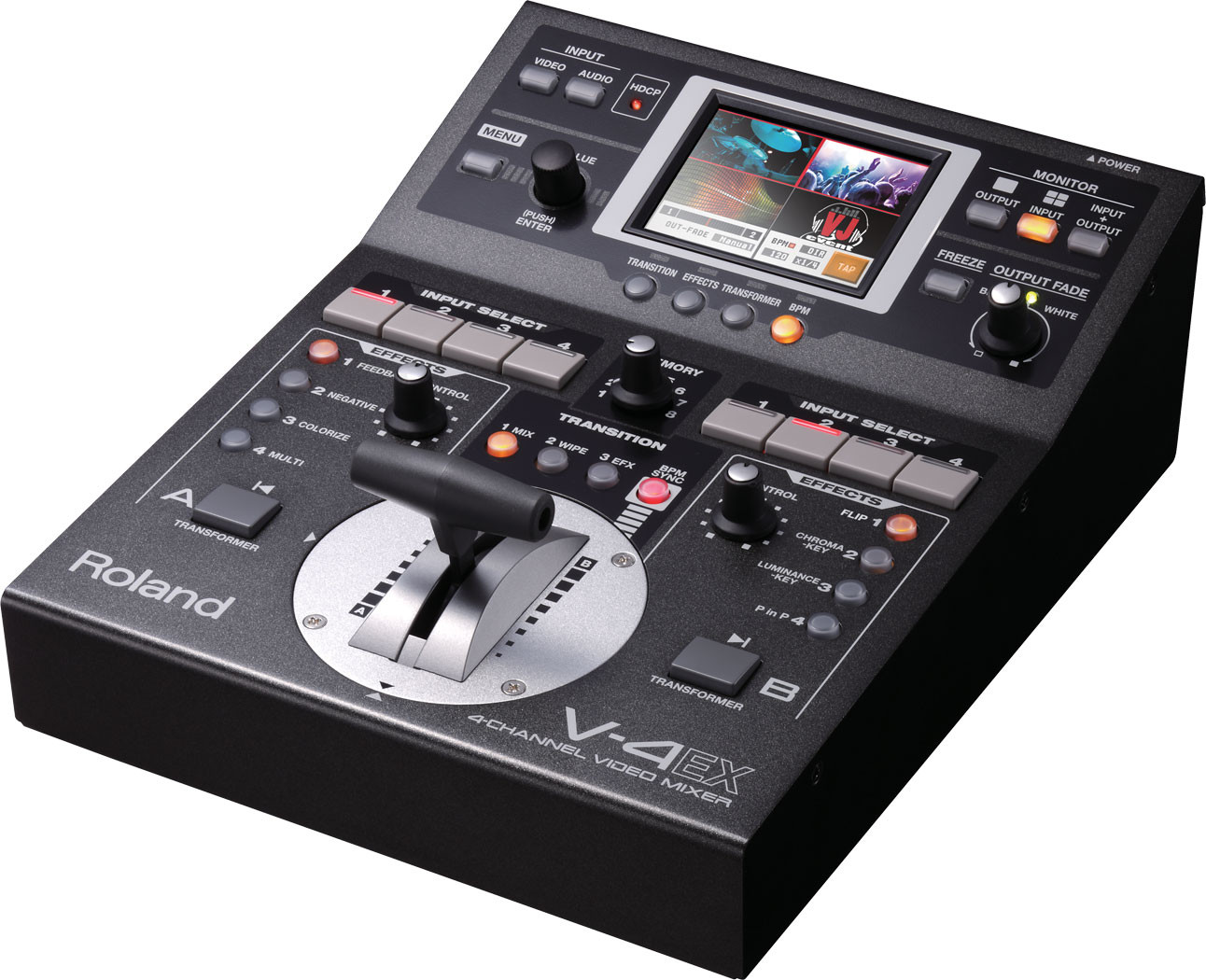

The Roland V-4EX advances the industry-standard Roland V-4 four channel video mixer by incorporating HDMI inputs/outputs, USB streaming, HDCP support, built-in touch multi-viewer, and audio embedding. These features are added to the strong primary feature set including built-in effects and unique user interface that has made the V-4 one of the besting selling video mixers of all time. See the current VR-3EX Streaming Software Compatibility list for more information on streaming software compatibility.
The Roland V-4EX versatility and unique features make it suitable for many applications, including clubs, concerts, worship, events, meetings, trainings, weddings, education, and sporting events. The V-4EX's sleek and compact design lends itself to portable applications as well as permanent installations when size and space are considerations.

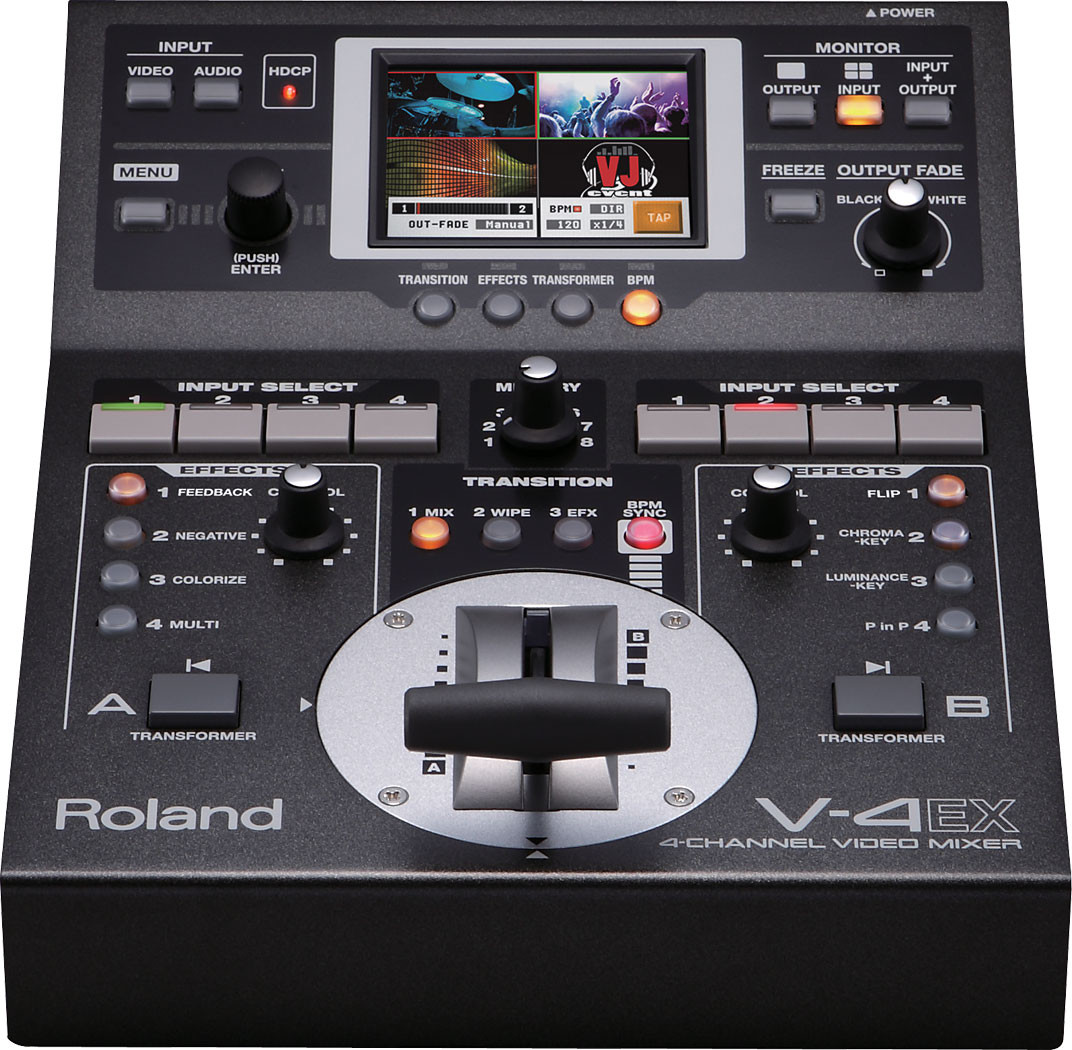

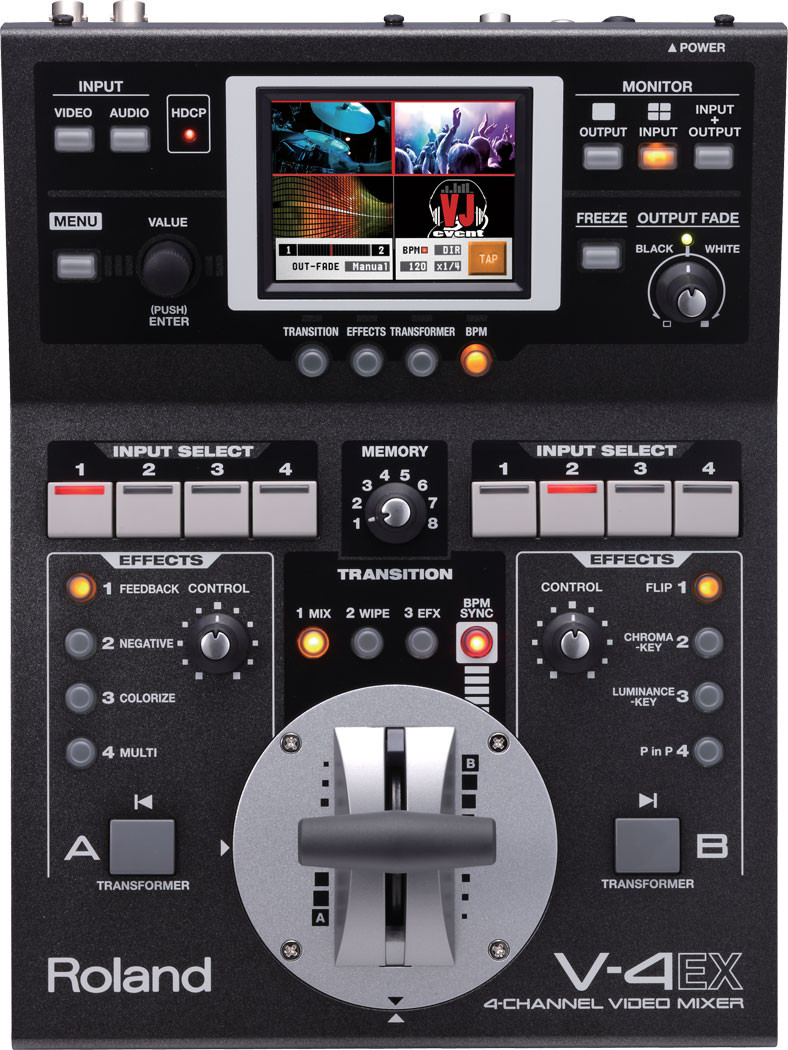

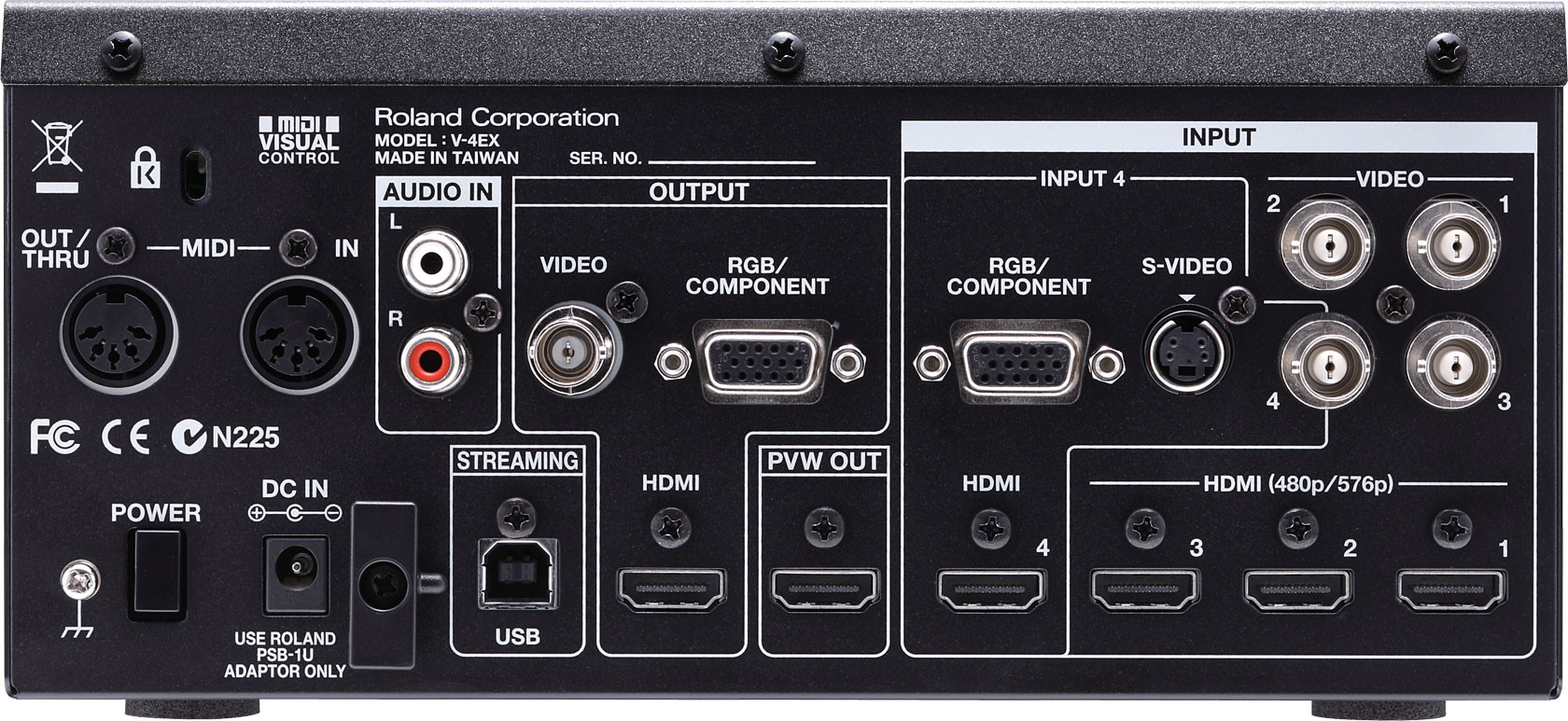

In addition to a number of powerful video effects, the user interface incorporates dial controls for effects on each bus and master output dial. The innovative design incorporates a video switcher, audio embedding, preview monitor and streaming-ready USB output all in a single unit. Inputs one to three feature composite (BNC) or HDMI while input four accepts HDMI, RGB/Component or S-video. The output features scaled-up HDMI, RGB/component, or SD composite with an additional HDMI output for external preview monitor. The Roland V-4EX features a stereo RCA audio input allowing you to embed audio into the HDMI outputs and USB stream, which are especially useful for web streaming and recording applications. As a USB Video/Audio class device, web streaming is effortless by simply connecting to a computer running a live streaming service. You can also record the output using Roland's free Video Capture for Windows software or by using Quicktime on a Mac.
Designed to be a live production switcher and web streaming device, the Roland V-4EX features audio embedding, built-in audio mixer with up to 4 frames delay to "lipsync" your video source. It supports HDCP video allowing you to mix copyright protected material such as game consoles and Blu-ray content in your live production. HDMI inputs one to three accept video resolutions up to 480p/576p and HDMI input four accepts resolutions up to 1080p and RGB up to WUXGA (1920x1200). Although internal processing is SD-based, the output can be scaled up to 1080p or 1920x1200.
