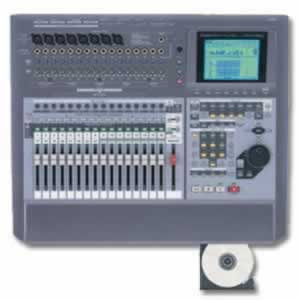

roland vs-2480dvd
Images may show accessories or configurations not packaged with this item.
The VS-2480DVD takes Roland's best-selling 24-track workstation and makes it even better with the addition of a DVD multi-drive for storing up to 4.7GB of data.

Naturally, the VS-2480DVD has all the great features of the originalincluding 64-track digital mixing, motorized faders and VGA monitor support. It's also compatible with the new VS8F-3 Plug-In Effect Expansion Board, opening up a world of plug-in effects.

• Flagship 24-track digital studio workstation with internal DVD multi-drive.
• Store up to 4.7GB of project data on a single DVD-R or DVD-RW disc!
• 80GB hard drive for unprecedented recording time.
• New 3rd party plug-in support via optional VS8F-3 Plug-In Effect Expansion Board
• 24-track playback; 16-track simultaneous recording with 384 v-tracks.
• 64-channel, fully automated digital mixer with 17 motorized faders.
• Professional-quality connections including 8 XLR/16 balanced trs mic/line inputs.
• 24-voice Phrase Pads for triggering and arranging samples.
• VGA Monitor Output with stellar graphics including mouse-based waveform editing and control
• "Drag-and-drop" control using included mouse; also accepts ASCII keyboard (optional).
• Dual 8-channel r-bus ports for expandable I/O in a variety of analog and digital formats; smpte and word clock input.
• Massive 4.7GB Storage on Recordable DVD
Thanks to a new DVD multi-drive, the VS-2480DVD lets users store up to 4.7GB of data on a single DVD disc. This is great for archiving an album's worth of songsno more saving across multiple CDs! Of course, CD-R and CD-RW discs can also be used for normal CD burning.

DVD Specifications:
• Slim DVD MULTI Drive Built-in Type
• Read speed DVD-ROM: Max 8X CAV, CD-ROM: Max 24X CAV
• Maximum Write speed CD-R: Max16X Zone CLV, CD-RW: 4X CLV, High Speed CD-RW: 8XCLV, DVD-R: 2XCLV, DVD-RW: 1XCLV

Support Buffer Underrun Free Recording (SmoothLinkTM)
New Plug-In Support with Optional VS8F-3
The VS-2480DVD supports the use of VS Plug-Ins by installing an optional VS8F-3 Plug-In Effect Expansion Board. Up to three boards can be installed, and each is capable of running two high-quality plug-ins from Roland, or optional 3rd party plug-ins from developers like Antares, Universal Audio, Massenburg, McDSP and more. This is the ultimate V-Studio for producers and songwriters alike.

Ins and Outs:
• Connectors:
SCSI Connector (DB-25 type)
MIDI Connectors (DIN 5pin type)
Input Jack 1-8 (XLR type, balanced, phantom power)
Input Jack 1-16 (1/4inch phone type, TRS balanced)
Guitar (Hi-Z) Jack (1/4inch phone type)
Digital In Connectors (Coaxial type, Optical type)
Digital Out Connectors (Coaxial type, Optical type)
Foot Switch Jack (1/4inch phone type)
Word Clock In jack (BNC type)
SMPTE In Jack (RCA phone type)
PS/2 Mouse Connector (miniDIN 6pin type)
PS/2 Keyboard Connector (miniDIN 6pin type)
VGA Out Connector (MiniDB-15 type)
R-BUS Connectors (DB-25 type)
Master Out Jack L/R (1/4inch phone type, TRS balanced)
Monitor Out Jack L/R (1/4inch phone type, TRS balanced)
AUX A Send Jack L/R (1/4inch phone type, TRS balanced)
AUX B Send Jack L/R (1/4inch phone type, TRS balanced)
Headphones Jack (Stereo 1/4inch phone type)

• Options:
24-bit Effect Expansion Board: VS8F-2
Plug-In Effect Expansion Board VS8F-3
Level Meter Bridge: MB-24, Level Meter Bridge Adaptor: VS24-MBA
Bi-amp Monitor: DS-50A,
8CH A/DD/A Converter: ADA-7000
AES/EBU Interface: AE-7000
R-BUS Cable: RBC-1 (1 m), RBC-5 (5 m)
Footswitch: FS-5U (BOSS),
Pedal Switch: DP-2
VS-TCXL Hard Shell Travel Case.
• Dimensions: 24-3/8" W x 20-1/2" D x 5-7/16" H
