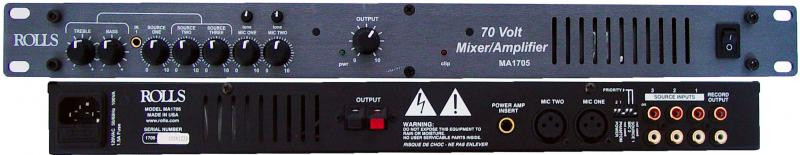

The MA1705 is a single rack space mixer amplifier designed for installation applications. The unit provides a compact and efficient way to mix up to three sources such as AM/FM tuners, CD players, and video players with up to two microphones. Priority talkover is provided on Microphone One for paging, and on Source Three for a jukebox, telephone, etc. The power amplifier provides 70 Watts of power when connected to a 70 volt speaker system.
IMPORTANT NOTICES: THE FRONT PANEL ACTS AS THE HEAT SINK FOR THIS UNIT AND MAY GET HOT UNDER A HEAVY LOAD.
Other features include direct access to the power amp section via a 1/4" connector, bass and treble controls on sources one and two, a stereo pre-master record output, and spring-loaded output terminals. Priority ducking for paging is provided on microphone one and RCA source three.
Single rack space unit
Five inputs - 2 mic, 3 RCA stereo pairs
Phantom power on mic inputs
Tone controls for each mic input
Bass and treble controls on sources one and two
Direct access to power amp section
Stereo pre-master level RCA record output
