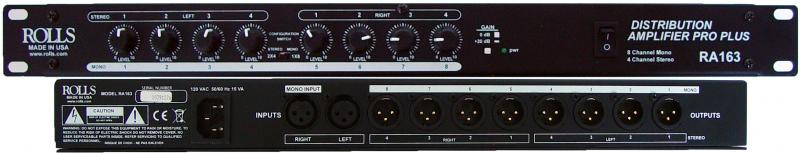

The Rolls RA163 Distribution Amplifier features 2 balanced inputs and 8 balanced outputs over XLR connectors. The RA163 will split a stereo input signal into 4 stereo outputs, or a mono input signal into 8 mono outputs. The unit can be used for high-end audio applications such as fixed-installations, sound reinforcement and more. Each output features individual level control dials and the chassis easily occupies a single space of a 19" rack enclosure.
Features
• Mono or Stereo Operation - mono input to eight outputs, or stereo inputs to four stereo outputs.
• +20 dB Gain switch.
• All XLR jack inputs and outputs.
Specifications
• Input Impedance: 100 K Ohms balanced
• Max Input Level: +24 dBV
• I/O Connectors: XLR
• Output Impedance: 50 Ohms balanced
• Max Output Level: +24 dB
• Max Gain: 20 dB
• S/N Ratio: >90 dB
• Frequency Response: 10 Hz - 40 kHz, +/- 1 dB
• THD: <.008%
• Power: 120 VAC 50-60 Hz, 15VA
• Size: 19" x 1.75" x 6.5" (48 x 4.5 x 17 cm)
• Weight: 7 lbs. (3 kg)
