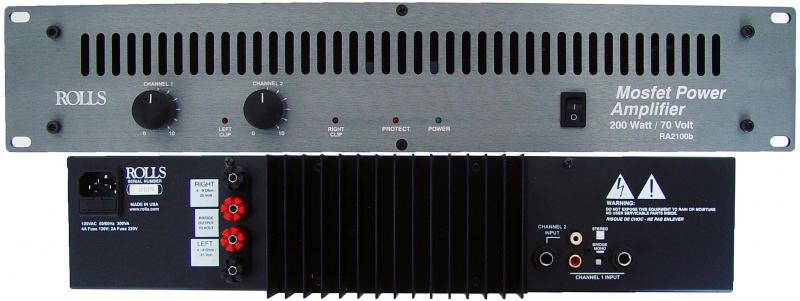

Rolls RA2100B Professional Power Amplifier

Not In Stock Not In Stock, But We'll Order It In For You
This item is not in stock, but can usually be back in our warehouse within 4 to 10 days, depending upon stock levels at Rolls's warehouse. This time frame is not guaranteed, rather an estimate based on historical data. Order now! We'll notify you promptly if we hear of any delay.
Free Shipping FREE Ground Shipping to the contiguous U.S. (details)
Affirm Financing
Future Pay
    • Buy Now and Earn 630 PDJ Bucks ($6.30)! Applies only to registered, domestic U.S. customers. Exact value may vary once logged in.
The RA2100b is a stereo 100W/channel RMS power amplifier in a standard 2 rack space format. It is intended for professional audio and distributed musical applications. The unit features 100 Watts per channel RMS into four ohms, 85 Watts per channel into eight ohms, and for the contractor - 70 Volts / eight ohms. The unit also features MOSFET drivers in a voltage and current gain circuit and a one-second input turn-on delay. The RA2100b will drive 25 Volt speaker lines directly from each channel, or 70 Volt lines bridged.

• 100 Watts RMS per output (4 Ohm).
• 85 Watts RMS per output (8 Ohm).
• 200 Watts RMS into 70 Volt (8 Ohm).
• 1/4" and RCA inputs.
• Fault Protected Output Stage.

Power Output, Stereo: 100 Watts RMS/ch. 4 Ohms, 85 Watts RMS/ch. 8 Ohms
Bridged: 200 Watts into 70 Volt or 8 Ohms
Minimum Load Impedance: 4 Ohms (8 Ohms bridged)
Sensitivity: <1 VRMS for full output
THD: <.05% (500 Hz @ 1 Watt)
IMD: <.05%
S/N Ratio: >95 dB A Weighted
Power Bandwidth: 70 - 30 kHz +/- 3 dB
Damping Factor: >150
Slew Rate: 100 V/microSecond
Phase Shift: <10 Deg., 20 Hz - 20 kHz
Input Impedance: 10 K Ohms balanced
Power: 120 VAC 60 Hz 2.5A, 230 VAC 50 Hz
Size: 19" x 3.5" x 7.5" (48 x 9 x 19 cm)
Weight: 12 lbs (5.5 kg)
