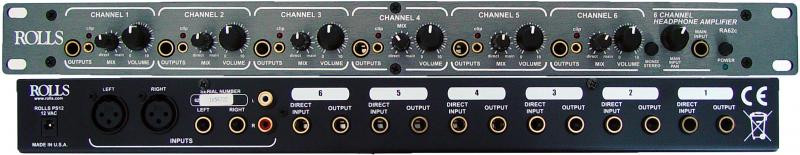

The ROLLS RA62c is a six-channel headphone/earphone amplifier for professional audio monitoring. A variety of input options are available including 1/4", RCA, and balanced XLR. Since the MONO/STEREO switch is after the pan control, it will mix 2 MONO signals and their balance can be adjusted with the Pan control. With the addition of rear panel Direct Input connectors, each channel may mix a second stereo signal.
Features
• Six Channels of clean, quiet headphone/earphone amplification.
• Individual Direct Inputs to mix separate stereo signal with Main Input signals.
• 1/4" and 3.5mm Headphone/Earphone Outputs.
• LED Clip indication.
• Stereo/Mono operation.
Specifications
•
• Input Impedance: 10K Ohms unbalanced
• Max Input Level: +18 dBV
• Input Connectors: 1/4" TRS stereo, R & L bal. / unbal. 1/4", RCA, R & L balanced XLR, 6: 1/4" TRS Direct Input jacks
• Output Connectors: 12: 1/4" TRS Stereo jacks, 6: 1/8" (3.5 mm) TRS Stereo jacks
• Max Gain: 20 dB/Channel
• Output Power: 972 mW/side, 1944 mW/Channel ( @ 32 Ohms )
• Frequency Response: DC - 30 kHz
• S/N Ratio: 90 dB
• THD: <.008%
• IMD: <.008%
• Phase Shift (In to Out): 0 deg.
• Slew Rate: 25 V per microsecond Second
• Crosstalk: - 65 dB
• Power: 12 VAC (Rolls Model PS12)
• Size: 19" x 1.75" x 6.5" (48cm x 4.5cm x 17cm)
• Weight: 7 lbs (3KG)
