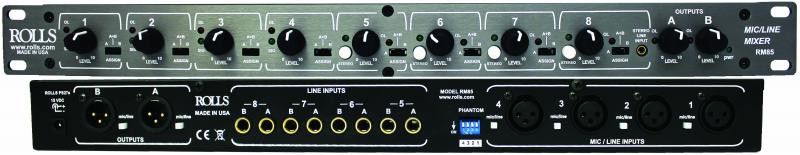

Experience unparalleled audio control with the RM85, an innovative 8-channel, two-zone mixer designed to meet all your professional audio needs. Whether you're a seasoned audio engineer or a music enthusiast, this mixer is tailored to deliver top-notch performance.
The first four channels of the RM85 cater to both XLR microphones and XLR line level inputs, ensuring versatility in accommodating various audio sources. For added convenience, channels 5-8 offer 1/4" inputs, expanding your connectivity options.
Notably, all eight channels can be seamlessly routed to the two XLR outputs, granting you the freedom to choose from three configurations: A, B, or a combination of both A and B. This level of flexibility empowers you to craft the perfect audio output for any occasion.
Additionally, the RM85 boasts separate A and B outputs, both presented in XLR format. What's more, you have the liberty to select either output as a Line or Microphone level output, tailoring the sound to your exact preferences.
As an added bonus, channel 8 is equipped with a convenient stereo 3.5mm (1/8") input located on the front of the mixer, further enhancing its versatility and usability.
Discover the true potential of your audio setup with the RM85 - a reliable, feature-rich mixer that raises the bar for professional-grade sound management. Elevate your audio experience today!
• Four XLR balanced inputs with +48 V phantom power
• Four stereo Source inputs, including a front panel 3.5mm input
• Master Output Level control for each channel
• Low noise, efficient operation
• All in a single rack space
• Input Impedance: Mic: 600 Ohms XLR balanced Line: 22K Ohms RCA
• Max Input Level: Mic: -14 dBV Mic level Line: +24 dBV
• Total input Connectors: 4: XLR, 4: Stereo 1/4", 1: 3.5mm
• Phantom Power: +48 VDC
• RCA Output Level: +17 dBV max (impedance 1K Ohm)
• Max Gain: Mic: 70 dB Source: 30 dB
• Noise Floor: - 80 dB, THD: <.025%
• S/N Ratio: 96 dB
• Voltage Gain: 32 dB
• Nominal Supply Voltage: 15 VDC
• Bandwidth: 20Hz - 25 kHz
• Size: 19" x 1.75" x 4" (48.3 x 4.5 x 10 cm)
• Weight: 7 lbs. (2.3 kg)
• Power supply: Rolls PS27s power supply 15 VDC 500 mA TIP NEGATIVE.
