Rolls RPB486 Phantom Hex 6 CH Phantom Power

Dropships Ships Directly From The Supplier
Free Shipping FREE Ground Shipping to the contiguous U.S. (details)
VIP Price:
rolls rpb486
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

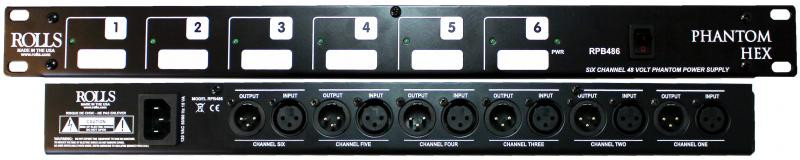

The Rolls RPB486 Phantom HEX is a six-channel +48V phantom power supply for up to six condenser microphones. The rear panel features six XLR input connectors for microphones and 1/4" TRS phone outputs for sending channel signal to mixers. The RPB486 is 19-inch rack-mountable and is ideal wherever 48V phantom power is not available.

Provides 48V phantom power to six condenser microphones. Each channel features a 1/4" TRS phone output to send signal to mixers. The unit is mountable in a standard 19-inch single space rack.


• XLR Inputs and XLR outputs.
• +48 Volt Regulated Phantom Power.
• LED "In Use" Indication.
• Perfect for digital multitrack use.


• Connectors: 6: XLR female jacks (pin 2 hot), 6: XLR male jacks (pin 2 hot)
• Phantom Power Voltage: 48 Volts
• Max Phantom Power Current: 14 mA each channel
• Power Supply: Linear 120VAC 50/60Hz
• Size (W x H x D): 19" x 1.75" x 2.5" (48 x 4.5 x 12.7)
• Weight: 4 lbs.

Additional Information

Product ConditionNew
