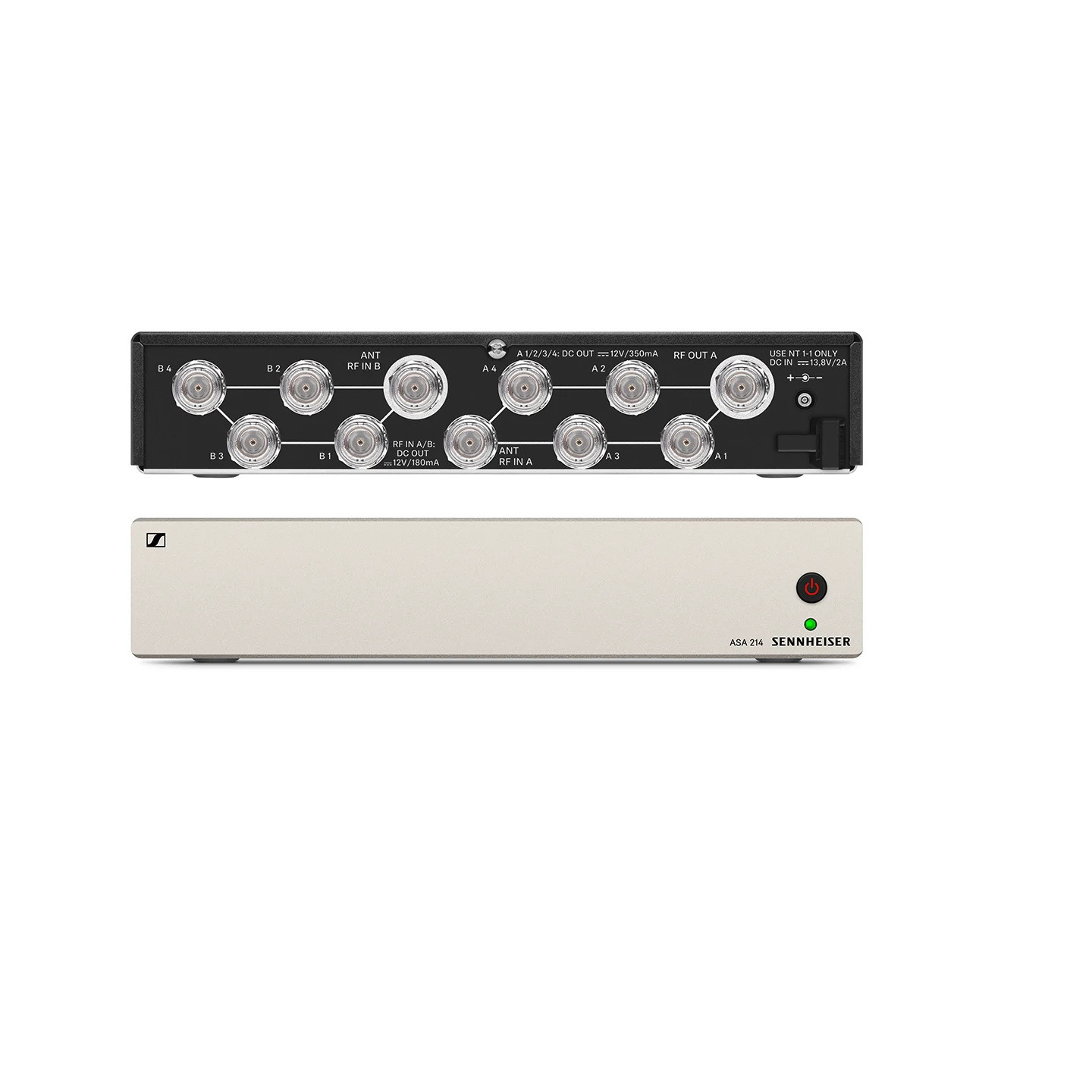

The ASA 214 active antenna splitter is built in a full metal housing and ships with 8 BNC cables included. The splitter runs up to 4 receivers of the ew series with one antenna. The UHF-Version includes the NT 1-1 power supply with EU, UK and US adapters, while the ASA 214-1G8 includes the NT 1-1 with EU, UK and AU adapters.
• Compatible with G4 and G3 systems
• Power supply via BNC cables for EM 300-500 / EM 100 receivers. No additional power supply needed
• Up to 4 true diversity receivers can be used with two external antennas
• Full metal housing
SpecificationsImpedance: 50 OHM
Power consumption: max. 2.0 A with connected receivers and boosters
Storage temperature: -20C - +70C
Operating temperature: -10C - +55C
Power supply: 13,8 V DC (with NT 1-1 mains unit)
Antenna connector: BNC
Frequency range: 470-870 MHz (UHF), 1785-1800 MHz (1G8)
Operating relative humidity 5 - 95 %
Dimensions: 8.3"x 6.6" x 1.7" (212 x 168 x 43 mm)
Weight: 2.4 lbs
What's in the Box:ASA 214 splitter
8x BNC cable 50cm
NT 1-1 power supply
