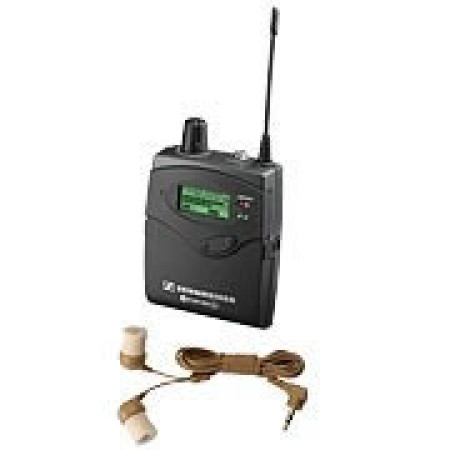

Body pack IEM receiver with IE3 earphones.
FEATURES:* Autoscan on all receivers for simple and secure frequency selection
* 1440 frequencies within a 36MHz switching bandwidth for greater tuning flexibility
* Robust metal construction for durability
* Smaller bodypack transmitters and receivers(30% smaller than current EW)
* Pilot tone squelch(defeatable for backwards compatibility with original EW systems)
* New battery concept(AA cells and rechargeable battery accessories)
* Transmitter battery status telemetry on all models
* Audio signal metering on transmitter LCD display
* External charging contacts on 300 and 500 series bodypacks
* XLR jacks on all rack-mountable units(including 100 series)
RECEIVER:* Operating Time EK:6-10h Depends on volume
* Weight approx. 170g
* Dimensions 82x64x24
* Squelch Low: 5dBV Mid: 15dBV Hi: 25dBV
* Current Consumption approx. 190mA(2x30mW)
* Power Supply 10,5-16V DC 2.4V DC nom.
* Adjacent Channel Rejection >70dB
* Image Rejection >80dB
* Sensitivity <2.5V
* Intermodulation Spacing >70dB
* Receiver Principle EM: True Diversity, EK: Non-Diversity
TRANSMITTER:* Weight approx. 1100g
* Power Supply 12V DC nom
* Dimensions 212x145x38
* Nominal Peak Deviation approx. 2.4V eff
Rf Outputs max. 30mW
