Multi-purpose set for mobile journalism and documentary. Includes a plug-on transmitter and clip-on mic that offers excellent speech intelligibility.
A broadcast quality sound solution. Providing the highest flexibility for your video sound and field recording applications.
A robust wireless microphone system that offers excellent sound quality, simple mounting and ease of use.
Multi-purpose set for mobile journalism and documentary. The powerful plug-on transmitter SKP 100 turns every wired dynamic microphone into a wireless transmitter while the easy to use clip-on microphone ME 2-II (omni-directional) offers excellent speech intelligibility during interviews.
Eventually, you'll most likely get to a point in your filmmaking career when you realize that audio quality is just as important as video quality when it comes to creating compelling content. And at a certain point, reliability and consistency become the top priorities when recording wireless audio while on set or in the field. Enter the evolution wireless G4 100 Seriesthe next level in your journey as a professional filmmaker.
The evolution wireless G4 100 Series is packed with features that make it possible to get you up and running fast and efficiently. Use the Easy Setup function to automatically scan and select the best frequencies around you and take full advantage of the UHF spectrum. With up to 100 meters of range and a battery life of 8 hours, it's easy to see how the durably constructed ewG4 transmitters and receivers will perform when you need them to.
The 112P, 122P, 135P and 100 ENG sets are all great options and vary depending on your needs. The 112P features our omni-directional ME 2-II lavalier microphone while the 122P features our cardioid ME 4 lavalier microphone. The 135P swaps the bodypack transmitter and lavalier mic for the SKM 100 handheld transmitter and MMD 835 cardioid capsule. For those that need a combination of both for a range of Electronic News Gathering applications, the EW 100 ENG G4 set includes the ME 2-II lavalier and adds the SKP 100 plug-on transmitter for your existing dynamic XLR microphone or a battery powered shotgun mic like the MKE 600.
Features• Rugged all-in-one wireless system with high flexibility for broadcast quality sound
• Excellent sound and construction quality
• Easy to use and fast setup time
• Powerful and reliable wireless transmission
• Range: up to 100 meters / 330 feet
• Up to 8 hours of operation time
SpecificationsFrequency Range: A: 516 - 558 MHz
Peak Deviation: 48 kHz
Powering: 3 V battery / 2.4 V rechargeable battery
Dimensions: Approx. 82 x 64 x 24 mm
Nominal Deviation: 24 kHz
Recieving Frequency: Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
Compander: Sennheiser HDX
Operating Time: Typically 8 h
THD, Total Harmonic Distortion: = 0.9 %
Modulation: Wideband FM
RF Sensitivity: < 1.6 V for 52 dBA eff S/N
Weight: (incl. batteries) approx. 160 g
Power Supply: 2 AA batteries, 1.5 V or BA 2015 accupack
Squalch: low: 5 dBV middle: 15 dBV high: 25 dBV
Audio Output: 3.5 mm jack socket: +12 dBu (mono, unbalanced)
Current Consumption:
at nominal voltage: typ. 180 mA
with receiver switched off: = 25 A
Temperature Range: -10 C to +55 C
Signal to Noise ratio: = 110 dBA
Asjacent Channel Rejection: = 65 dB
Reciever Principle: Adaptive diversity
Switching Bandwidth: up to 42 MHz
Intermodulation Attenuation: = 65 dB
Blocking: = 70 dB
SK 100 G4
Dimensions: Approx. 82 x 64 x 24 mm
Peak Deviation: 48 kHz
Max. Input Voltage: 3 Veff
Compander: Sennheiser HDX
Nominal Deviation: 24 kHz
Powering: 3 V battery / 2.4 V rechargeable battery
THD, Total Harmonic Distortion: = 0.9 %
Operating Time: Typically 8 h
Transmission Frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
Weight: (incl. batteries) approx. 160 g
Modulation: Wideband FM
Signal to Noise Ratio: = 110 dBA
Power Supply: 2 AA batteries, 1.5 V or BA 2015 accupack
AF Frequency response: Mic: 80 18,000 Hz Line: 25 18,000 Hz
RF Output Power: Max. 30 mW
Current Consumption:
at nominal voltage: typ. 180 mA
with transmitter switched off: = 25 A
Temperature Range: -10 C to +55 C
Switching Bandwidth: up to 42 MHz
Input Impedance: 40 kO, unbalanced / 1 MO
Frequency Stability: = 15 ppm
SKP 100 G4
Dimensions: Approx. 105 x 43 x 43 mm
Peak Deviation: 48 kHz
Max. Input Voltage: 3.3 Veff
Compander: Sennheiser HDX
Nominal Deviation: 24 kHz
Powering: 3 V battery / 2.4 V rechargeable battery
THD, Total Harmonic Distortion: = 0.9 %
Operating Time: Typically 8 h
Transmission Frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
Weight: (incl. batteries) (incl. batteries) approx. 195 g
Modulation: Wideband FM
Signal to Noise Ratio: = 110 dBA
Power Supply: 2 AA batteries, 1.5 V or BA 2015 accupack
AF Frequency response: 80 18,000 Hz
RF Output Power: Max. 30 mW
Current Consumption:
at nominal voltage: typ. 180 mA
with transmitter switched off: = 25 A
Temperature Range: -10 C to +55 C
Switching Bandwidth: up to 42 MHz
Input Impedance: 68 kO, unbalanced
Frequency Stability: = 15 ppm
ME 2
Connector: 3.5 mm jack
Cable Length: approx. 1.60 m
Sensitivity in Free Field, no Load(1kHz): 20 mV/Pa
Frequency Response: 50 to 18,000 Hz (ME 2-II)
Transducer Principle: pre-polarized condensor microphone
Equivalent Noise Level: 36 dB
Max. Sound Pressure Level: 130 dB
Pick-up Pattern: omni-directional

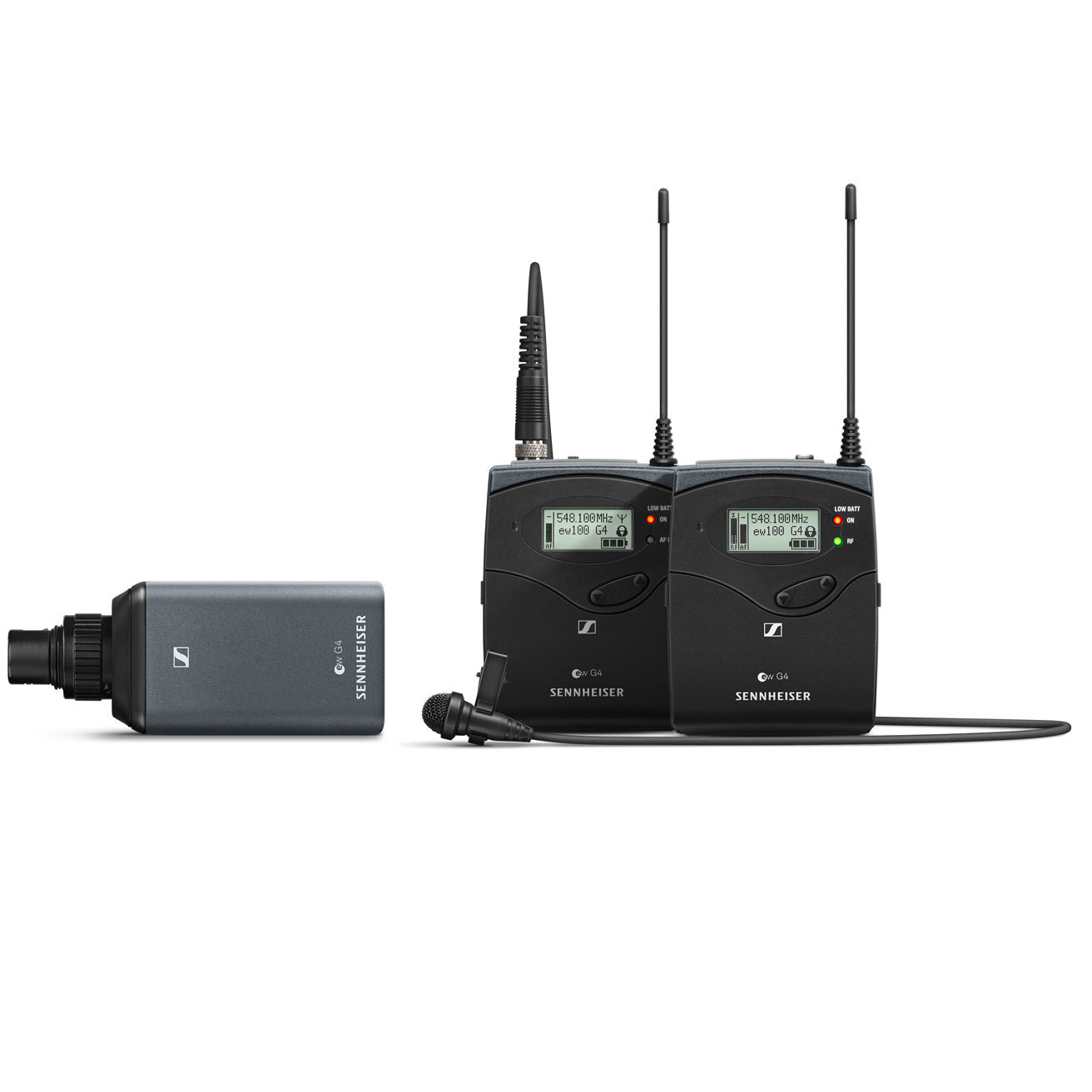

What's in the Box:
• EK 100 G4 camera receiver
• SK 100 G4 bodypack transmitter
• SKP 100 G4 plug-on transmitter
• ME 2 clip-on microphone
• 6 AA batteries
• CA 2 camera adapter
• CL 1 3.5 mm jack cable
• CL 100 XLR to 3.5 mm jack adapter cable
• quick guide
• safety guide
• manufacturer declaration sheet
