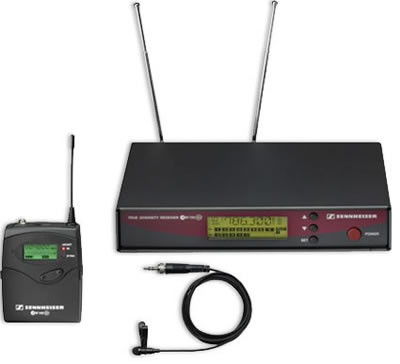

Body pack Transmitter w/ME2 omni lavalier and rack mountable Receiver.
FEATURES:• Autoscan on all receivers for simple and secure frequency selection.
• 1440 frequencies within a 36MHz switching bandwidth for greater tuning flexibility.
• Robust metal construction for durability.
• Smaller bodypack transmitters and receivers(30% smaller than current EW).
• Pilot tone squelch(defeatable for backwards compatibility with original EW systems).
• New battery concept(AA cells and rechargeable battery accessories) .
• Transmitter battery status telemetry on all models
• Audio signal metering on transmitter LCD display.
• External charging contacts on 300 and 500 series bodypacks.
• XLR jacks on all rack-mountable units(including 100 series).
Receiver:• Operating Time EK:>8h
• Weight EM: approx.1100g EK: approx. 158g
• Dimensions EM: 212x145x38 EK: 82x64x24
• Squelch Low: 5dBV Mid: 15dBV Hi: 25dBV
• Nominal Peak Deviation XLR: Bal.:-24 to +18dBu Jack: Unbal.:-30 to +12dBu(adjustable in 6 dB-steps)
Current Consumption EM: approx.200mA EK: approx.130mA
Power Supply EM: 10.5-16V DC, 12V nom. EK: 2.4V DC
Adjacent Channel Rejection >65dB
Image Rejection >70dB
Sensitivity <2.5V
Intermodulation Spacing >65dB
Receiver Principle EM: True Diversity, EK: Non-Diversity
Booster Dc Supply None(only via antenna splitter ASP2)
Transmitter:• Weight SK:approx.158g SKM:approx. 450g SKP:approx. 195g
• Power Supply 2.4V DC
• Dimensions SK:82x64x24 SKM:d=50x225 SKP:105x43x43
• Nominal Peak Deviation Mic:1.8V eff. • Line:approx. 2,4Veff
• Operating Voltage >8h
• Current Consumption <170mA <250A
Rf Outputs typ. 30mW
• Input Impedance Mic:10kOhm Line:1MOhm
• Max Sound Pressure Level approx. 154dB
TECNICAL SPECIFICATIONS:• Frequency Range 518-554, 626-662, 740-776, 786-822, 830-866MHz
• Switchable Frequencies 1440
• Af Freq Response 40-18000Hz
• Signal To Noise Ratio >110dB
• Compander System HDX HDX
• Pilot Tone 32768kHz, deafeatable
