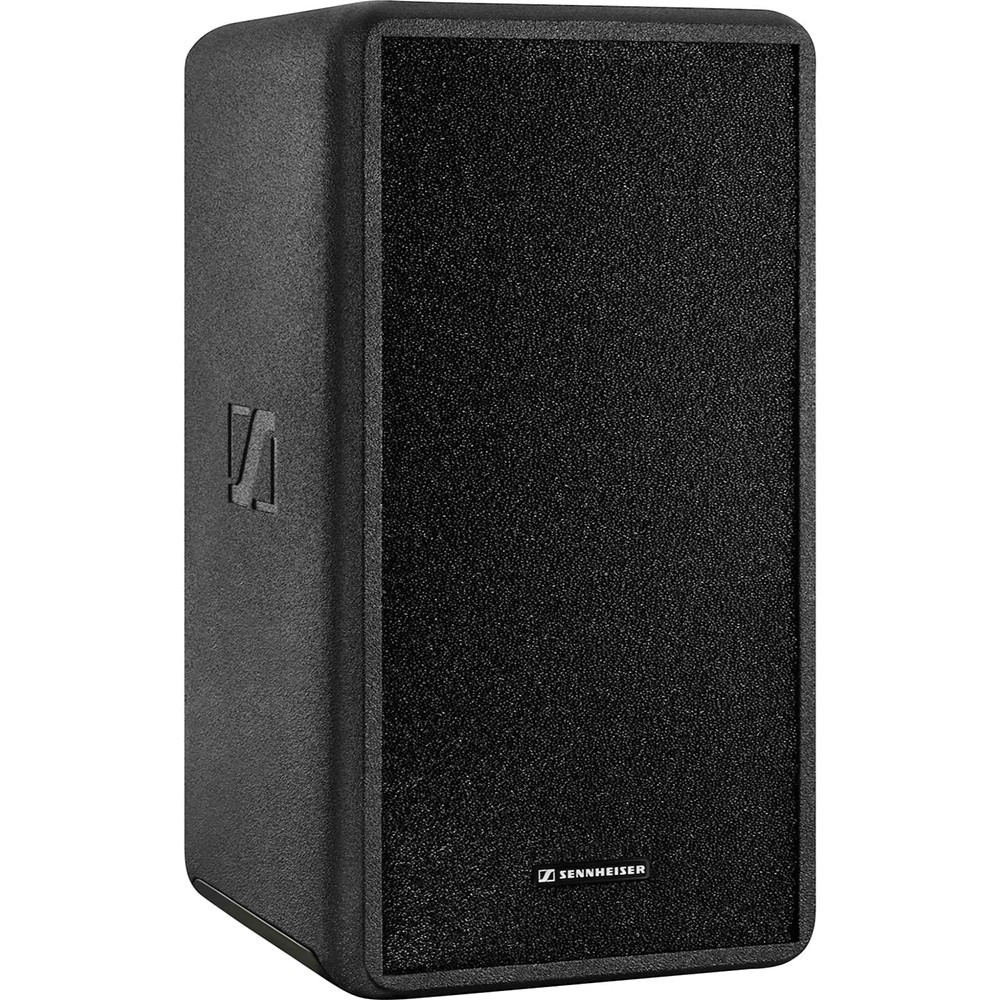

The LSP 500 PRO is a wireless two-way audio system for professional use. It has been designed to address audiences at indoor and outdoor events without the need of any power or audio cables. The LSP 500 PRO allows you to install up to three receivers for wireless microphones. You can also play music wirelessly via a Bluetooth connection. Alternatively, you can use the integrated media player to play music from your USB storage device. For larger events you can send the sum signal of one LSP 500 PRO via a wireless transmitter to other LSP 500 PRO devices. The LSP 500 PRO is remote controllable via iPad App or Windows Remote Control Software, which serves as a mixing console and permits the control of up to 20 LSP 500 PRO simultaneously.
Features
• Complete wireless integrated PA system
• Wireless control for up to 20 LSP 500 PRO via iPad or Windows device
• Integrated Bluetooth audio streaming
• Integrated USB player/recorder
• Mixing function for:
up to 3 wireless microphones
(not included) USB player
(not included) Bluetooth audio input
2 wired audio inputs
• Professional 2-way speaker
• Battery powered
• 3 slots to integrate optional ew G3 wireless microphone receivers
Dimensions: 290 x 550 x 320 mm
Frequency response: 65 18000 Hz (-10 dB)
Sound pressure level (SPL): 110 dB SPL (DhT 10% free space)
Weight: Approx. 13.6 kg without Receiver
Charging time: approx. 2,5 h / battery, 5 h for both
Operating temperature: 0 C - 50 C
Power supply: CA 90-240 V, 50-60 Hz
Acoustic amplification: class D
Acoustics: 2-way, closed
Audio-Output-Power: 55 W continuous, 120 W peak
Battery Specification: 2 Lithium-Ion batteries 14.4 V/ 4.4 Ah, rechargeable
Speaker type: 8" woofer, 3/4" compression driver, passive crossover
FAQDoes the LSP 500 PRO system include the microphone?No. While the LSP 500 PRO can accommodate up to three (3) half rack components these components are purchased separately.
How do you transmit audio from the PRIMARY LSP 500 PRO to the SECONDARY LSP 500 PROs?To create a unified wireless speaker system all audio sources would be input to the PRIMARY LSP 500 PRO. In one of the component slots of the PRIMARY LSP 500 PRO you would connect a SR 300 IEM G3 transmitter and into one of the component slots of each SECONDARY LSP 500 PRO you would connect an EM 300 G3 receiver. The SR 300 IEM G3 transmitters takes all audio input to the PRIMARY LSP 500 PRO and transmits it to the EM 300 G3 receivers in the SECONDARY LSP 500 PRO units.
Are the batteries of the LSP 500 PRO "hot swappable"?If you have two (2) batteries in the LSP 500 PRO then you can remove the battery that is not in use and replace it with a freshly charged battery.
How much operation time will the battery of a LSP 500 PRO provide?Fully charged battery packs will provided approximately 6 hours of operation (approximately 3 hours per battery).
How long does it take to charge a LSP 500 PRO battery pack?A complete charging cycle will take approximately 5 hours (approximately 2.5 hours per battery pack) if the LSP 500 PRO is switched off. If the LSP 500 PRO is in use then the battery charging time would be extended.
Can the LSP 500 PRO be powered via an electrical cable?Yes. The LSP 500 PRO can be powered either via the battery pack or via a power cable (referred to as a "mains cable").
