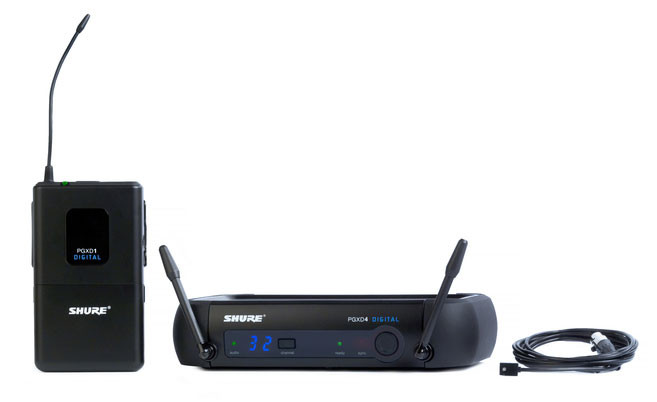

The PGXD14/93 Lavalier Wireless System is part of the PGX-D wireless systems family. PGX-D Digital Wireless, with state-of-the-art, 24-bit digital audio and trusted Shure microphones, delivers stunning sound and a strong, clean RF signal. Includes PGXD4 receiver, PGXD1 bodypack transmitter, WL93 lavalier microphone, tie clip, power supply, 2 AA batteries, carrying case, and user guide.

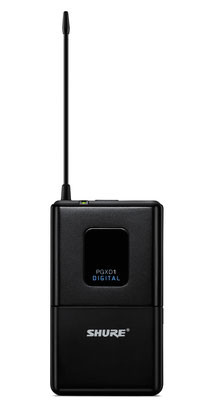

PGXD1 Bodypack TransmitterPowerful yet compact, the PGXD1 transmits wireless audio from instrument or microphone sources with pure digital clarity and rock-solid reliability.
• Rugged, compact bodypack with belt clip
• 20 Hz 20 kHz frequency range captures every nuance of tone
• Power, mute, and battery status LED
• 200 ft (60 m) operating range
• Up to 10 hours of continuous use from 2 AA batteries
• Recessed dial on side provides 26 dB of continuously adjustable gain
• Lockable interface prevents accidental setting change

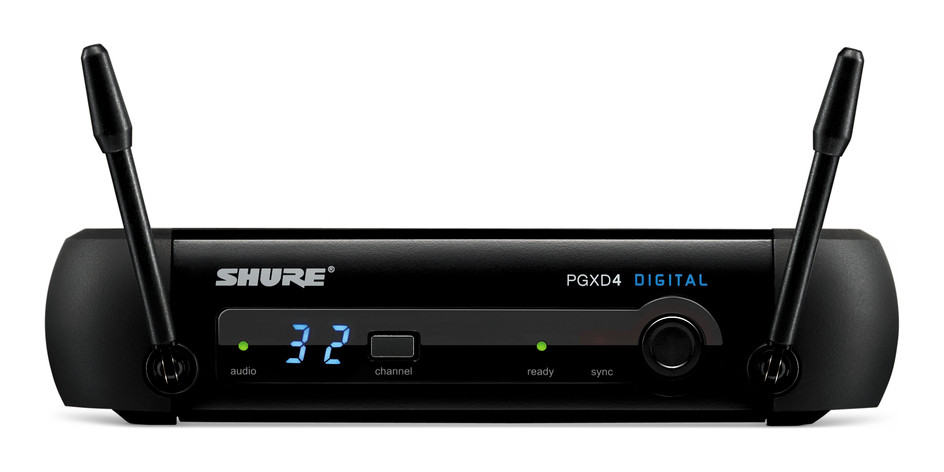

PGXD4 Wireless ReceiverThe Shure PGXD4 receiver offers innovative 24-bit, 48 kHz digital audio technology for wireless that sounds like wired. True digital diversity means two antennas and two independent receivers are constantly working to provide rock-solid RF signal, and one touch scan finds a clear frequency instantly, making set up a snap.
• 24-bit / 48kHz digital technology for incredibly accurate sound
• Automatic frequency selection locates a clear channel instantly
• One-touch sync automatically syncs the transmitter and receiver
• True digital diversity for rock-solid wireless signal reliability
• Up to 5 compatible channels per frequency band
• 1/4" and XLR audio outputs
• Included padded carrying case for portability and protection

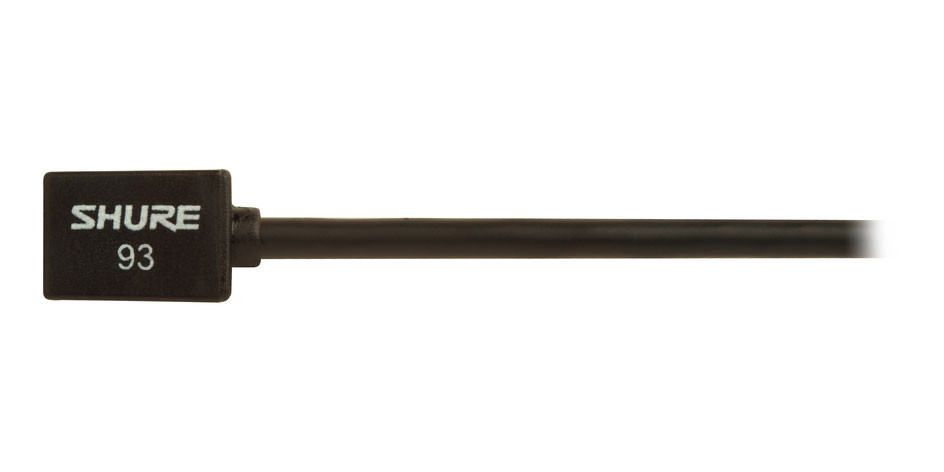

WL93 Lavalier MicrophoneModel WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable.
All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications.
All WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.
• Subminiature lavalier design; ideal size for theater, television, broadcasting, video, film, and sound reinforcement
• Small, inconspicuous mounting hardware
• Full, clear sound comparable to larger microphones
• Smooth extended frequency response with presence rise specially tailored for chest-worn microphone operation
• Controlled low-frequency rolloff reduces low-frequency clothing and room noise
• Low distortion, wide dynamic range
• Uniform omnidirectional polar pattern
• Preamplifier assembly (SM93) can be pocketed, strapped to the body, or clipped to belt or waistband
• Wide-range phantom powering (SM93) accepts all commonly used voltages
