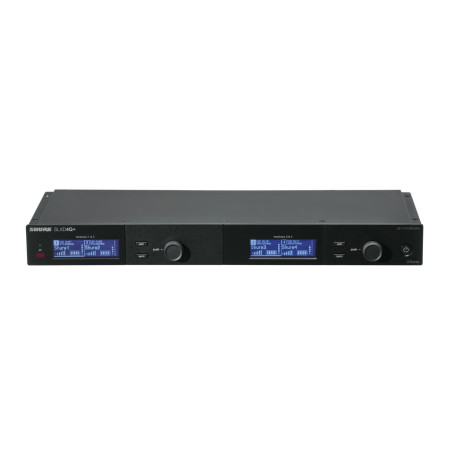

The Shure SLXD4QDAN+ is a quad-channel digital wireless receiver compatible with all SLX-D transmitters and housed in a rugged single-rack chassis with Dante networking capabilities and two removable antennas. It is ideally suited for rack mounting in portable flight cases and long-term installations for small- to medium-sized venues, event spaces, conference rooms, houses of worship, and education facilities.
The system delivers crystal-clear, 24-bit digital audio with a wide dynamic range for natural vocal reproduction to presenters, vocalists, clergy, lecturers, and performers. It operates in the UHF band and uses Digital Predictive Switching Diversity technology to protect the transmission from interference and deliver a solid, reliable RF signal without dropouts.
The all-metal rackmount SLXD4QDAN+ receiver offers intuitive LCD interfaces with meters for RF and audio output. It also offers 60 dB of output gain control, and both mic/line XLR and 1/4" instrument outputs for each channel. Additional features include automatic frequency scanning and IR sync to easily link the transmitter (available separately) and receiver to the same frequency.
You can run up to 32 mics simultaneously in the same space. RF cascading allows you to easily create an 8-channel receiver system simply by connecting two SLX-D Quad receivers. Dual Ethernet ports provide Dante audio networking and control capabilities.
• Four channels in one rack space
• Transparent 24-bit digital audio with 118 dB dynamic range
• Rock solid RF with 138 MHz wide-tuning range for greater geographical coverage:
Up to 11 simultaneous systems in 6 MHz TV bands
Up to 14 simultaneous systems in 8 MHz TV bands
• Dante Audio Networking, carried on a single Ethernet cable
• Automatic Setup once linked, SLX-D+ receivers and transmitters stay connected, despite any RF interference
• With ShowLink Ease, transmitter parameters can be adjusted remotely over the air from the linked receiver, including:
Changing the transmitter frequency once an open frequency is identified
Adjust power output level
Lock and unlock transmitter controls
Transmitter firmware updates
• Monitor RF status and control receiver and transmitter parameters with Wireless Workbench desktop software, or remotely with the WWB Mobile app over Wi-Fi or Bluetooth
• Patented Shure Digital Feedback Reducer software is embedded in every SLX-D+ receiver, to automatically reduce unwanted audio feedback, should it ever occur
• Each SLX-D+ component and system ships with AES-256 Encryption installed, for complete and secure peace of mind
• Audio Summing matches receiver output to available mixer channels (4, 3, 2, or 1)
• 4 XLR and 4 1/4" outputs and 2 local ethernet connections
• RF Cascade creates an 12-channel system by linking three SLXD4Q+ together, no other accessories required
• Bias Voltage power supply management
• Digital predictive switching diversity
• Rugged metal construction
