Built upon the UP4 battery-powered receiver, UP wireless systems provide flawless clarity for broadcast and video.

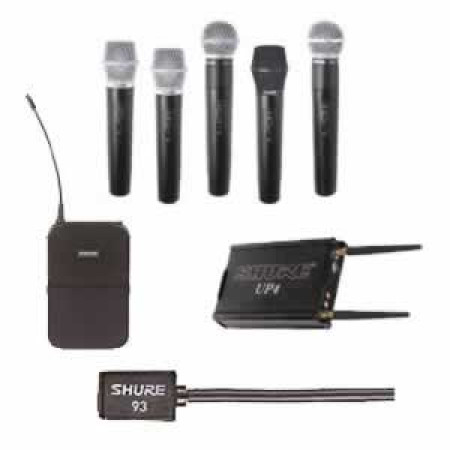

SYSTEM INCLUDES:• WL93 Lavalier Mic.
• UC2 Handheld Transmitter.
• UP1 Bodypack Transmitter.
• UP4 Diversity Portable Receiver.
WL93 Lavalier Mic:Model WL93 Microphones are economical omnidirectional, subminiature, lavalier, condenser microphones designed for general speech applications where a visually unobtrusive microphone is desirable. All WL93 models are supplied with a mounting block with attached tie bar, a sew-on mounting bracket, and an acoustic windscreen to minimize wind noise in outdoor applications. All WL93 models include a cable terminated with a 4-pin mini connector which connects directly to a Shure wireless body-pack transmitter.
UC2 Handheld Transmitter:The UC2 handheld transmitters are available in four microphone options that feature microphone capsules from some of Shure's most popular microphones, including the SM58, Beta 58A, SM87A, Beta 87A and Beta 87C.
Features:• Frequency-agile; a choice of over 100 user-selectable frequencies (international versions may vary).
• Combined power on/off and mute switch.
• Three-segment battery fuel gauge.
• Adjustable audio gain control.
• Internal antenna.
• Eight hours battery life.
• 9V battery included.
• Rugged plastic case design.
UC1 Bodypack Transmitter:The UC1 body-pack has a slim, low-profile design, and functions with the full line of Shure lavalier and instrument microphones as well as guitar cables.
The UC1 comes with a 4-pin mini connector. The UC1L comes with a LEMO input connector.
Features:• Frequency-agile; a choice of over 100 user-selectable frequencies (international versions may vary).
• 4-pin mini connector or optional LEMO input connector.
• Combined power on/off and mute switch.
• Remote audio mute connector allows external audio and/or RF muting capability.
Two-position attenuator switch (0 and -20dB) to accomodate different input sources.
• Adjustable audio gain control.
• Flexible 1/4-wave antenna.
• Eight hours battery life.
• 9V battery included.
• Rugged plastic case design.
UP4 Diversity Portable Receiver:Designed for professional broadcasters and videographers, the UP4 Portable UHF Wireless Receiver provides the perfect combination of crystal-clear audio and rugged dependability - at a price that fits easily into most budgets.
Engineered to avoid interference and deliver a clear, steady signal:
• Frequency Agility - provides over 100 selectable UHF channels
• IF (Intermediate Frequency) Filtering - selects the desired signal
• Phase Locked Loop (PLL) Circuitry - ensures the signal is steady
• Tone Key Circuitry - blocks out other RF signals that could interfere with reception when the transmitter is off
• Noise Squelch Circuitry - analyzes signal quality to evade noise bursts when the transmitter is off
• Microprocessor-controlled Predictive Diversity - Patent pending Shure technology anticipates dropouts before they occur, switching antennas when necessary for consistent audio and RF reception.
