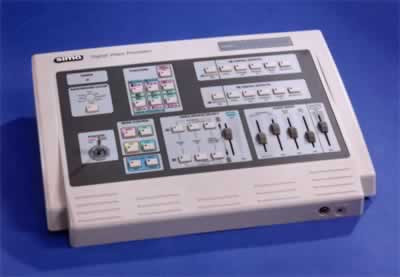

For professional-quality mixing results. Digital signal processing produces vibrant colors and crystal clear picture quality.
FEATURES:• Digital effects - Use strobe, mosaic, paint, still and negative effects to maximize the impact of your images on both A and B channels. Select the size and position of special effects areas with joystick accuracy.
• Picture in Picture - Create PIP windows and use the joystick to move PIP windows to any location on the screen.
• Wide range of wipe patterns - Circle, bar, cross-hatch, corner and wedge wipes along with fade to black and fade to white effects. You can pre-set the speed of wipes and fades for one-touch automatic control.
• Chroma Key and Luma Key - Use the chroma key (blue screen) or the luminance key (black screen) to isolate images and superimpose onto other scenes.
• Four inputs - two audio/video inputs and two s-video inputs give editorial flexibility and increase options.
SPECIFICATIONS:Source Input x 2 (Source1,2):• Video Input:
1.0Vp-p 75 NTSC (PAL) composite signal, Pin Jacks
• Y/C Input:
Y signal: 1.0 vp-p 75
C signal: 0.3Vp-p 75V, Mini Din 4-pin connector
• Audio Input:
-6dBs/20k Pin Jacks (L/R)
• External Sound Input:
MIC input: x 1 (MJIC); -6dBv/600
AUX input: x 1 (AUX); -6dbs/20k , Pin Jacks (L/R)
Recording Output x 2 (Video out 1,2):• Video Output:
1.0Vp-p 75 NTSC (PAL) composite signal, Pin Jacks
• Y/C Output:
Y signal: 1.0 vp-p 75
C signal: 0.3Vp-p 75V, Mini Din 4-pin connector
• Audio Output:
-6dBs/1 k Pin Jacks (L/R)
Monitor Output x 2 (monitor output)
Video Output: 1.0Vp-p 75 composite signal, Pin Jacks
• Headphone Output: x 1 (Headphone); -20dBv -80dBv, 8 unbalance, phone-5 jack
• Effects Video:
Still, Strobe, Mosaic, Negative, Wipe, Mix, Fade, Picture-in-Picture,
Chroma key, Luminance key
Back color White, Yellow, Cyan, Green, Magenta, red, Blue, Black
• Wipe patterns: 96 patterns
• S/N (typical) Video: 48 dB (composite), 50dB (Y/C) Audio: 60 dB
• Power Source: 120V (240 AC)
• Power Consumption: Approximately 15W
• Dimensions: 400(W) x 300 (D) x 55 (H) mm
