Sony CDPD500 Professional CD Player

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

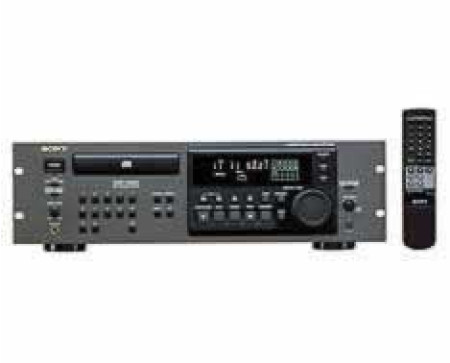

sony cdpd500
Images may show accessories or configurations not packaged with this item.
The CDPD500 is a rack mountable true professional CD player that fits seamlessly into any digital system. This unit offers a jog shuttle dial for frame accurate cueing, an adjustable auto fader, pitch control up to 12%, and a wireless remote.


• Jog Shuttle Dial for CD frame accurate cueing: Cue to either TRACK or INDEX: Cue/Standby mode
• Direct track access on front panel
• Lock to external digital word clock
• Adjustable Auto Fade on front panel
• Adjustable Auto Fade In/Out 1
• Accommodates both 8cm (3-inch) and 12 cm (5-inch) compact discs
• Built-in digital outputs conforming to the AES/EBU and unbalanced (IEC-958) formats
• Built-in DIN 8-pin remote control connector enabling fader start/stop form a mixing console
• Auto cue playback for rapid start from a point where modulation is detected on the disc
• Variable speed playback (+ 12.5% in 0.1% steps)
• Various playback modes including programmed playback, delete playback, etc.
• 19-inch rack mountable
• Frequency Response: 5Hz-20kHz(+0.3dB at 10kohm Load)
• Signal-to-Noise ratio: More than 100dB(20kHz LPF IHF-A Weight)
• Dynamic Range: More than 98dB
• THD: Less than 0.004%(at 1kHz 0db 20kHz LPF)
• CH Separation: More than 100dB at 1kHz(20kHz LPF)
• Remote Interface: Parallel DIN 8 pin (2 mode); Serial RS232C(D-sub 9-pin)
• Analog Output Impedance: XLR-3100 ohm; RCA Pin-200 ohm; H.P. Phone 150 ohm
• Load Impedance: XLR-10k ohm; RCA-10k ohm
• Max Output Level: XLR24dBS, RCA9dBs
• Adaptable Load Impedance: AES/EBU(XLR-3) 110ohm; IEC958(RCA Pin) 75ohm
• Digital Output Impedance: AES/EBU(XLR-3)35ohm; IEC958(RCA Pin)75ohm
• Word Sync Input Impedance: (BNC) Input 22kohm/75ohm Switchable
• Input Level: 2V p-p
• Lock Range: 44.1kHz + 12.5% (38.59kHz-49.6kHz)
• Weight: 16lbs
