The 890.FS is the first cartridge to be shipped with 2 types of styli and is designed for use with DVS. The 2 spherical styli are designed for scratching and general playback. The 2 elliptical styli are designed for hi-quality playback for recording of records into the DVS system or any other application where sound quality is critical. The 890.FS also includes a stylus mountable dust brush which sweeps dusts off of the groove of the record during playback and recording.

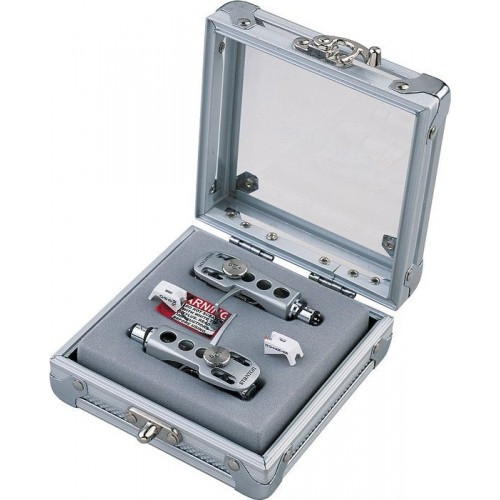

This MP4 package includes two matched cartridges, mounted on tone-arm like devices, inside a small and practical road-worthy clear "flight-case".
FEATURES:• Includes two types of styli for recording and playback applications
• Designed for use with DVS
• New industrial design
Perfect for:• Digital DJs
• Hip-hop / Scratch DJs
• Club DJs
• Record Archives
Technical Specifications:Spherical Stylus• Stylus Type: Spherical 0.7 mil
• Special High Polish
• Frequency Response: 20 to 17 kHz
• Nominal Output @ 1kHz: 6.5mV
• Channel Separation @ 1 kHz: 35dB
• Channel Balance @ 1 kHz: within 2dB
• Tracking Force: 2 to 5 grams
• Stylus Tip: .7 mil Spherical
• DC Resistance: 1300 ohms nom.
• Inductance: 970 mH
• Cartridge Weight: 5.7 g
• Tracking Ability: 80 @ 3 grams
• Recommended Load: 47k ohms and 275 pF
• Replacement Stylus: N 890
Elliptical Stylus• Stylus Type: Elliptical .4 x .7 mil
• Special High Polish
• Spherical 0.7 mil
• Frequency Response: 20 to 20 kHz
