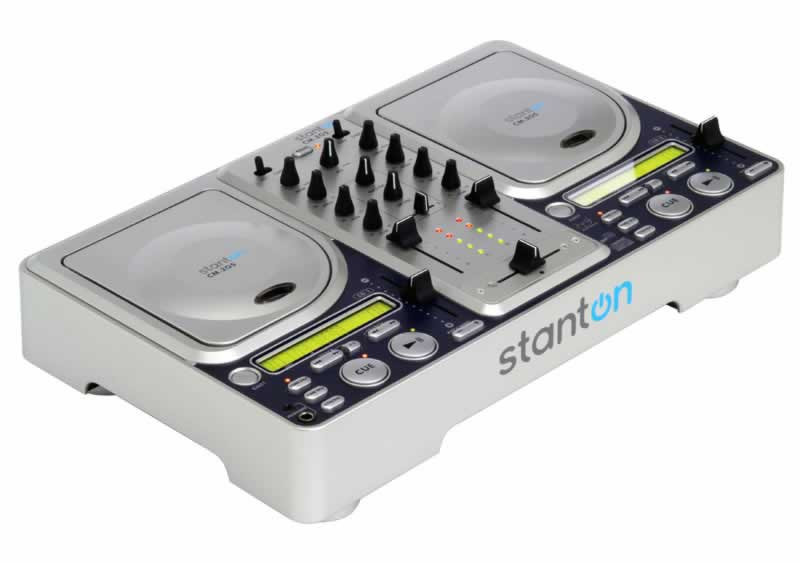

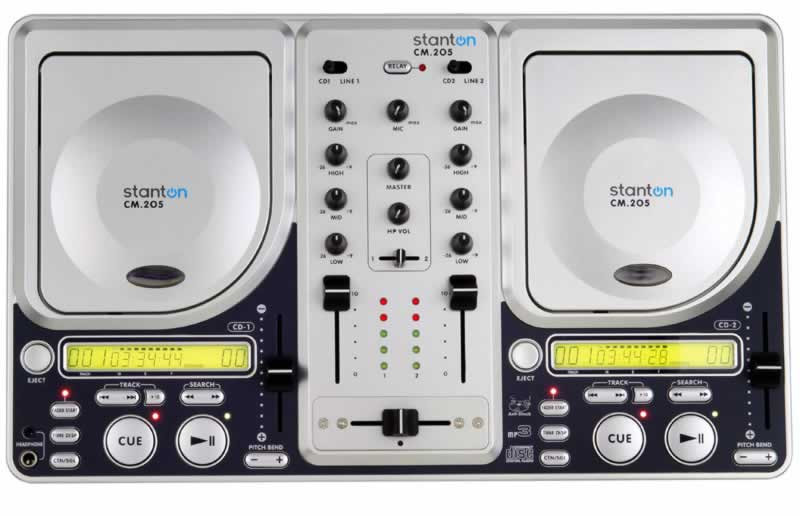

This versatile CD mixer offers up serious options with style and convenience for the professional DJ. The CM.205 combines the benefit and utility of a dual top loading CD player with anti-shock buffer and full MP3 functionality. A solid Stanton 2 channel mixer completes this All-In-One "hybrid" solution for the contemporary DJ without sacrificing traditional quality.
FEATURES:MP3 playback• 20-sec. anti-shock buffer per side prevents CD "skips"
• 8% pitch control with pitch bend
• Fader start
• Relay play
Mixer section includes: • 2 line inputs to connect iPod, other MP3 device or more CD players
• Gain and 3 band EQ (+9/-26) per channel
• User replaceable crossfader
• 1/4" mic input with volume control
• Headphone output with cue pan
• Optional rack ears included
iPod Ready: • 1 iPod cable included for plug and play connectivity
SPECIFICATIONS:Mixer Section:• Frequency Response (line to master output) : 20 Hz to 20 kHz +/- 2 dBTHD+N (line): < 0.01% at 1 kHz
• S/N Ratio: (Dynamic Range): > 90 dB
• Noise Floor (line in put to any output): < -85 dBV
• Channel Fader Kill: < -85 dB @ 1 kHz
• Cross Fader Kill: > -75 dB at 1kHz, 0 dB
• Channel EQ:
Hi +9 dB, -16dB @13Hz
Mid +9 dB, -23dB @1Hz
Low +9 dB, -23dB @70Hz
CD SECTION• Frequency Response (CD to master output): 20 Hz to 20 kHz +/- 2.0 dB
• THD+N with 20 KHz Low Pass Filter: 0.05% at 1 kHz
• S/N Ratio (ref: Full-Scale): >85 dB
MICROPHONE:• Frequency Response (mic to master output): 20 Hz to 20 kHz +/- 2.0 dB
• THD+N with 20 KHz Low Pass Filter: 0.05% at 1 kHz
• S/N Ratio (ref: Full-Scale): >110 dB

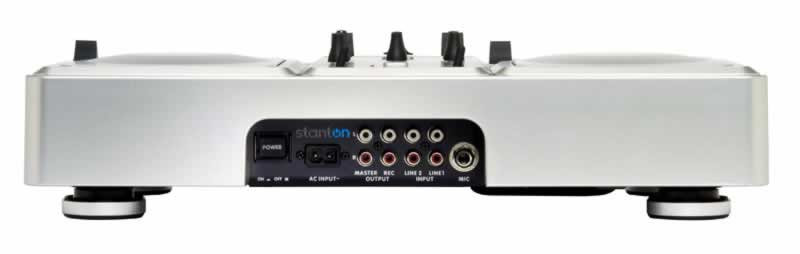

INPUT/OUTPUTS• Line Inputs: 2 x Stereo RCA -14 dBV/nominal input level 18 k Ohm unbalanced
• Mic Input: 1x TRS -54 dBV/nominal input level 10k Ohm Balanced
• Master Output: 2x RCA unbalanced nominal load 10k Ohms
• Record Output: 2x RCA unbalanced -10dBV into 10k ohm load
• Headphone Output: 1x 1/4" Phone Jack 1x 1/4" Phone Jack Max Load 32 Ohms 1x 1/8" Mini Phone Jack
GENERAL• System: Compact Disc Digital Audio
• Disc Loading: Top Loading
• Display: 11 Digit LCD Display
• Pitch Control Range: Within +/- 8%
• Pitch Bend: +/- 8%
• Pitch Accuracy: +/-0.15%
PHYSICAL SPECIFICATIONS• Dimensions: 440 (W) x 266(D) x110.5(H) mm
• Weight: 4.4 Kgs.
• Operation Temp.: 0 C to 40 C
• Storage Temp: -20 C to 50 C
• Power Source: US: 120V, 60Hz, AC 14W
