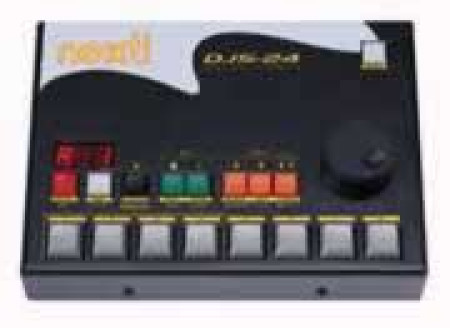

The DJS-24 features a 24-bit DSP engine which guarantees the highest sound quality.
FEATURES• AUDIO A/D Converter: 16Bit bitstream
• D/A Converter: 16Bit bitstream
• Audio processing: 24Bit DSP
• Frequency response: 20 - 10,000 Hz
• S/N Ratio: 90 dB
• Max. input level: 3.1 Vpp (high sensitivity), 6.2 Vpp (low sensitivity)
• Max. output level: 1.36 Vpp at 10 kOhm
• Sample frequencies: 22 - 32 - 44.1 KHz
• MEMORY 2MB: 1 DRAM installed - standard version
• 4MB: Memory module with 1 DRAM installed
• 8MB: Memory module with 3 DRAM installed
• FUNCTIONS Polyphony: Max. 4 voices
• Max. number of samples: 16 (2MB and 4MB installed), 32 (8MB installed)
• Sequencer: Max. 4 sequences of 24 samples
• PC link: Parallel port, Windows PC companion software included
• Dimensions: 8W x 6H x 1.5D inches
