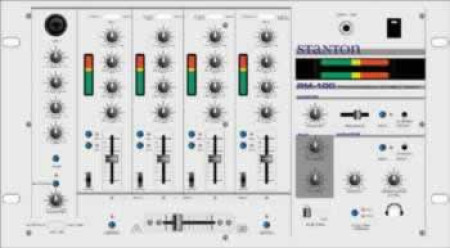

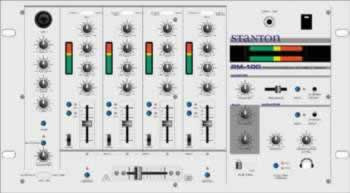

Stanton RM-100 4 Channel Mixer

FEATURES:
• 4 Channel stereo pre-amp mixer.
• 9 line and 4 phono inputs.
• 3 mic inputs. (combo and 1/4" connectors)
• Gain and 3 band EQ (+9/-26 dB) per channel.
• Effects send and return assignable to master out, each channel (including all mics), and headphones for monitoring.
• Mic channel features 2 band EQ, independent level controls, ON/OFF switch, and VCA controlled autotalk function.
• Sub-mic on channel 4 enables use of 3 band EQ and panning.
• Fader start.
• Fully assignable crossfader. (A, B, bypass)
• Master section with level and balance controls and mono/stereo switch.
• Beat indicators.
• Balanced XLR master output.
• Booth output.
• Cue section features, stereo/split function, cue pan and level control.
• Cue pan fader is assignable to booth output for in-booth monitoring.
• Input and output LED meters.
• 12V light BNC input.

SPECIFICATIONS:
• Line inputs: 8 (RCA), 150 mV / 27K ohm
• Phono inputs: 4 (RCA), 3 mV / 47K ohm
• DJ mic input: 3 (XLR, 1/4"), 2.45 mV / 3K ohm
• Effect Send: 1 (1/4"), 775mv
• Effect Return: 1 (1/4"), 245mv
• Master output: 1 (RCA), 1.2 V / 1K ohm
• Booth output: 1 (RCA), 1.2 V / 1K ohm
• Record output: 1 (RCA), 245 mV / 10K ohm
• Headphone output: 1 (1/4"), 32 - 200 ohms recommended
• Frequency Response: 20 Hz - 20 kHz, +/- 2 dB
• Tone Control : + 9/-26 dB (Hi, Mid, Low)
• Mic Tone: Hi/Mid/Lo +/-10 dB
• Gain Control: 0-20dB
• S/N Ratio: Less than 70dB
T.H.D: less than 0.2%
• Dimension(LxWxD): 19" x 10.5" x 4" (482 x 267 x 102 mm)
