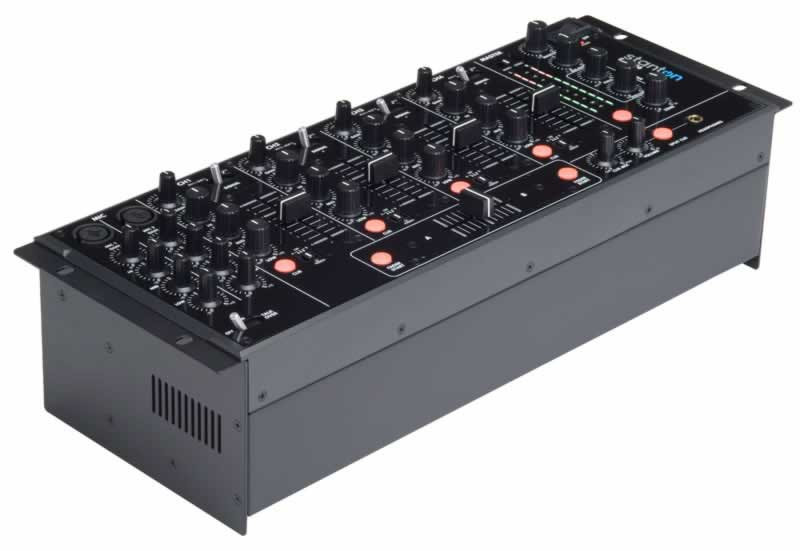

Stanton RM.416 4-Channel 19" DJ Rack Mixer w/ Sub Out, USB connection

stanton rm416
stanton rm416 Stanton RM.416 4-Channel 19" DJ Rack Mixer w/ Sub Out, USB connection Stanton RM.416 4-Channel 19" DJ Rack Mixer w/ Sub Out, USB connection
Images may show accessories or configurations not packaged with this item.

Be the first to review this product

Unavailable Discontinued or no longer available.
Sorry, this item is discontinued or no longer available from us. We've left this page up for reference only. Check out some of the other great alternatives on this page or click below to see if it can still be found elsewhere.
Buy on Amazon
The RM.416 is Stanton's latest addition to the RM (Rack Mount) series of mixers. With four traditional channels coupled with three microphone inputs the RM.416 is a perfect mixer for the most demanding mobile or club DJ. In addition to a vast array of traditional connectivity the RM features a USB connection for either playing music from your favorite DJ application or recording your mix in real time.

Additionally the RM.416 features a subwoofer output with built-in crossover control minimizing the need for an external crossover while maintaining the ability to adjust the output to perfectly match your sound system.

All of these features are packed into a 4 space rack unit with rugged metal inner chassis ensuring that the components are protected from damage and maintaining a consistent feel through the long life of the product.

• 4 Channel 19" rackmount mixer
• Soft power on/off for silent operation
• 2 Front panel microphone inputs with Gain and 3-band EQ
• USB connection for recording to or playback from a computer
• 3 Band EQ per channel (-26 dB to +10 dB)
• Subwoofer output with gain and crossover (40Hz-200Hz) control
• VCA crossfader reduces noise and improves life of fader
• User replaceable crossfader and linefaders
• Balanced XLR master output with trim control
• Balanced 1/4" zone output (Booth/Aux out)
• 3 Microphone, 8 stereo line, and 3 stereo phono/line switchable inputs
• Talkover control for front panel microphone inputs
• A / B / Bypass crossfader assign per channel
• Signal indicator for each channel
• 10 segment LED metering for master output
• Versatile cueing section with cue/master mix control
• Illuminated CUE and Fader Start buttons
• Unbalanced Stereo RCA record output
• Internal power supply (AC 110-240V switchable)
• Fader start control for triggering external CD players with crossfader • Mono / Stereo switch for master output

Input / Output Impedance & Senitivity
• Frequency Response 20 Hz to 20 kHz +2/-3 dB
• THD+N (line) < 0.05% at 20 Hz to 20 kHz
• S/N Ratio: Line (ref to Max. Level) Dynamic Range -80 dBV
• Crosstalk (Channel to Channel) > 70 dB at 1kHz
• Fader Kill Crossfader: < -75 dB at 1 kHz
• Channel fader: < -75 dB at 1 kHz
• Mic Talkover -14 dB
• Channel EQ 3 band type
Hi: +10, -26 dB
Mid: +10, -26 dB
Low: +10, -26 dB
• Mic EQ 3 band type
Hi: +12, -12 dB
Mid: +12, -12 dB
Low: +12, -12 dB
• Fader Start 2 (1/8") Control outputs
• Line Inputs x16 (RCA) x8 Stereo Line inputs (3 switchable from phono), -14 dBV / 20 k Ohm
• Phono Inputs x6 (RCA) x3 Stereo Phono inputs, -50 dBV / 47 k Ohm
• Mic Inputs x2 (XLR) Mic inputs, -54 dBV / 10 k Ohm x1 (1/4") Mic input, -54 dBV / 10 k Ohm
• Master Outputs x2 (XLR) Stereo Balanced output, +4 dBm / 600 Ohm x2 (RCA) Stereo Unbalanced output, 0 dB / 300 Ohm 0 dB - Kill trim control
• Subwoofer Output x2 (1/4") Mono Balanced output, +2 dBm / 600 Ohm 40 Hz - 200 Hz LP Filter Control
• Zone Output x2 (1/4") Stereo Balanced output, +4 dBm / 600 Ohm
• Headphone Output x1 (1/4") Stereo Headphone output, +9.5 dBV /33 Ohm
• Record Output X2 (RCA) Stereo Unbalanced output, -10 dBV / 1 k Ohm
x2 Stereo channels output (routed to CH4)
x2 Stereo input (from master bus)
WDM / CoreAudio Class Compliant

Additional Information

Product ConditionNew - On Clearance
