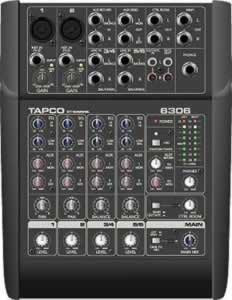

Its small size belies its many features, including two mic inputs, two instrument inputs, two stereo line inputs, two aux sends, a stereo aux return, tape in and out, and stereo control room and phones outputs in addition to the main outputs.
TECHNICAL SPECIFICATIONS: • Frequency Response:
Mic Input to any Output (Trim at 0 dB):
+0, -1 dB, 20 Hz to 20 kHz
-3 dB, 10 Hz to 80 kHz
• Distortion:
THD and SMPTE IMD; 20 Hz to 20 kHz
Mic Input to Main Output:
< 0.025% @ +4 dBu output
• Noise:
20 Hz to 20 kHz BW (150 ohms source impedance)
Equivalent Input Noise (EIN): -128 dBu
Residual Output Noise:
Channel & Main Mix levels off
Main, Ctrl Room, Phones: -102 dBu
Aux 1 Monitor out -82 dBu
Aux 2 EFX out -92 dBu
• Common Mode Rejection Ratio (CMRR):
Mic In: 60 dB @ 1kHz, Gain @ maximum
• Crosstalk:
Adjacent Inputs or Input to Output:
-85 dB @ 1kHz
• Input Gain Control Range:
Mic In: +3 dB to +50 dB
Line In: -22 dB to + 25 dB
• Phantom Power:
+48 VDC
• Equalization:
Mono Channel EQ:
High: 15 dB @ 12 kHz
Low: 15 dB @ 80 Hz
Stereo Channel EQ:
High: 15 dB @ 12 kHz
Low: 15 dB @ 80 Hz
• Mixer Rated Output:
Main, Aux, Control Room: +4 dBu
Maximum Rated Output: +18 dBu
• Maximum Input Levels:
Mic Input: +18 dBu, Gain @ +3 dB
Inst Input: +18 dBu, Gain @ -22 dB
Stereo Line Input, Tape Input, and Aux Return: +18 dBu
• Maximum Voltage Gain:
Mic Input to:
Main Output: 74 dB
Tape Output: 74 dB
Aux Sends: 74 dB
Control Room Output: 84 dB
Inst Input to:
Main Output: 49 dB
Tape Output: 49 dB
Aux Sends: 49 dB
Control Room Output: 59 dB
Phones Output: 59 dB
• Stereo Line Input to:
Main Output: 20 dB
Tape Output: 20 dB
Aux Send: 20 dB
Control Room Output: 30 dB
Phones Output: 30 dB
Tape Input to:
Main Output: 10 dB
Tape Output: 10 dB
Control Room Output: 10 dB
Phones Output: 10 dB
• Aux Return to:
Main Output: 20 dB
Tape Output: 20 dB
Aux Send: 20 dB
Control Room Output: 30 dB
Phones Output: 30 dB
• Input Impedance:
Mic Input: 2.3 k ohms, balanced
Inst Input: 1 M ohms
Stereo Line Input: 20 k ohms, balanced
Stereo Aux Returns: 20 k ohms, balanced
CD/Tape In: 24 k ohms, unbalanced
• Output Impedance:
Main, Ctrl Room, Aux Sends: 120 ohms
Tape Output: 1 k ohms
Phones Output: 25 ohms
• Channel Level Set LED (Sensitivity)
0 dBu (normal operating level)
• VU Meters:
Main Left and Right
8 segments:
Clip (+16), +12, +8, +4, 0, -2, -4, -12, -24
0 LED = +4 dBu
• AC Power Requirements:
External Power Supply output:
9.0 VAC @ 1500 mA (2.5 mm AC coaxial power connection)
• External Power Supply AC input:
U.S. 120 VAC, 60 Hz
Europe 240 VAC, 50 Hz
Japan 100 VAC, 50/60 Hz
Korea 220 VAC, 60 Hz
• Physical Dimensions and Weight:
Height: 2.6" (66.7 mm)
Width: 8.3" (209.6 mm)
Depth: 10.5" (266.7 mm)
Weight: 3.5 lbs (1.58 kg)
