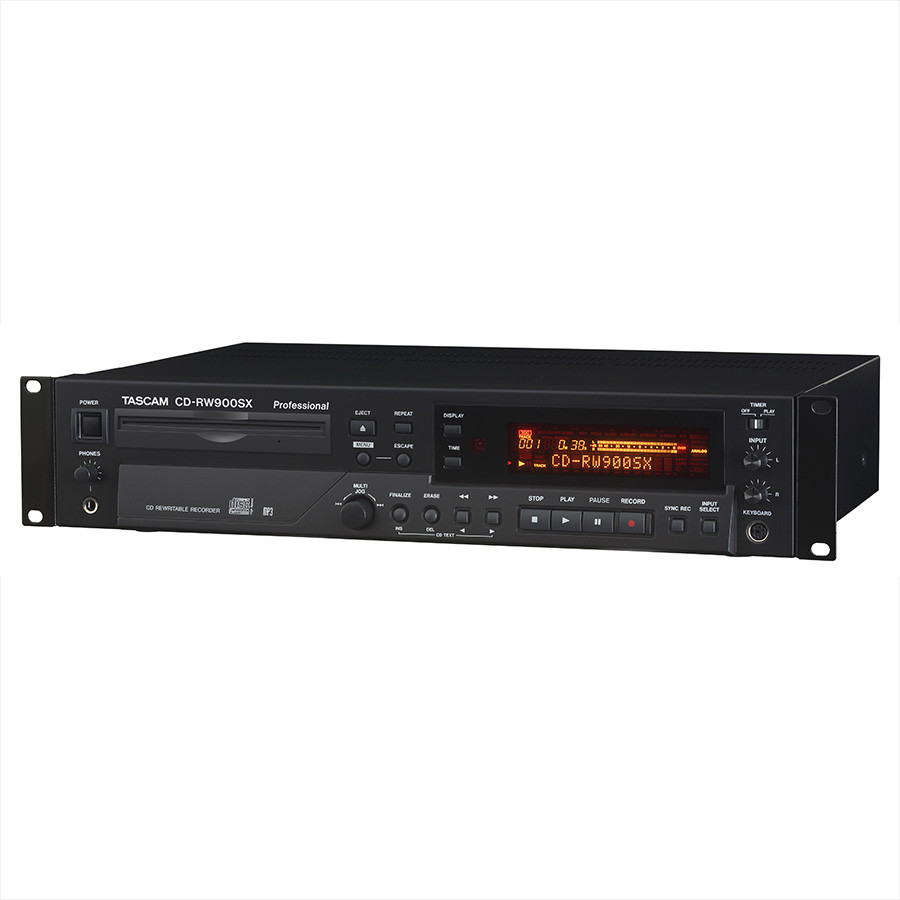

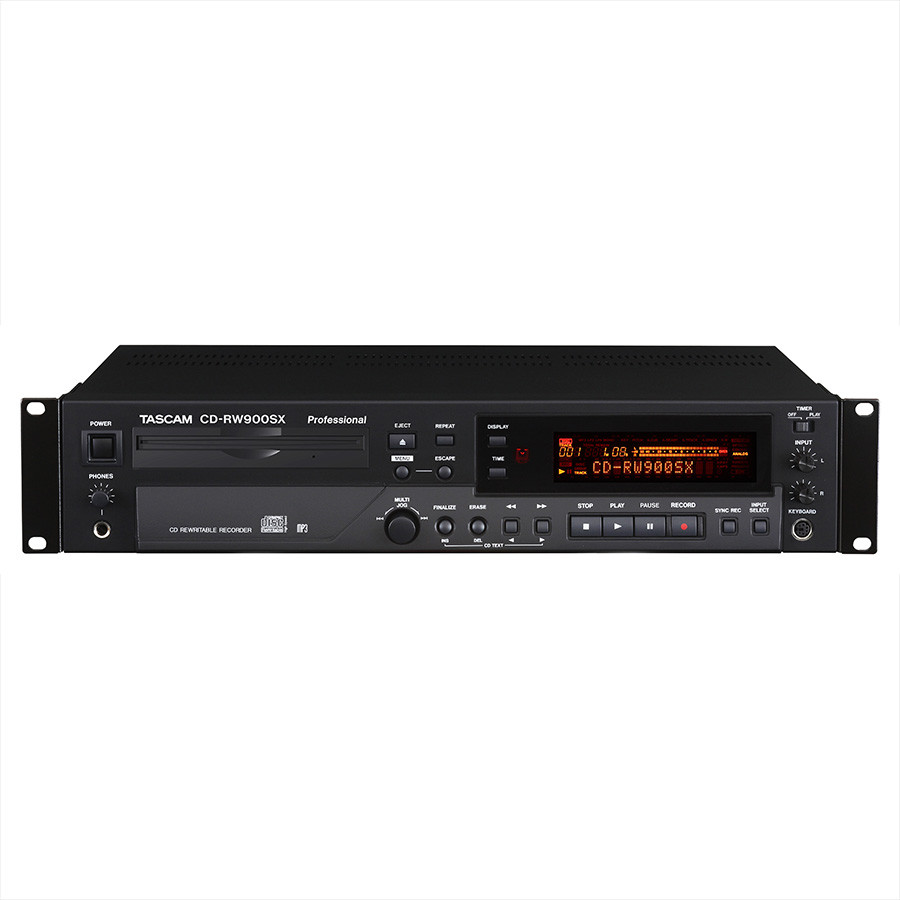

The CD-RW900SX is for professional CD recording and playback applications. As a CD recorder, this includes final mastering, dubbing from any external source, archiving audio and more. As a CD player, applications include music and dialog playback for industrial facilities, retail and business applications, house of worship, retail environments and more. The CD drive is built to withstand constant use and is high in durability and reliability. Other features include rich playback functions that enable the device to be used as professional-level CD player.
Features• Independent input level controls provides versatile level control
• Gapless continuous recording
• Auto cue, Auto ready
• VSA/Pitch/Key control playback
• Power on play
• Supported media: CD-R, CD-R-DA, CD-RW, CD-RW-DA
• RCA analog unbalanced inputs/outputs
• COAXIAL and OPTICAL digital input/output (IEC60958-3:S/P DIF)
Independent input trim controls for Left and Right and Digital Input TrimBoth the left and right analog inputs have their own analog input gain controls. In addition, the digital input can be controlled for optimal recording levels from a digital source.
Selectable Track Division Functions
The CD-RW900SX has a variety of track division functions.
Automatic Track Division
• DD(digital direct)
• Detects a track boundary and divides the track when recording digitally from MC or CD.
• Time (Time track increment)
• Time-based track creation can be set every 1-10 minutes. This method is preferred in some applications like conference recording, or when there is no gap between segments such as recording music.
• Level
• A track marker can be created based on the input level, adding a new track when the input falls below a specified level (from -24 to -72dB).
Manual Track Division
A new track can be written manually by pressing the RECORD key while the unit is in record mode.
Various Other Functions for More Versatility
SRC (sampling rate converter) accepts different incoming frequencies from the coaxial and optical inputs.
Synchronized recording will begin automatically when a signal is received and will stop when the signal ends. The rec mute function allows instant cut-off the input signal and records four seconds of silence on the disc.
Fade-in and fade-out recording and other various useful functions have been added to the CD-RW900SX for more versatility.
Comprehensive Playback Features Create the Ideal Professional CD Player
In addition to recording, the CD-RW900SX is a full-featured and industrial grade CD player. Functions including auto-cue, auto-ready, pitch and key control, power-on playback, repeat function including A-B repeat and single/program/random playback.
Slot-loading Transport With Gapless Continuous Recording
The new transport was designed for audio use not a re-packaged computer drive. Improved firmware allows the transport to write track markers without a gap, for seamless continuous live recordings.

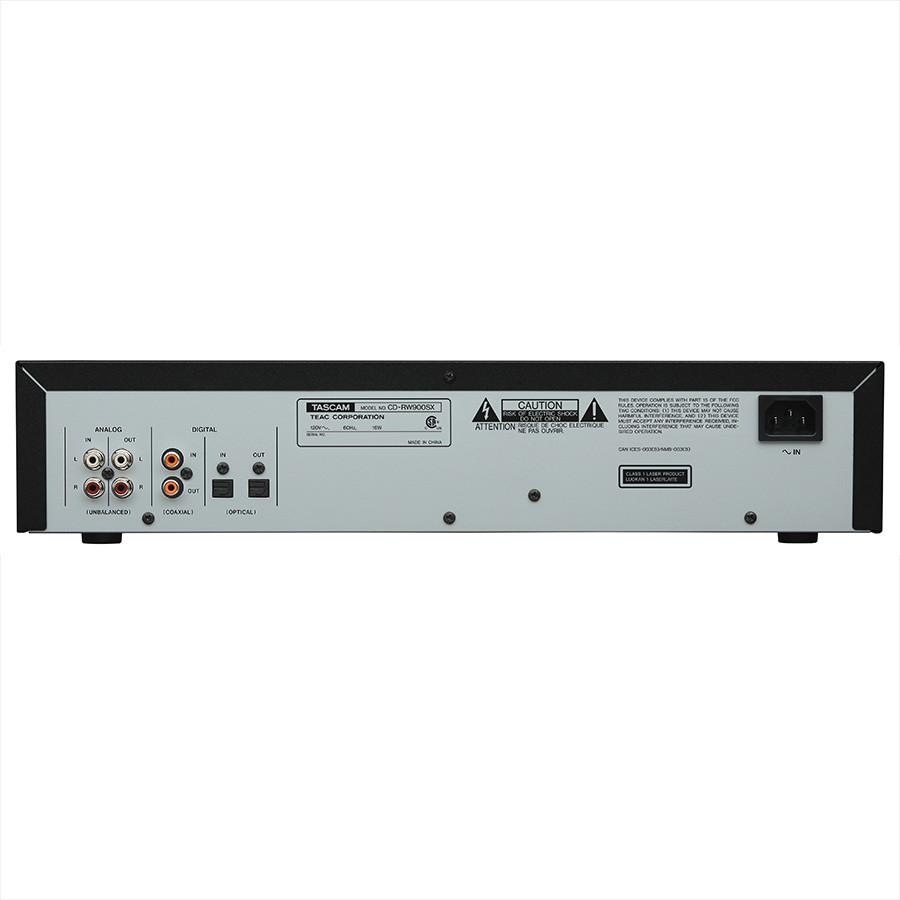

A Selection of Inputs and Outputs to Fit Any System Design
Unbalanced analog and S/PDIF coaxial and optical connections are provided for connection flexibility.
