Tascam CG-1800 Video Sync/Master Clock Generator

Dropships Ships Directly From The Supplier
Tascam can usually ship this item directly to our U.S. customers after 1 to 3 business days processing time, depending upon their stock levels. Order now! We'll notify you promptly if we hear of any delay.
Free Shipping FREE Ground Shipping to the contiguous U.S. (details)
Affirm Financing
Future Pay
    • Buy Now and Earn 3399 PDJ Bucks ($33.99)! Applies only to registered, domestic U.S. customers. Exact value may vary once logged in.

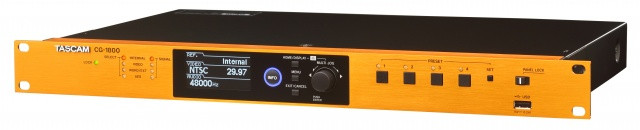

The CG-1800 master clock generator generates NTSC, PAL and HD Tri-level video clock - as well as word clock through BNC, AES/EBU and S/PDIF outputs - ensuring compatibility with any synchronization system. The CG-1800 is designedfor small to large-scale video/audio synchronization systems.

The crystal oscillator is the heart of the clock generator. In each model of the CG Series, an OCXO (oven-controlled crystal oscillator) is used for its high precision, and the fact it is not influenced by the temperature of the environment. Boasting a clock frequency precision of 0.01 ppm*1, which exceeds that of a TCXO (temperature-compensated crystal oscillator), this unit is key in the creation of high-precision synchronization systems - with word output frequency stability of 0.005ppm or less per day.

External clock jitter is reduced using an original TASCAM circuit design that incorporates a high-performance video clock generator engineered with a FPGA*2 and a PLL (phase-locked loop) circuit with a discrete filter. This enables a stable clock signal to be provided to the video/word outputs - improving system stability. The glitch-free relock circuit prevents noise and skipping sounds caused by master clock dropouts.

In addition to (12) word clock outputs and (4) video outputs, the digital outputs include (2) AES3/AES11 and (2) S/PDIF outputs, making this unit useful for large-scale audio/video synchronization systems, and a wide variety of other applications. Of the (12) word outputs, two also support x2Fs, x4Fs and 256Fs output - enabling them to be used in systems with ProTools and other DAW software.

The CG Series has multiple functions to support maintenance, and the identification of issues if problems occur. The analyzer function measures output device termination, input level measurement (for CG-2000 and CG-1800), and the measurement of input frequencies. These built-in features enable the devices to provide troubleshooting support. Additionally, a logging function enables issues to be listed, and saved to a CSV file format on a USB flash drive.

Since crystal oscillators change over time, regular calibration is necessary. In order to avoid possible sync problems, timely inspections - along with regular maintenance is required. The CG Series has a self-correction function, enabling users to conduct maintenance using an external signal input*3 and simple operations.

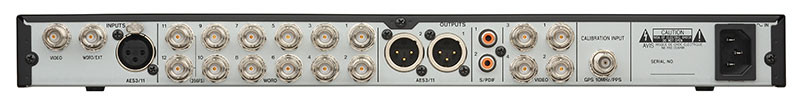

Amphenol BNC connectors on the chassis use nuts for coupling - making them very durable, Also, a single circuit board is used for each connector - providing excellent resistance to the twisting and pulling of cables, and the suppression of interference between connectors.
The CG Series is the latest in the line of innovative TASCAM professional digital products - engineered with the latest digital clocking technology.

• Internal clock uses a high-precision OCXO (oven-controlled crystal oscillator) that is not influenced by the temperature of the environment
• External input connector that supports 10MHz, allowing creation of systems with even higher precision
• Jitter management circuit provides stable clock
• Glitch-free relocking circuit prevents noise and skipping during clock dropouts and recovery
• Numerous output connectors, including (12) word clock outputs, enabling the use in large-scale video/audio synchronization systems
• Supports input and output of a variety of video signal formats, including NTSC, PAL and HD Tri-level
• AES3 and AES11 signals can also be used for external master clock input sources
• Analyzer function that can measure output device termination
• Optimal levels can be provided to other devices by adjusting wordclock output levels
• Self-calibration function using an external oscillator (Atomic/GPS 10MHz, GPS PPS)
• *Use of the self-calibration function requires the use of a separate PPS-output 10MHz oscillator with a built-in GPS antenna.
• Word clock performance up to 192 kHz
• 0.1% pull-up/down for 24F(Film) and 29.97F(NTSC), and 4% pull-up/down for 24F(Film) and 25F(PAL)
• Up to (4) system settings can be saved to buttons for recall, and saved settings can be imported and exported via USB
• Durable nut-coupling BNC connectors made by Amphenol
• Independent circuit boards for each connector prevents contact failures due to twisting
• Three-prong IEC power cable included
• Panel-lock switch can be used to prevent inadvertent changes to unit operation

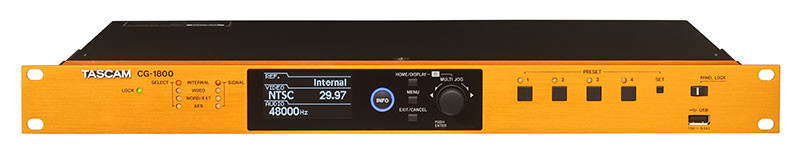

• 128x64-pixel organic EL display with a wide viewing angle
• Firmware updates possible using the USB port
• EIA 1U rack mount size
• RoHS-compliant product
