• Stereo recording to SDHC card or CF card
• PCM recording format: BWF (44.1/48/88.2/96/176.4/192kHz, 16/24bit)
• DSD recording format: DSDIFF/DSF (2.8/5.6MHz)
• SD card slot (supports 4 to 32GB SDHC cards)
• CF card slot (supports UDMA)
• WAV file playback
• Cascade function enables simultaneous operation of multiple units
• Recording 2 mono files from stereo input possible
• Mark functions can be used set up to 99 points per file (mark information can be used in software that supports BWF format)
• When recording, designation of the recording file folder possible
• Synchronized recording using level, stop time and recording start delay time setting
• Input level can be adjusted in 0.5dB step
• Using automatic track incrementing function, new files can be created automatically while continuing to record when a condition (level, file size, digital input) set in advance occurs
• Manual track incrementing function can be used whenever you like to create a new track while continuing to record
• Automatic mark functions can be used to easily check problems (levels, word clock unlocking) detected during recording
• File name format can be set to either a user-defined word or the date and time
• Repeat playback function (all files or single file)
• Folder playback function can be used to play all files in a folder
• Playlist function allows files to be programmed in advance for playback
• Divide and delete functions can be used to manage files that are already recorded
• UNDO function can be used to cancel the previous operation
• USB host port supports copying between USB flash drives and CF/SDHC cards
• File names can be changed
• Direct location possible when a USB keyboard is connected
• Word clock master can be set to Internal, Word input or Digital inputs
• Analog input and output reference levels can be set to -9/-14/-16/-18/-20dBFS
• Digital input has a sampling rate converter (supports 32 to 216kHz)
• Audio files prepared on a computer can be played back (if in a format supported for playback by this unit)
• Oscillator function (440Hz, 1kHz, 10kHz)
• Input monitoring function allows input signals to be output without recording
• Updating is possible
• EI core transformer used in power supply section
• Dual mono circuits eliminate interference between left and right channels
• Fully-balanced circuits realize low noise
• 128x64 OEL display with a wide viewing angle
• 24-dot stereo LED level meters with adjustable brightness make checking levels easy
• TCXO with 1ppm precision
• Backup memory stores settings even when the power is off
• Fanless design eliminates unwanted noise
• Aluminum front panel harmonizes with other studio equipments design

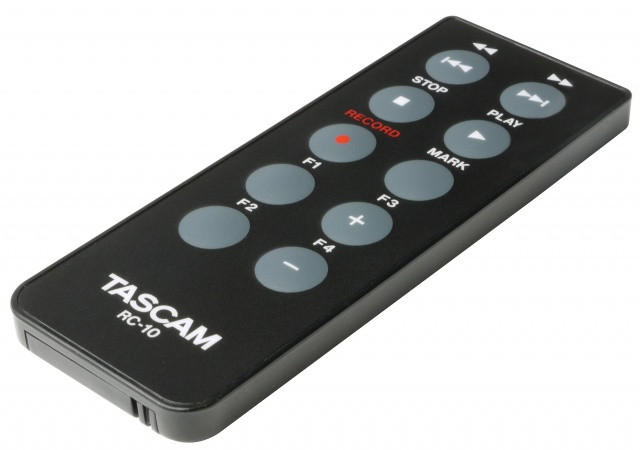

• Operation possible using included RC-10 wireless remote control
• Standard 1/4" headphones jack provides 45mW/ch output
• USB port for USB keyboard (supports USB 1.1)
• USB port for USB flash drive (supports USB 2.0)
• XLR digital input/output (supports AES3-2003 and IEC60958-4:AES/EBU formats)
• RCA Coaxial digital input/output (supports IEC60958-3:S/P DIF format)
• BNC digital input/output for DSD (supports SDIF-3 and DSD-raw formats)
• RCA analog unbalanced input/output
• XLR analog balanced input/output
• EIA 1U rackmount size
• RoHS compliant
* Don't use a wireless remote controller when you use multiple units except using the cascade function.
* Please take 1U or more of blank space above the DA-3000 for ventilation.
