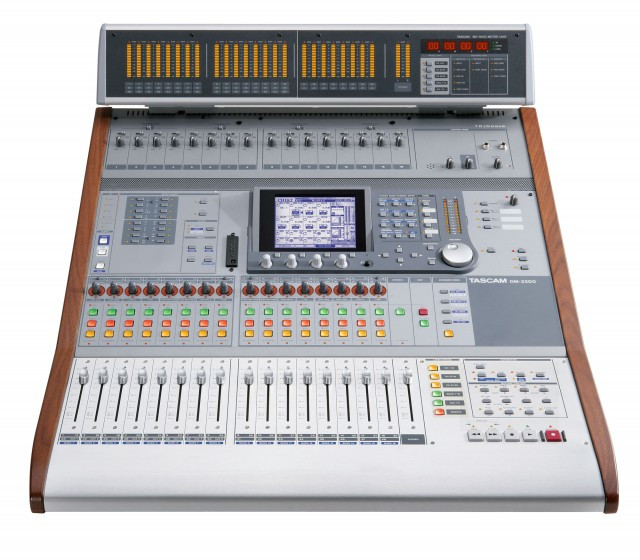

More channels. More inputs. The new TASCAM DM-3200 has more of everything that made the DM-24 a pedigreed studio workhorse. Plus an improved physical interface with per-channel multi-function LED ring encoders, more comprehensive DAW control, vastly improved routing flexibility, easier and robust data backup/ restore, greatly expanded mix storage using compact flash media and much more.
The DM-3200 features 32 full-featured channels and 16 returns for a total of 48 channels at mixdown - even at its full 96kHz / 24-bit audio resolution. It has 4-band fully-parametric EQ and dynamics on every channel and two effects processors, each capable of running the built-in TC Works Reverb processor. Surround mixing is available with up to 6.1-channel panning, and the optional IF-SM/DM expansion card adds surround monitoring and downmixing to the DM-3200.
The DM-3200 provides a new way to record with DAW recording software. With the addition of an optional expansion card, the IF-FW/DM FireWire interface, the DM-3200 becomes a 24-channel computer audio interface, making it a complete studio solution for professional DAW recording. Built-in HUI and Mackie Control emulation allows the console to function as a flexible control surface for workstation software. This gives you the best of both worlds - total control over your recording software transport and mixing capabilities with the cue mixing, talkback, microphone preamps and world-class automation provided by the DM-3200.
FEATURES:• 32 channels and 16 auxiliary returns for 48 total inputs
• 16 busses - configurable as two 6.1 surround sends
• 8 Aux Sends
• 16 analog mic/line inputs with phantom power for condenser mics, analog inserts and -20dB pad switch
• 24 channels of TDIF and 8 channels of ADAT built in
• 2 expansion card slots support optional FireWire, ADAT, AES/EBU, Analog & TDIF cards
• Dedicated cascade port supports cascade of two DM-3200s
• Per channel LED ring encoders for pan, aux sends and EQ
• Built-in DAW control
• All inputs, effects and processing are available at 96k -- no features are sacrificed at full sampling rate
• Transport controls control DAW, HDR or tape playback
• Dedicated DAW control surface layer for Digidesign Pro Tools, Cakewalk SONAR, MOTU DP', Apple Logic, Steinberg Cubase and Nuendo
• Powerful automation with touch-sensitive motorized faders
• 4-band parametric EQ and dynamics on each channel
• 32-bit internal resolution with 64-bit EQ resolution
• Two built-in effects processors include TC Works reverb processing
• Flexible routing - route from virtually any input to any output
• Back up mix data to convenient Compact Flash media slot or to USB
• Optional MU-1000 meter bridge

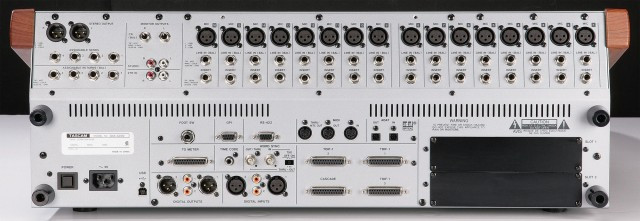

• Stylish, professional design with rear panel I/O connections
• TASCAM Mixer Companion software (Win XP/OSX) with:
-- Driverless USB connection to computer
-- Backup/restore data via USB
-- On screen timecode, transport and meter displays
• Maximum overall dimensions (w x d x h): 27.6" x 32.9" x 9.1" (700mm x 836mm x 230mm)
• Weight 52.8lbs (24kg)
Important Note about CF media for your DM-3200The CF card that came with your DM-3200 mixer has been thoroughly tested and found reliable. Please keep it in a safe place. If the need arises to replace it, the following CF cards have been tested and found reliable (your results may vary):
• Lexar 64MB
• Kodak 4MB
• TDK 8MB
• Nikon EC-8CF (SanDisk) 8MB
• Kodak Picture Card 8MB
• TDK 16MB
• Canon FC-16M 16MB
• Hitachi 32MB
• Delkin Devices DDCFFLS2-128 128MB eFilm
• SanDisk 160M
Please note that CF cards 1GB and larger are not currently supported.
