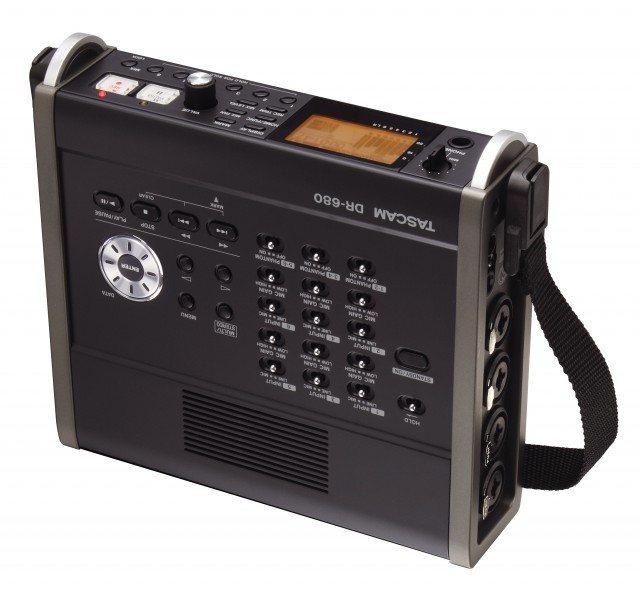

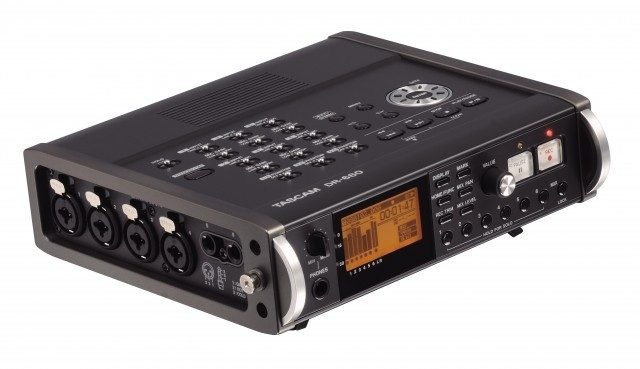

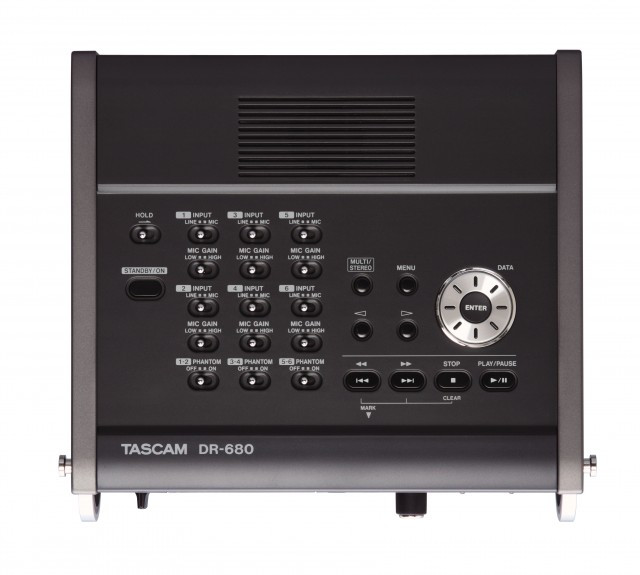

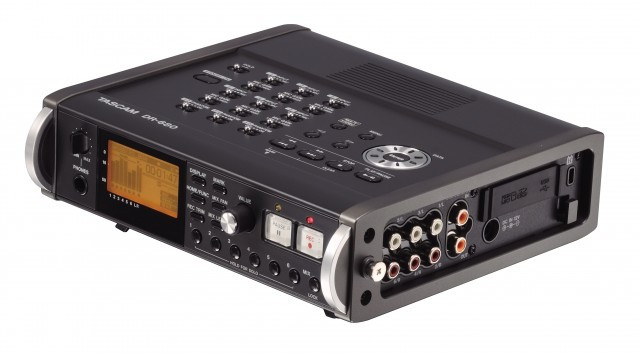

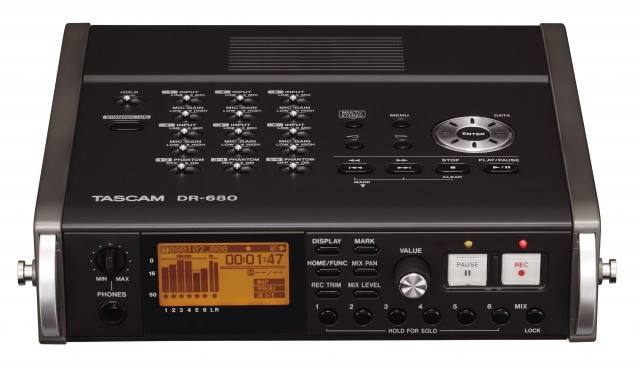

Tascam DR-680 High-Resolution 8-Track Portable Stereo Recorder

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

tascam dr680
tascam dr680 Tascam DR-680 High-Resolution 8-Track Portable Stereo Recorder Tascam DR-680 High-Resolution 8-Track Portable Stereo Recorder Tascam DR-680 High-Resolution 8-Track Portable Stereo Recorder Tascam DR-680 High-Resolution 8-Track Portable Stereo Recorder Tascam DR-680 High-Resolution 8-Track Portable Stereo Recorder
Images may show accessories or configurations not packaged with this item.
TASCAM's DR-680 brings multi-channel portable recording within reach of any musician for polished live, location and surround recordings. Up to eight tracks can be recorded to solid-state SD card media at 96kHz/24-bit Broadcast WAV quality.

Six mic inputs provide phantom power and 60dB of gain for great-sounding recordings with your condenser microphones. Record the six microphones along with a digital S/PDIF source for 8 track recording. Each mic input has a selectable low cut filter and analog limiter for optimal sound.

Inputs can be monitored using a built-in mixer with level and pan controls for each input. The stereo mixdown can even be recorded along with the six mics for quick stereo playback of the event. There's even a built-in speaker to check recordings without headphones.

In addition to WAV recording up to 96kHz, the DR-680 captures stereo audio at 192kHz/24-bit for audiophile-quality masters. The DR-680 records up to four channels of MP3 audio for web-ready recordings. Two of the recorders can be connected with a cascade cable for up to 14-track recording on battery power.
Multi-channel portable recording has never been as simple or affordable as the TASCAM DR-680.

The optional, weather-resistant CS-DR680 case prepares your DR-680 for recording in the field, with velcro straps that reveal only what's needed during recording. A case by PortaBrace is also available.

•8-track portable recording
•Record eight individual inputs or six inputs plus a stereo mixdown
•Up to 96kHz/24-bit Broadcast WAV file resolution for 8 channels
•Stereo 192kHz/24-bit recording mode
•4-channel MP3 recording
•Digital monitor mixing (level and pan) with recordable stereo mixdown
•Mid-side microphone decoding, either during recording or monitor/mixdown
•Ganged input option for use with stereo microphones
•Ideal for surround music and effects recording
•Cascade function for running two units together
•Pre-recording feature
•Auto-recording mode begins recording when the input reaches a certain level
•Mark function during recording/playback
•Edit functions such as divide and delete
•128x64 backlit LCD display
•Powered through (8x) AA batteries or (included) PS-1225L adapter
•Records to SD/SDHC card media (not included)
•Premium AKM Audio4Pro' 192kHz A/D converters with over 100dB signal to noise ratio

•(6) mic pres with 60dB of gain and phantom power
•(4) XLR/1/4" (combi) mic/line inputs and (2) TRS 1/4" mic/line inputs
•Low cut filter and limiter on each input
•(6) RCA unbalanced line outputs
•S/PDIF digital in and out
•USB 2.0 (mini B) connection for computer
•Built-in speaker
•1/4" stereo headphone output
•Included accessories: PS-1225L power supply, shoulder strap
•Dimensions: 7.95" W x 2.12" H x 6.93" D (202mm x 54mm x 176mm)
•Weight 2.65 lbs (1.2kg) without batteries
