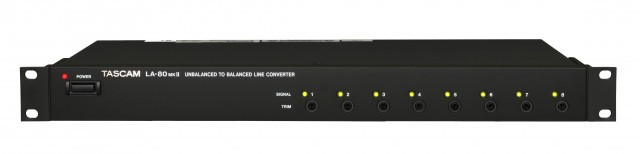

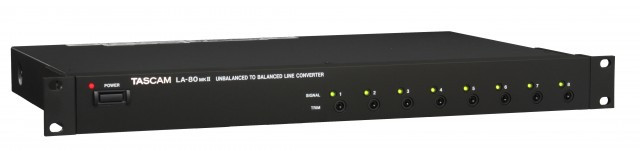

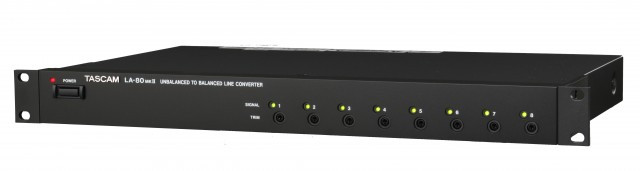

The LA-80mkII is an eight-channel unbalanced to balanced line amplifier, where the LA-81mkII converts eight channels of balanced to unbalanced audio. It includes a 12dB trim control for better matching of levels between components. A signal present LED proves useful during system design and troubleshooting. It is packaged in a black rack case with standard chassis depth for easier wiring. All of this is offered for a lower price than ever before.

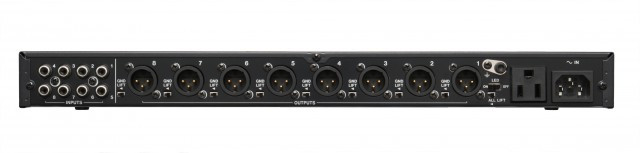

FEATURES:•Unbalanced connectors: RCA
•Balanced connectors: XLR
•Trim control for fine level adjustment of +/- 12dB
•Signal Present LED per channel

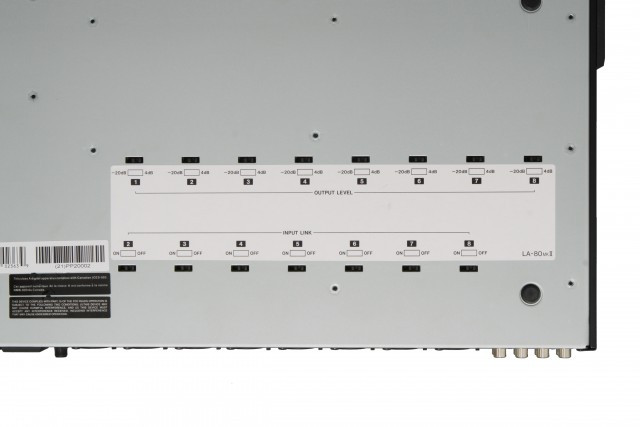

•Input level: +4dBu/-20dBu, Output level: -10dBV, selectable per channel
•Ground Lift switch per channel
•All Lift Switch disables ground connections for entire unit
•Earth terminal
•Dimensions: 19" W x 1.74" H x 11" D (482 x 44 x 280 mm)
•Weight : 6.6lbs (3 kg)
