The US-2400 features 25 touch-sensitive moving channel faders and a touch-sensitive motorized master fader, each with 10-bit resolution for precise level control. Each channel has dedicated select, solo and mute controls.

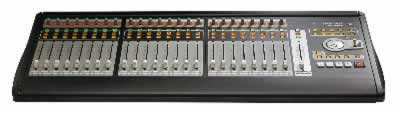

The TASCAM US-2400 is the first DAW fader controller with enough faders to handle a typical recording session and feel like a real mixing console without lots of bank switching. Now you can use your mouse for what it's good at and use a control surface for what it's good at: hands-on mixing with lots of real faders, knobs & buttons.
Twenty-four rotary encoders are provided, selectable to control pan or up to 8 aux sends. Plus, all 24 encoders standard MIDI controller messages for control of plug-in parameters. Each encoder has a ring of LEDs that can display the current setting or double as channel meters during recording and playback. A set of solid-feeling transport buttons are also provided, as well as a shuttle wheel and a joystick for surround panning. Compare it to any other controller on the market today (and the extra expanders you'd have to buy to get 24 motorized faders) and you'll discover that the US-2400 gives you more control for the money.
FEATURES: • Fully-mapped control for Pro Tools, Sonar, Cubase, Nuendo, Logic and Digital Performer
• Twenty-five touch sensitive 100mm moving faders, each with 10-bit resolution
• Select, Solo and Mute keys
• 24 encoders control pan, aux level or channel strip functions like EQ & Aux
• LED ring displays around encoders display parameters or channel meters
• Footswitch jack for punch-ins
• Fader bank switching and In/Out point buttons
• Assignable Function keys can be set to • Autopunch, Record arming, Undo, etc.
• Solid-feeling transport controls
• Smooth Jog/Shuttle wheel
• Compatibility with leading DAW applications like Pro Tools, Logic, Sonar, Cubase, Nuendo, Digital Performer,
TECHNICAL SPECIFICATIONS:• Operating systems
Windows XP
• Macintosh Mac OS X 10.2.8 or above
• Communication USB 1.1 @ 12 MHza
• External power adapter AC input 90 VAC 264 VAC, 47 Hz 63 Hz
• External power adapter DC output 8 V, 5.62 A
• Power consumption 32 W
• Electromagnetic environment E4
• Peak inrush curent 25 A
• Dimensions (w x h x d) 908 x 83 x 387 (mm) 35.75 x 3.25 x 15.25 (in)
• Weight (excluding AC adapter) 9 kg (19.8 lbs)
• Operational temperature 5C to 40C (41F to 104F)
• Supplied accessories AC adapter
• AC power cable: 1.5m (4.5ft) USB cable
