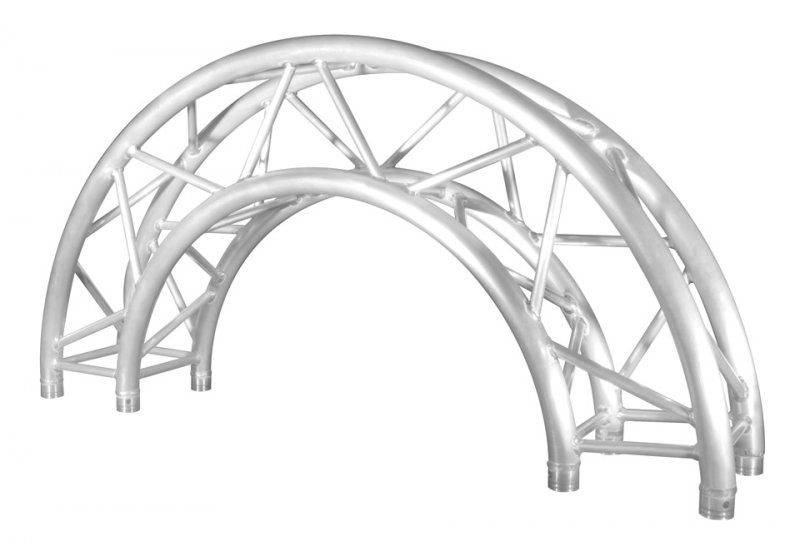

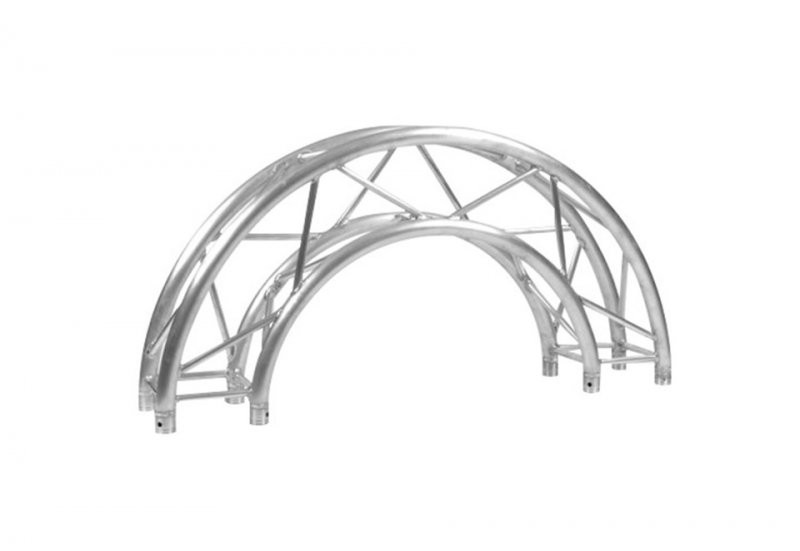

The CT290-415CIR-180 arc truss with an outside diameter of 1.5 meters (4.92 ft) and a 180arc is compatible with many TRUSST accessories and ideal for a multitude of applications and designs when used in combination with TRUSST Sticks, Corners, Base Plates, Accessories and Clamps.
Trusst Arc Quick Reference GuideCAD DrawingFeatures• Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup
• Carefully crafted by SLV-certified welders
• Compatible with many TRUSST accessories to create an astonishing and custom presentation

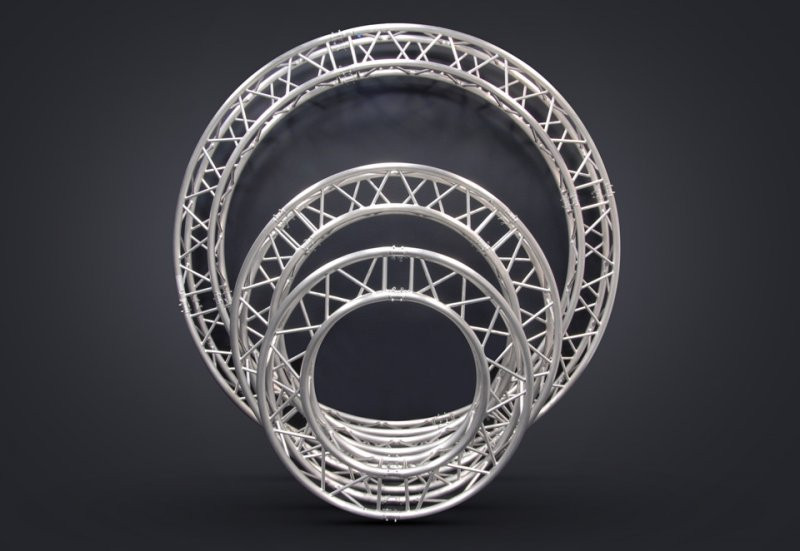

• Available in different sizes for mobile entertainers, productions, nightclubs and retail stores
• Includes connecting hardware
Specifications• Outside diameter: 4.92 ft (1.5 m)
• Inside diameter: 3.28 ft (1 m)
• Arc: 180
• Outer diameter tube: 2 in (50 mm)
• Diagonal bracing: 0.75 in (20 mm)
• Wall thickness: 0.08 in (2 mm)
• Weight: 21.6 lb (9.8 kg)
• Approvals: SLV
