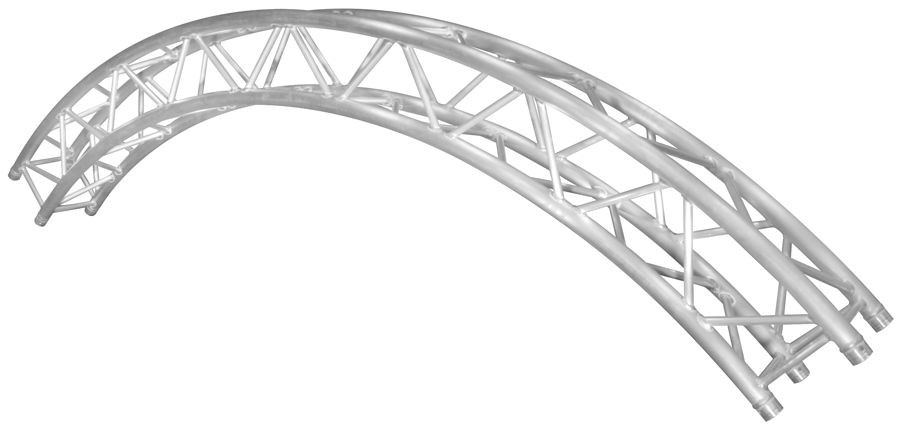

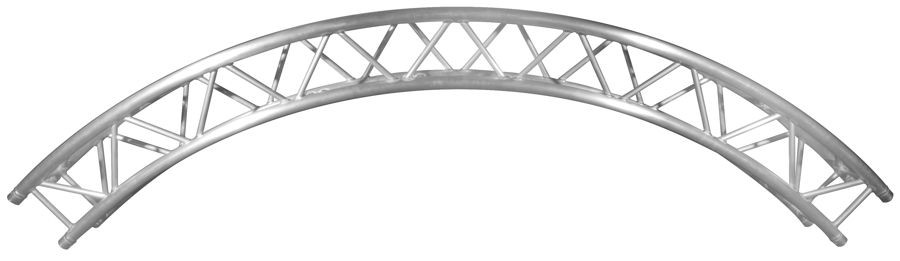

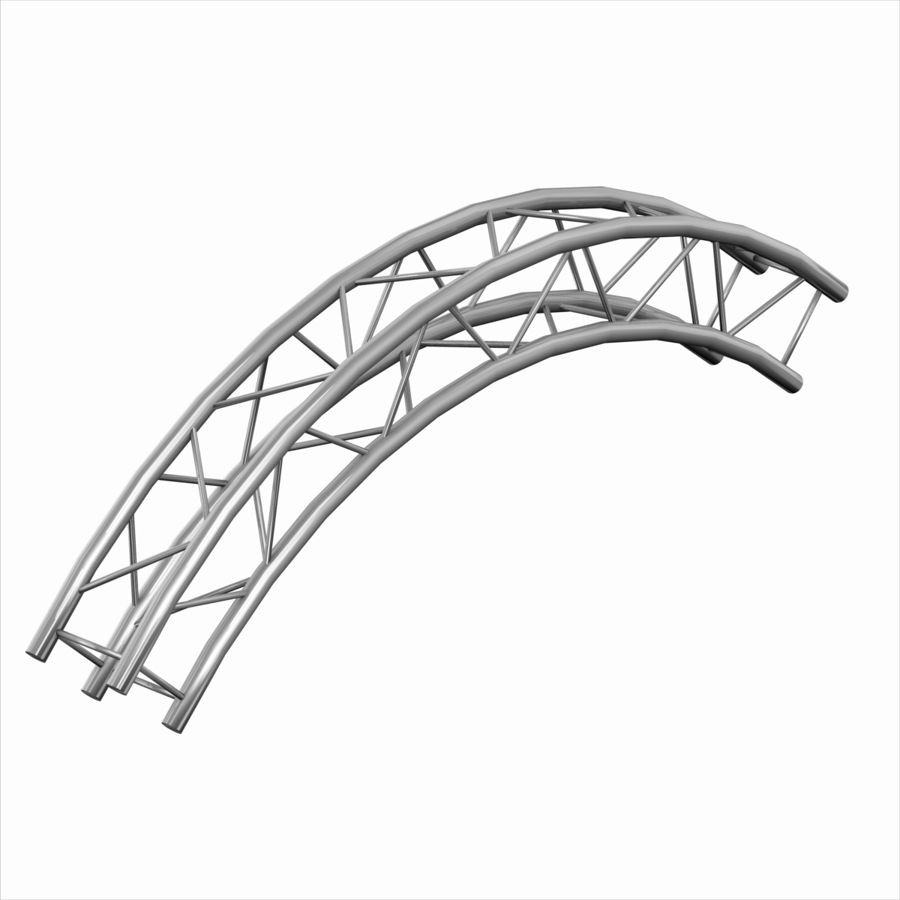

The CT290-430CIR-90 arc truss with an outside diameter of 3.0 meters (9.84ft) and a 90 arc is compatible with many TRUSST accessories and ideal for a multitude of applications and designs when used in combination with TRUSST Sticks, Corners, Base Plates, Accessories and Clamps.
Trusst Arc Quick Reference GuideCAD DrawingFeatures• Manufactured from high-grade and lightweight aluminum which is easy for transportation and setup
• Carefully crafted by SLV-certified welders
• Compatible with many TRUSST accessories to create an astonishing and custom presentation

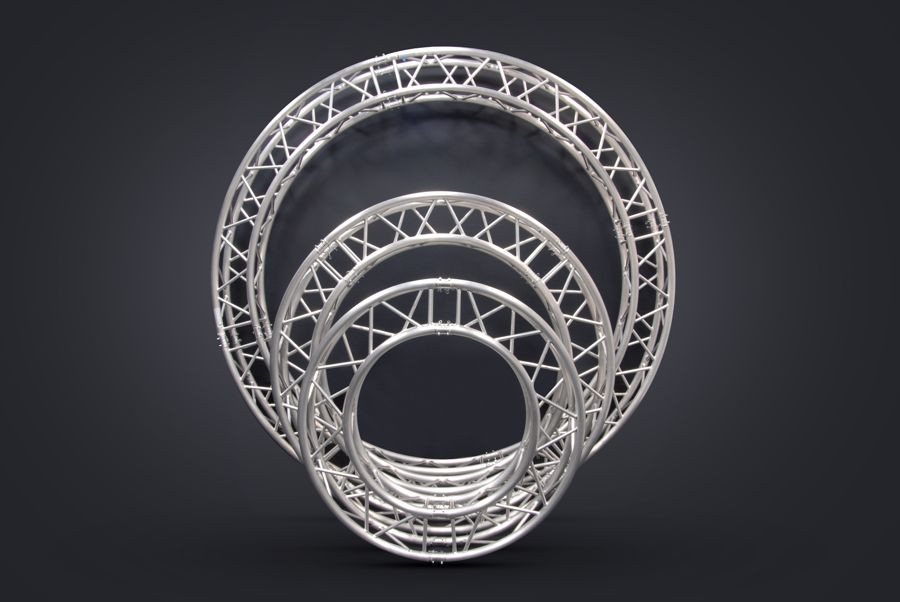

• Available in different sizes for mobile entertainers, productions, nightclubs and retail stores
• Includes connecting hardware
Specifications• Outside diameter: 9.84 ft (3 m)
• Inside diameter: 8.20 ft (2.5 m)
• Arc: 90
• Outer diameter tube: 2 in (50 mm)
• Diagonal bracing: 0.75 in (20 mm)
• Wall thickness: 0.08 in (2 mm)
• Weight: 28.6 lb (13 kg)
• Approvals: SLV
