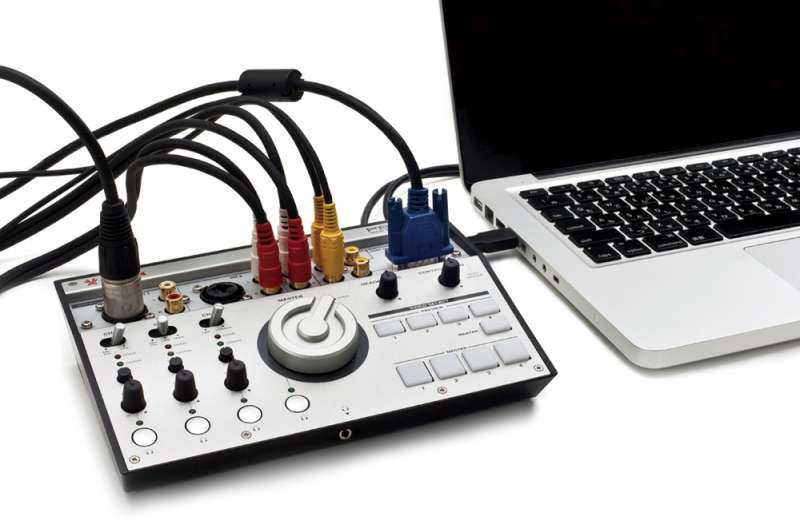

The PBS-4 is an easy to use all-in-one solution to broadcast live audio and live video sources on the internet. Multiple audio and video sources can be mixed together, and instantly streamed online towards a world wide audience. The USB output feeds the mixed audio and video to your computer and streams your content to any live streaming service including Ustream, Justin.tv, Livestream and more.
VIDEO

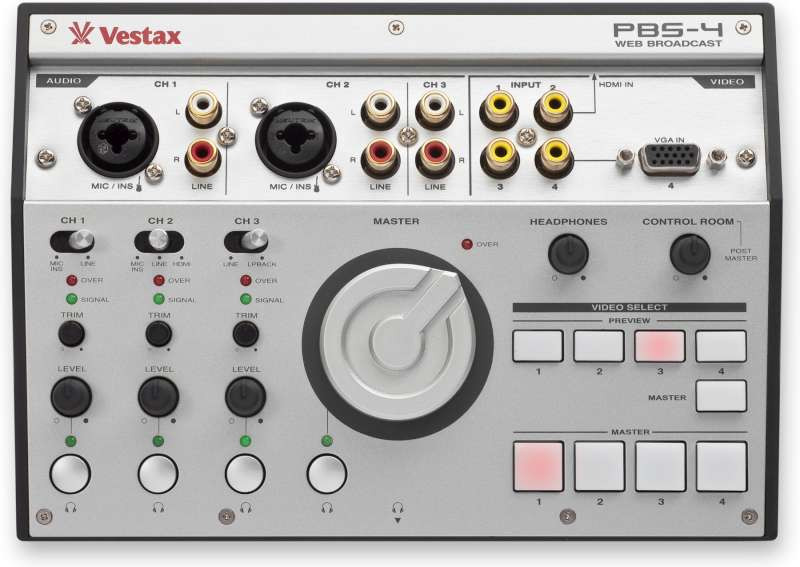

The PBS-4 is compact, travel friendly, and features a wide range of connections for your audio and video sources.
The simple interface and the quick setup features make the PBS-4 ideal for musical performances, live bands, DJs with video mixes, corporate events, seminars, e-learning, video game tutorials, church events, wedding parties, home TV studios, web radios and for any content you want to share live online. The PBS-4 can also be used together with an audio and video capture software, to record your live content.
INPUT • x3 LINE IN Stereo RCA
• x2 Neutrik Combo Jack (Mono)
• x1 HDMI IN
• x1 USB IN (Loop Back)

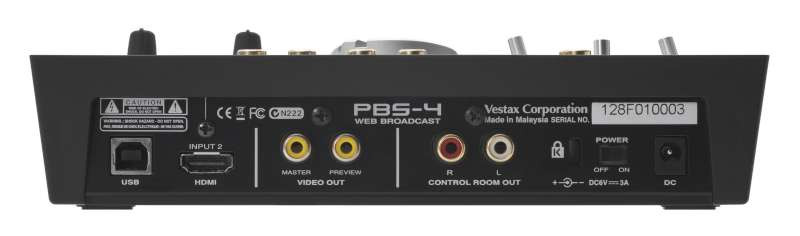

OUTPUT • x1 Master Output Stereo RCA (Control Room)

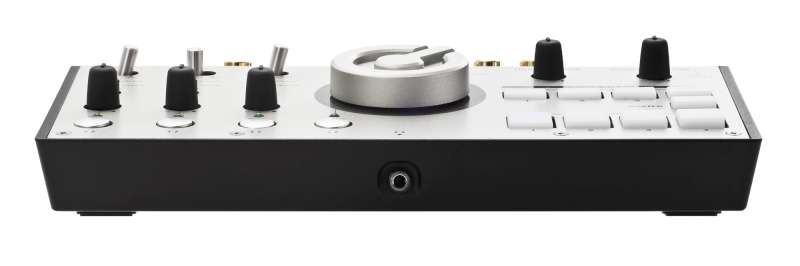

• x1 1/4" Headphone Jack
VIDEO SPECIFICATIONS INPUT • x4 VIDEO IN (Composite RCA)
• x1 VGA IN(D-SUB15 pin)
• x1 HDMI IN
OUTPUT • x2 MASTER OUT (Composite / USB)
• x1 PREVIEW OUT(Composite)
VIDEO RESOLUTION • Composite: NTSC / PAL
• VGA IN (NTSC) : 1024768 (60Hz)
• VGA IN (PAL) : 1024768 (50Hz)
• HDMI IN (NTSC): 720480 (60Hz) *480p
• HDMI IN (PAL) : 720576(50Hz)*576p
SAMPLING RATE • 4:2:2 (Y:R-Y:B-Y), 8-bit, 13.5 MHz (ITU-R BT.656)
INPUT/OUTPUT LEVEL • Composite: 1.0 Vp-p
• Impedance: 75 ohms
USB • Class: 2.0
• Video Output Resolution: 720x480 (NTSC), 720x576 (PAL)
• Audio ADC: 16bit/48kHz
• Power Supply DC-6V 3A (Vestax SDC-6)
• Power Consumption 7W (AC100V - 230V)
Dimensions -210(W) x 147(D) x 45(H)mm (excluding knobs)
-210(W) x 147(D) x 54(H)mm (including knobs)
-Weight 950g
