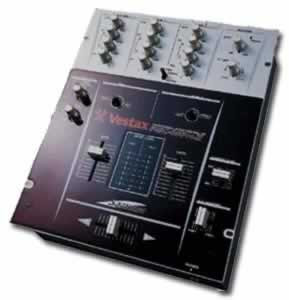

Incredible digital crossfader with curve control! Selectable position input transformer switch can be adjusted 8 different ways to suit the mixing style of most any DJ.
FEATURES:• Mixing instrument, 2/4 channel with
2 phono and 2 line inputs.
• Digital crossfader
• Double Panel design with hidden features
• Switchable input fader curve
• User replaceable input fader
• Monitor crossfader for PFL mixing
• Studio type PCB layout
SPECIFICATIONS:• INPUT:
Phono inputs: stereo (RIAA -42dBv;
RCA) x 2;
Line inputs: stereo (-10dBv; RCA) x
Mic. inputs: (-54dBv; Jack 1/4 inch) x
• OUTPUT:
Line out: stereo (-7dBm; RCA) x 2;
Monitor headphone out: stereo
(58mW; Jack 1/4 inch).
• CHANNEL: 2/4 Channels; (2 stereo,
2 mono);
Channel 1 + 2: Input switch (multi
position transformer switch) phono/
line; Input trim; 2-band equaliser low +/
-12 dB, high +/-12dB; Bal. L-R; Signal
input level LED bar display; Input fader
(User replaceable); 3-position curve
selector switch.
Channel 3+4 (Mic): Volume control
(each); 2-band equaliser low +/-12dB,
high +/-12dB.
• MASTER: Output level control;
• Monitor: Monitor level fader; Monitor
selector fader: Ch1-Ch2;
• Crossfader: User presetable digital
crossfader; Channel 1-2;
Curve pattern switch, 4-position;
Fine c u rv e control sw i tc h, 8-position;
Crossfader reverse switch.
• FREQU. RESPONSE: 25-25000 Hz
+/- 3dB;
• S/N RATIO: >75 dB THD:< 0,01%
• DIMENSIONS: (WxHxD) 262 x 108
x 320 mm;
• WEIGHT: 3,6 Kg
• POWER SUPPLY: Vestax DC-15A
