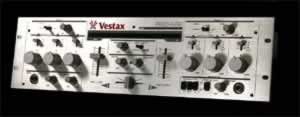

This ultra slim mixer is perfect for House or mobile DJs. You can cut or fade frequency ranges quickly, accurately and easily with full 3 band isolators on each channel. Perfect for those situations where space is an issue and installation is easy too!
SPECIFICATIONSINPUT:
• Phono inputs Stereo (RIAA -42dBv; RCA) x 3
• Line inputs Stereo (-10dBv; RCA) x 5
• Microphone, Inputs (-50dBv; Jack1/4") x 1
OUTPUT:
• PA out Stereo (0dBv / -10dBv switch able; XLR balanced)
• Line out Stereo (-10dBv; Jack1/4" unbalance.)
• Booth out Stereo (-10dBv; Jack1/4" unbalance)
• Monitor headphone out Stereo (130mW; Jack 1/4")
CHANNEL:
• 3/4Channels; (3 stereo, 1 mono)
• Channel 1+ 2
• Input switch: phono / line / line; Input trim control; 3-band isolator type equalizer: high +4/-85dB, mid +4/-85dB, low +4/-85dB; 3-band cut-fader with peak LED: high, mid, low; channel fader.
• Channel 3 (Aux.)
• Channel vol.
• Channel 4 (Microphone)
• Channel vol.; Channel tone filter.
MASTER:
• Output level control; Both out level control; Stereo output level LED bar display; Select switch: Master program
• Monitor
• Phones level; Cue selector switches: CH 1; Aux; • CH2; Stereo cue switch: on/off.
• Cross-fader PCV; Channel 1- 2
FREQU. RESPONSE:
• 20-20000 Hz +/-1dB
S / N RATIO:
• >75 dB THD: <0.01%
DIMENSIONS:
• (W x H x D) 482 x 138 x 132 mm (19" 3U)
WEIGHT:
• 4.0Kg.
POWER SUPPLY:
• Vestax AC-12A
ACCESSORIES / USER REPLACEABLE PARTS:
• Input fader; IF-25
• Cross fader; CF-PCV
