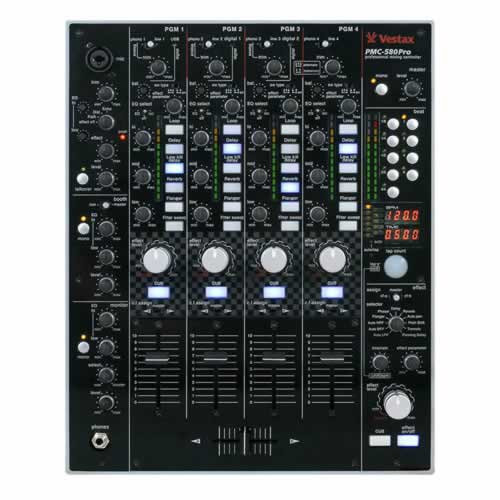

Vestax PMC-580PRO Professional 4-Channel Club DJ Mixer

This Item Has Been Discontinued
Or Is No Longer Available.

This information only remains here as a reference
for those who need information on this product.

Planet DJ is a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for sites to earn advertising fees by advertising and linking to

vestax pmc580
A scion of the PMC-50, the 24bit full digital mixer of the next generation is now here.A multi effecter and LOOP control individually equipped on each program channel along with an effect unit for the MASTER and MIC channel section. The significant layout of the buttons and knobs of the PMC-580Pro enable DJs to control 6 different effects and different parameters all at once. The PMC-580Pro also comes with USB connection, SPDIF digital IO, a new AD/DA analog circuit and 2 band EQ for monitor/booth output as an answer to the demands of NEXT STYLE DJs in the scene.

6 program multi effecters to garnish the mix and DJ performance. Each program channel has a 6 effect multi effecter with simple controllability, in addition to effects equipped in the MIC and MASTER section. A maximum of 6 different effects can be applied to the sound at the same time, powered by 5 DSPs (Digital Signal Processor) and 3 CPUs, the core parts which make such features possible to be performed. MIC EFFECTER / 3 EFFECTS• Pitch Shift• Distortion• MIC Echo MASTER EFFECTER / 11 EFFECTS• AUTO LPF (Low Pass Filter)• AUTO BPF (Band Pass Filter)• AUTO HPF (High Pass Filter)• FLANGER• PHASER• DELAY• REVERB• AUTO PAN• PITCH SHIFT• TREMOLO• PANNING DELAYPGM CH EFFECTER / 6 EFFECTS• LOOP• DELAY• LOW CUT DELAY• REVERB• FLANGER• FILTER SWEEP Intuitive effect operation The PMC-580Pro's effects can be operated with 2 different effect switch modes.Useful for when you want instant effects on short phrases. The effect will be applied to the sound only while the effect button is pushed. Useful for when you want to apply effects in to a long mix. The effect will be applied to the sound once the effect button is pushed, and will continue to be until the effect button is pushed again. Some effects apply to the sound differently regarding the selected effect switch mode High quality design for supreme CLUB soundThe PMC-580Pro is loaded with 5 high spec DSP chips. 3 to process effects and 2 for mixing sound signals.The Enhanced Dual Bit method, a high performance chip technology of ASAHIKASE is applied to the AD/DA section of the PMC-580Pro, where sound signals are converted between digital and analog. (48 kHz/ 24bit)The PMC-580Pro is generated by a high capacity institutional power adaptor, which gains the heavy low groove required for supreme CLUB sound. The internal power supply which produces the sound signal circuit runs on +/-18V. With the two combined, +/-24dB of headroom is produced (analog output), creating dynamic sound. HI GAIN TRIM control circuit is a new feature designed to bridge the gap between digital media, MP3s and CD source sound levels. EQ / ISOLATOR select switchAn EQ/ISOLATOR select switch is located on each program channel to enable DJs to select their preference sound adjustment method in regards of the music they play. BEAT KEYBEAT KEY is a feature which operates simultaneously with the auto BOOM counter and TAP BPM counter.BEAT KEY will control the effects BPM along with the detected BPM of the playing track, selected from: 8, 4, 2, 1, 3/4, 2/3, 1/2, 1/4 and 1/8.BPM controllable effects:LOOP / DELAY / LOW cut DELAY / FLANGERAUTO HP, BP, LP / FLANGER / PHASER / DELAY/ AUTO PAN / TREMOLO / PANNING DELAY INPUT/OUTPUT The two 44.1k, 48kHz sampling rate digital inputs enable digital connection and provide a sound system with no sound deterioration.Digital music files can be played from computers and tracks can be recorded to computers via USB input/output, a standard feature for digital mixers. (The USB circuitry of the PMC-580Pro utilizes the driver device within the operating system of the computer and does not require any specific driver to be installed) OPERATION Smooth 60mm input faders for high precision mixing. The reliable Vestax CF-PCV is applied as the cross fader together with fader curve control, suitable for mixing and scratching.The top panel layout is designed considering the DJ to play intuitively without mixing up the effect section and sound control section during club performance.Large effect knobs for dynamic effect control.Input faders and the cross fader can be easily replaced by detaching the section top panel. OPTION The DX panel, an option item to increase inputs and outputs can be installed to the front panel for DJs who to wish to use DJ software with the PMC-580Pro. CLUB DJ FEATURES 2 Band EQ, STEREO / MONO select switch and CUE / MASTER select on BOOTH OUT and headphones to support the DJ when theyfre in the mix.The MIC section comes with a 2 Band EQ and TALKOVER switch for advanced mic performance.Club standard XLR connection applied to MASTER // BOOTH OUT. MIC EFFECTER <3 convenient mic effects >PITCH SHIFTModulates the mic sound within +/-1 octave and changes the voice to a high/low pitch.DISTORTIONDeteriorates the mic sound and creates a distortion effect.MIC ECHOApplies an echo effect to the mic sound.

Additional Information

Product ConditionNew - On Clearance
