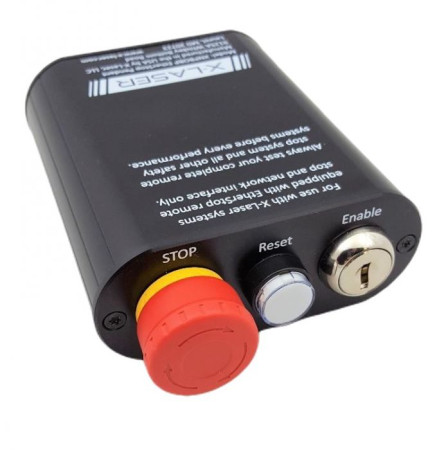

This is our remote e-stop that is used for disabling Mercury equipped lasers via a shutoff button, with an integrated key switch and reset button. It's a simple solution for safety and compliance. Our E-stop is configured for EtherCON RJ45 connectivity.
The etherStop pendant has 3 etherCon connectors. These provide connections for:
•
Network - this connector is for data input (Art-Net or SACN) from your control source
•
Laser - etherStop LASER control out (green connector). This connector carries the combined emergency stop signal, reset signal from the pendant itself and the Remote connector and the data injected from the Network connector. If the laser is being controlled through DMX or ILDA only and not using network data for laser control this will only carry the emergency stop and reset signals
•
Remote - this connector provides expansion to a secondary control location for additional safety if the show requires it. If no secondary control location is required, insert the etherStop terminator into this port. Otherwise, connect this port to the Laser port of the secondary control, and insert the terminator in the Remote port of the secondary control. A total of up to five pendants, including the primary pendant may be daisy chained in this manner.
